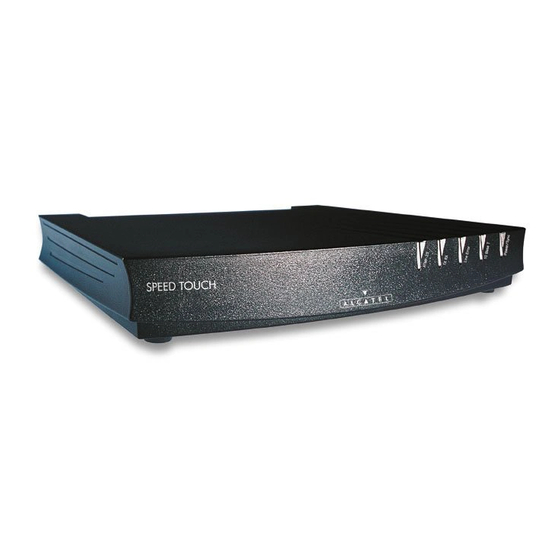

SPEED TOUCH
HOME
User's Guide
3EC 17058 AAAA TCZZA Ed. 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEED TOUCH HOME and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel SPEED TOUCH HOME

Summary of Contents for Alcatel SPEED TOUCH HOME

  • Page 1 All manuals and user guides at all-guides.com SPEED TOUCH HOME User's Guide 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 2 BD F aa 31244 Change Note Short Title CD-UG STHome All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. 2 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 3 All manuals and user guides at all-guides.com Contents Contents Speed Touch Installation Guide ........Get Acquainted with your Speed Touch .

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com Contents Maintenance - Speed Touch Software ....... . Maintenance - Speed Touch Password .
  • Page 5 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Introduction The Alcatel Speed Touch Home DSL modem provides high speed access to the Internet for fastidious home users. For optimal Local Area Network (LAN) performance the Alcatel Speed Touch Home includes a comprehensive set of features, as there are static IP routing, a DHCP server and DNS server.
  • Page 6 Plain Old Telephone Service (POTS) (**) Integrated Services Digital Network (ISDN) Terminology For readability, the Alcatel Speed Touch Home will be referred to as STHome in this User's Guide. Safety instructions Prior to connecting the Alcatel Speed Touch Home, read the Safety Instructions in appendix D.
  • Page 7 All manuals and user guides at all-guides.com Trademarks The following trademarks are used in this document: Speed Touch is a trademark of the Alcatel Company " Netscape and Netscape Navigator are registered " trademarks of Netscape Communications Corporation Windows and Internet Explorer are trademarks of "...
  • Page 8 All manuals and user guides at all-guides.com User's Guide updates Due to the continuous evolution of the Alcatel DSL technology, existing products are regularly upgraded. Alcatel documentation changes accordingly. For more information on the newest technological changes and documents, please consult the Alcatel web site at following Uniform Resource Locator (URL): http://www.alcatel.com...
  • Page 9 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Quick Guide 9 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 10 All manuals and user guides at all-guides.com 10 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 11 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide 1 Speed Touch Installation Guide Aim of this Quick Guide Use this chapter to quickly connect your STHome. In this chapter Topic Get Acquainted with your STHome STHome Installation 11 / 104 3EC 17058 AAAA TCZZA Ed.
  • Page 12 1 Speed Touch Installation Guide Get Acquainted with your Speed Touch Delivery check Check your STHome package for the following items: The Alcatel Speed Touch Home " 1 Power supply adapter with 2m (6.56ft.) connecting cable " 2m Cat.5 straight through Ethernet/ATMF cable (RJ45/RJ45) "...
  • Page 13 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide The STHome The STHome is presented in a slim line box: Five front panel LEDs The STHome is equipped with 5 LEDs on its front panel, indicating the state of the device: Indicator Description Name...
  • Page 14 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide STHome models Two STHome models can be identified: The single 10Base T Ethernet port STHome model: " Power Push Line Switch button Port Ethernet Port Power Socket The dual port STHome model with both 10Base T Ethernet "...
  • Page 15 The marking label is similar to the example below: MODEL NUMBER: CP992300XXX 3EC 18204BC Speed Touch Home NT Tested to Comply with FCC rules Part 15 and Part 68 FOR HOME OR OFFICE USE PART OF A SYSTEM THAT IS COVERED IN WHOLE OR IN FCC ID: 6VUBEL–35680–DL–N...
  • Page 16 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide Speed Touch Installation Aim of this section Use this section to install your STHome. In this section Topic What you Need 1.2.1 STHome Wiring 1.2.2 STHome Power On/Off Behaviour 1.2.2 16 / 104 3EC 17058 AAAA TCZZA Ed.
  • Page 17 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide 1.2.1 What you Need DSL service Depending on the STHome variant you purchased, the following DSL service must be available at your local premisses: ADSL/POTS " ADSL service must be enabled on your POTS telephone line. ADSL/ISDN "...
  • Page 18 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide 1.2.2 STHome Wiring Wiring procedure Proceed as follows: 1. Use the included LAN cable to wire your PC's Ethernet port to STHome's Ethernet interface. 2. If you have a dual port STHome you can use the included LAN cable to wire your PC's ATMF 25.6 port to the STHome's ATMF 25.6 port.
  • Page 19 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide Single PC wiring Using a hub you can connect multiple PCs to your STHome: MDI X 10 Base T MDI X MDI vs. MDI X hub In the above figure an MDI X port on the hub connects to the STHome.
  • Page 20 All manuals and user guides at all-guides.com 1 Speed Touch Installation Guide 1.2.3 STHome Power On/Off Behaviour Turn on your STHome Once all previous steps are completed, you can turn the STHome on ( ) or off ( ) with the power switch. POST phases As soon your STHome is turned on, you can check the PWR/Alarm"...
  • Page 21 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2 Speed Touch Configuration Guide Aim of this Quick Guide Use this chapter to quickly configure your STHome for Internet connectivity. In this chapter Topic Check your PC configuration Check your SP's Service Offerings STHome Configuration 21 / 104...
  • Page 22 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide Check your PC Configuration PC requirements This User's Guide presents typical configurations based on PC(s) with following basic configuration: The PC's Operating System (OS) supports the TCP/IP protocol "...
  • Page 23 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide Check your SP's Service Offerings Service Offering The SP provides at least the following information: The VPI/VCI of the Virtual Channel (VC) to use on the DSL " line The Packet Service supported on this VC "...
  • Page 24 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide Speed Touch Configuration In this section Topic STHome Web Interface Access 2.3.1 STHome Packet Services 2.3.2 Transparent Bridging Packet Service Configuration 2.3.3 Bridged PPPoE Packet Service Configuration 2.3.4 PPPoA to PPTP Relaying Packet Service Configuration 2.3.5 Advanced STHome Configuration...

  • Page 25: Sthome Web Interface Access

    All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2.3.1 STHome Web Interface Access STHome access The STHome features well chosen defaults. Therefore, in most cases no additional configuration is needed for immediate Internet connectivity. In exceptional cases additional or advanced configurations are desired, the STHome offers a user friendly web interface.
  • Page 26 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide Menu frame Each button on the left side of the STHome pages represents a components STHome configuration page, yielding all configurational possibilities related to the menu subject. Following buttons are available: Click this button To ...

  • Page 27: Sthome Packet Services

    All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2.3.2 STHome Packet Services What is a packet Packet services are the core functions of the STHome. They provide that frames or packets get forwarded from the LAN side towards service ? the DSL line and vice versa.
  • Page 28 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide Transparent Bridging The STHome IEEE802.1D Transparent Bridging packet service (further referred to as Bridging) offers complete protocol transparency and has inherent configuration simplicity. Yet it provides excellent forwarding performance. PPPoE PPPoE is one of two popular mechanisms to get in touch with the SP .

  • Page 29: Transparent Bridging Packet Service Configuration

    All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2.3.3 Transparent Bridging Packet Service Configuration Bridging configuration Per default, following Bridging entry is preconfigured: (Bridge on 8.35) " In case this Bridging entry does not meet your requirements, you can configure a new one as follows: 1.

  • Page 30: Bridged Pppoe Packet Service Configuration

    All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2.3.4 Bridged PPPoE Packet Service Configuration Bridged PPPoE As the Bridged PPPoE packet service implies nothing more than using the STHome Transparent Bridging packet service, no configuration specific configuration for Bridged PPPoE is required on the STHome.

  • Page 31: Pppoa To Pptp Relaying Packet Service Configuration

    All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 2.3.5 PPPoA to PPTP Relaying Packet Service Configuration PPPoA to PPTP Per default, following PPTP phonebook entries are available for PPPoA/PPTP connections: Relaying configuration RELAY_PPP1 (PPTP on 8.48) "...
  • Page 32 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide PPTP connection During the initial configuration of your PPTP connection icon, you parameters must provide the following parameters: A name for the PPTP connection icon " The VPN server's IP address or DNS hostname, i.e. the "...

  • Page 33: Advanced Sthome Configuration

    User's Guide. However, in case you want to explore STHome's possibilities and interfaces in deep, you can always consult other Alcatel Speed Touch DSL product's User's Guides available from Alcatel's Support website at: http://www.alcatel.com...
  • Page 34 All manuals and user guides at all-guides.com 2 Speed Touch Configuration Guide 34 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 35 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Configuration 35 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 36 All manuals and user guides at all-guides.com 36 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 37 Transparent Bridging is the packet service of your choice as it: Is platform and OS independent " Is true multiprotocol " Has no performance limitations in the Alcatel implementation " Has almost no constraints on the number of attached users. " Bridged PPPoE The STHome transparent bridge can be used in combination with a PPP over Ethernet (PPPoE) client installed on your PC.
  • Page 38 All manuals and user guides at all-guides.com 3 Configuration - Bridging and Bridged PPPoE Tables The 'Bridging Ports' table indicates all currently configured Bridging entries and allows to add or delete entries. The 'Aging' box indicates the aging timer of the bridge internal database.
  • Page 39 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying 4 Configuration - PPPoA to PPTP Relaying Introduction PPPoA to PPTP Relaying(*) is the packet service of your choice as Provides standard Dial in PPP behavior "...
  • Page 40 All manuals and user guides at all-guides.com MS Windows 98 Dial Up Networking In this section Step Action Private...
  • Page 41 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying 4.1.1 Create a New Dial Up Networking Icon Procedure Proceed as follows: Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Dial Up Networking' icon. Double click the 'Make New Connection' icon to activate the 'Make New Connection' wizard.
  • Page 42 All manuals and user guides at all-guides.com Step Action and Description 'Make New Connection Note 'Make New Connection 'Microsoft VPN Adapter' Note STHome STHome...
  • Page 43 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying Result A new icon with the name of the connection you have just created will be added to your 'Dial Up Networking' folder: Creating multiple Per destination you can create a unique icon. To do so, repeat the steps starting with step 3 of the previous procedure.
  • Page 44 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying 4.1.2 Opening and Closing a Dial Up Session Opening a session Proceed as follows: Step Action and Description Double click the appropriate Dial Up icon in the 'Dial Up Networking' folder or double click its shortcut on your desktop.
  • Page 45 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying While you are Once the Dial Up connection is established, you can find the connected MSDUN icon showing two PCs connected to each other in the system tray: The MSDUN icon symbolizes activity on the PPPoA/PPTP connection by flashing PC(s):...
  • Page 46 All manuals and user guides at all-guides.com 4 Configuration - PPPoA to PPTP Relaying PPPoA/PPTP Configuration The 'PPTP' page Click in the left pane of the STHome pages to pop up the 'PPTP' page: Tables The 'PPTP Connections' table indicates all currently configured PPPoA PPTP Relaying entries and allows to add or delete entries.
  • Page 47 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Networking 47 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 48 All manuals and user guides at all-guides.com 48 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 49 All manuals and user guides at all-guides.com 5 Networking - ATM 5 Networking - ATM Introduction All data arriving at and departing from your STHome via the DSL line is carried in Asynchronous Transfer Mode (ATM) cells. In this way, ATM is the fundamental communication language" for the STHome towards the remote devices.
  • Page 50 All manuals and user guides at all-guides.com 5 Networking - ATM The ATM Packet Switching Technology ATM Switching ATM is a connection oriented packet switching technology using fixed size packets, called cells. These cells consist of a header and a payload and are switched through a public or private ATM network depending on the contents of the header.
  • Page 51 All manuals and user guides at all-guides.com 5 Networking - ATM ATMF 25 port This port, optional available on the single Ethernet port STHome, does not terminate ATM connections, it just switches ATM cells between the DSL and ATMF 25.6 port. It is the ATMF 25.6 PC NIC of the PC that actually initiates, or terminates ATM VCs.
  • Page 52 All manuals and user guides at all-guides.com 5 Networking - ATM The Speed Touch Phonebook Introduction The STHome phonebook is like any ordinary phonebook: A repository for names and numbers". However, in contrast to a standard phonebook, it contains additional connectivity information. Basic to the STHome operation are ATM VCs.
  • Page 53 All manuals and user guides at all-guides.com 5 Networking - ATM Tables The 'Phonebook' table indicates all currently configured phonebook entries and allows to add or delete entries. The 'AutoPVC' table lists all PVCs communicated via AutoPVC. If AutoPVC is not supported at the remote side, i.e. the Digital Subscriber Line Access Multiplexer (DSLAM), the 'AutoPVC' table stays empty.
  • Page 54 The default VCs, can be remotely modified via the AutoPVC feature of the STHome. AutoPVC operates only in conjunction with the Alcatel Digital Subscriber Line Access Multiplexer (DSLAM) - often referred to as ATM Subscriber Access Multiplexer (ASAM) - and offers the following functionality: User VCs that are to be terminated on the Ethernet port, can "...
  • Page 55 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS 6 Networking Services - IP , DHCP and DNS Introduction For Internet access, and home networking, IP(*) plays a crucial role. Due to the flexibility and the multitude of IP features, numerous configurations are possible.
  • Page 56 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Packet Services and IP Introduction In this section the interaction between IP addresses and packet services is described. Apart from Bridging, all packet services require the IP suite, and even the Bridging packet service will in most cases be used in combination with IP addressing.
  • Page 57 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS 6.1.1 Transparent Bridging IP vs. Bridging Basically, Bridging does not require any IP address at all: neither in your PC(s), nor in your STHome. However, in case of Internet access, private IP networking or in case the Bridging packet service is used for Bridged PPPoE, your PC(s) must be configured for TCP/IP .
  • Page 58 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS 6.1.2 PPPoA to PPTP Relaying IP vs. PPPoA/PPTP Prior to using PPTP , local IP addresses must be configured. The use of these IP addresses is limited to the local network. Private IP addresses You are free to choose any IP address as long as it is compatible with your local network and is unique in that same network.
  • Page 59 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Speed Touch Addresses Introduction Like any other member of a LAN, the STHome must be locally identified by an IP address to be able to communicate with other local LAN devices.
  • Page 60 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Setting an IP address Proceed as follows: via the 'Initial Setup' 1. Click in the left pane of the STHome pages to pop page up the 'Initial Setup' page: 2.
  • Page 61 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Speed Touch DHCP DHCP Depending on the size and complexity of your network, a few DHCP configurations can be envisaged: LAN Type DHCP Argumentation Mode Simple All few members of the small LAN have static IP...
  • Page 62 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS 'DHCP Server Start up The 'DHCP Server Start up Mode' radiobuttons allow to configure Mode' radiobuttons the STHome DHCP server mode. Configuring the To setup the STHome without DHCP , tick STHome for a LAN In this configuration, it is assumed that all members, the STHome without DHCP...
  • Page 63 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Configuring the One of the STHome features is that it can automatically revert STHome for Auto DHCP from DHCP client to DHCP server. At boot time the STHome probes the LAN for a specified time limit ('Client timeout') to check whether another DHCP server is available on the network.
  • Page 64 All manuals and user guides at all-guides.com 6 Networking Services - IP , DHCP and DNS Speed Touch DNS Introduction IP addresses are fundamental to the operation of the Internet. IP addresses, being 32 bit numbers, are ideally suited for computers but are far from usable to humans.
  • Page 65 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Maintenance 65 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 66 All manuals and user guides at all-guides.com 66 / 104 3EC 17058 AAAA TCZZA Ed. 04...

  • Page 67: Maintenance - Speed Touch Software

    All manuals and user guides at all-guides.com 7 Maintenance - Speed Touch Software 7 Maintenance - Speed Touch Software Software Upgrade The STHome supports two software upgrade possibilities: You can upload new STHome software yourself from a PC on " your local LAN A new version of the software can be downloaded via the DSL "...
  • Page 68 A valid STHome software package must reside either on a local drive, on a floppy disk or a CD rom. For new software upgrade packages, please contact your SP or check the Alcatel web sites at: http://www.alcatel.com http://www.alcateldsl.com Software upgrade via...
  • Page 69 All manuals and user guides at all-guides.com 7 Maintenance - Speed Touch Software 4. The 'File Upload' window pops up. This window allows you to browse to the location of the upgrade software package on either your local drive, floppy, or CD rom. 5.
  • Page 70 All manuals and user guides at all-guides.com 7 Maintenance - Speed Touch Software 70 / 104 3EC 17058 AAAA TCZZA Ed. 04...

  • Page 71: Maintenance - Speed Touch Password

    All manuals and user guides at all-guides.com 8 Maintenance - Speed Touch Password 8 Maintenance - Speed Touch Password In this chapter Your STHome is a highly advanced product, operating according the many configurations set via the STHome Web interface or via the CLI.
  • Page 72 All manuals and user guides at all-guides.com 8 Maintenance - Speed Touch Password Setting a system Proceed as follows: password 1. Click on the STHome pages to pop up the 'System setup' page: 2. In the 'Password' field, fill in a password. Note: Asterisks will appear instead of the password.

  • Page 73: Maintenance - Speed Touch To Defaults

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 9 Maintenance - Speed Touch To Defaults Introduction Non accessibility to your STHome may occur if wrongly configured, simply by forgetting its IP address, or forgetting the system password.

  • Page 74: Ping Of Life

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults Ping of Life Introduction The STHome offers a unique method to supply an IP address to the STHome's Ethernet port. This method, the Ping of Life , allows to provide the STHome with an IP address without affecting other configurational settings.
  • Page 75 All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 8. After the STHome finished its POST, it will configure the IP address <STHome IP address> you are pinging. 9. You must clear the entry in the ARP cache by issuing the following command: arp –d <STHome IP address>...

  • Page 76: Speed Touch Reset

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults Speed Touch Reset Overview of the To restore STHome's original settings, three methods are provided: To Defaults methods Two local software methods: " Browse to Defaults Which sets all parameters to original defaults, but keeps the system password and IP address.

  • Page 77: Browse To Defaults

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 9.2.1 Browse to Defaults Procedure Proceed as follows: 1. Click on the STHome pages to pop up the 'System setup' page: 2. Click if you are sure to reset the STHome to its original defaults.

  • Page 78: Ping To Defaults

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 9.2.2 Ping to Defaults Introduction A second software method to reset all settings to the original defaults is the Ping to Defaults . The technique is identical to that used for the Ping of Life , except that another MAC address is used, i.e.

  • Page 79: Switch To Defaults

    All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 9.2.3 Switch to Defaults Introduction At the back of the STHome there is a small push button labeled "Defaults". Via this button a hardware reset of the STHome, the Switch to Defaults, is possible.
  • Page 80 All manuals and user guides at all-guides.com 9 Maintenance - Speed Touch To Defaults 80 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 81 All manuals and user guides at all-guides.com Alcatel Speed Touch Home Appendices 81 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 82 All manuals and user guides at all-guides.com 82 / 104 3EC 17058 AAAA TCZZA Ed. 04...

  • Page 83: Abbreviations

    All manuals and user guides at all-guides.com Abbreviations Abbreviations ADSL Asymmetric Digital Subscriber Line ASAM ATM Subscriber Access Multiplexer Asynchronous Transfer Mode ATMF 25.6 ATM Forum 25.6 Mbps Command Line Interface Domain Name System DSLAM Digital Subscriber Line Access Multiplexer Data Terminal Equipment Graphical User Interface Internet Protocol...
  • Page 84 All manuals and user guides at all-guides.com Abbreviations Uniform Resource Locator Virtual Channel Virtual Channel Identifier Virtual Path Virtual Path Identifier Virtual Private Network 84 / 104 3EC 17058 AAAA TCZZA Ed. 04...

  • Page 85: Appendixa Speed Touch Troubleshooting

    All manuals and user guides at all-guides.com AppendixA Speed Touch Troubleshooting AppendixA Speed Touch Troubleshooting Introduction This appendix provides information on how to identify and correct some common problems you may encounter when using and configuring the STHome. If the following troubleshooting tips have not resolved the problem, contact the company from which you purchased the STHome for assistance.
  • Page 86 All manuals and user guides at all-guides.com AppendixA Speed Touch Troubleshooting Trouble solving table The following table provides possible solutions to some problems: Problem Solution STHome does not work. Make sure the STHome is plugged into an electrical outlet. (none off the LEDs lights up) (none off the LEDs lights up) Make sure the power switch on the STHome modem is turned on.

  • Page 87: Appendixb Speed Touch Specifications

    All manuals and user guides at all-guides.com AppendixB Speed Touch Specifications AppendixB Speed Touch Specifications In this appendix Topic Connector Pin Assignments Power Supply Adapter LAN Cables Layout Physical Specifications ADSL Specifications 87 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 88 All manuals and user guides at all-guides.com AppendixB Speed Touch Specifications Connector Pin Assignments STHome port Name Port Signal Function Model description Name Reference Line 123456 Wire A Subscriber line 2/5 ADSL (DSL) wire A variant RJ 11/RJ 14 RJ 11/RJ 14 Wire A Subscriber line 3/4 ADSL...
  • Page 89 Limited power source (according to IEC/EN 60950, " sub clause 2.11 and UL1950). Note: Do not use power adapter types with other specifications (e.g. from other Alcatel Speed Touch products) ! 89 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 90 All manuals and user guides at all-guides.com AppendixB Speed Touch Specifications LAN Cables Layout Straight through LAN Straight through LAN cables with the following layout are cable applicable for interconnecting Ethernet ports, and ATMF 25.6 ports: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Crossover LAN cable Crossover LAN cables with the following layout are applicable for...
  • Page 91 All manuals and user guides at all-guides.com Physical Specifications Physical dimensions Operating environment Power requirements Ports characteristics DC input port " 10Base T/MDI X " ATMF 25 " Line DSL port " (**)
  • Page 92 All manuals and user guides at all-guides.com AppendixB Speed Touch Specifications ADSL Specifications ADSL modem ADSL data rates " specifications Downstream user (payload) data rates: Up to 8Mbit/s, depending on provisioning Upstream user (payload) data rates: Up to 1Mbit/s, depending on provisioning ADSL/POTS standards compliancy "...

  • Page 93: Appendixc Speed Touch Default Assignments

    All manuals and user guides at all-guides.com AppendixC Speed Touch Default Assignments AppendixC Speed Touch Default Assignments In this chapter Topic General Defaults Connection Service/ATM Encapsulation Defaults 93 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 94 All manuals and user guides at all-guides.com AppendixC Speed Touch Default Assignments General Defaults STHome IP address 10.0.0.138 STHome DNS name SpeedTouch STHome Domain name STHome DNS server Active STHome DHCP server Disabled STHome Master Enabled Firewall STHome system Not set password 94 / 104 3EC 17058 AAAA TCZZA Ed.
  • Page 95 The default VP=0 setting can only be applicable for the single Ethernet model. Control channels Upper Layer Protocols Service channel DSL/ATM Loopback channel SNMP/ASAM agent AAL5/SNMP communication channel for Alcatel ASAM Software TFTP download AAL5/TFTP channel 95 / 104 3EC 17058 AAAA TCZZA Ed. 04...
  • Page 96 All manuals and user guides at all-guides.com AppendixC Speed Touch Default Assignments 96 / 104 3EC 17058 AAAA TCZZA Ed. 04...

  • Page 97: Appendixd Safety And Agency Regulatory Notices

    AppendixD Safety and Agency Regulatory Notices AppendixD Safety and Agency Regulatory Notices Aim of this appendix This appendix provides basic Safety Information on Alcatel's Speed Touch product. Prior to using the Speed Touch product, read this appendix carefully. Reading all Follow all warnings and instructions marked on the product.
  • Page 98 (including, " without limitation, benchmarks) from any source relating to the equipment. Such acts not expressly approved by Alcatel will result in the loss of product warranty and will invalidate the user's authority to operate this equipment. 98 / 104...
  • Page 99 All manuals and user guides at all-guides.com AppendixD Safety and Agency Regulatory Notices Safety Instructions Climatic conditions The Speed Touch product equipment is intended for: In house stationary desktop use; the maximum ambient " temperature may not exceed 40ºC (104ºF). It must not be mounted in a location exposed to direct or "...
  • Page 100 All manuals and user guides at all-guides.com AppendixD Safety and Agency Regulatory Notices Power cord protection Do not allow anything to rest on the power cord. Do not locate this product where the cord will be subject to persons walking on Overloading Do not overload wall (mains) outlets and extension cords as this increases the risk of fire or electric shock.
  • Page 101 Consult your telephone service company or DSL service provider for instructions. Modifications Changes or modifications not expressly approved by Alcatel could invalidate the users authority to operate this equipment. STORE THESE INSTRUCTIONS CAREFULLY 101 / 104...
  • Page 102 All manuals and user guides at all-guides.com AppendixD Safety and Agency Regulatory Notices European Community Declaration of Conformity Products with the marking comply with both EMC and Low Voltage Directives issued by the Commission of the European Community. EC Declaration of A copy of the European Community Declaration of Conformity is Conformity provided in your Speed Touch product shipping box.
  • Page 103 All manuals and user guides at all-guides.com AppendixD Safety and Agency Regulatory Notices Radio Frequency Interference Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against such interference in a residential installation.
  • Page 104 All manuals and user guides at all-guides.com AppendixD Safety and Agency Regulatory Notices Canadian DOC Class B Notice Notification of Canadian RF Interference Statements This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communication.
