HOUSING
ENCLOSURES_
AD16/AP16
AD/AP16CH2, AP16CH1
Dustproof & Pressurized Environmental Housings

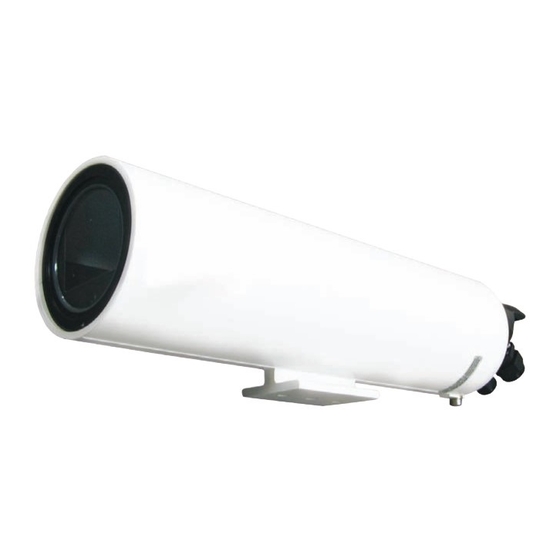

Moog Videolarm's AD8C-9 and AP8C-9 units provide a compact camera solution for harsh environments. The units are constructed with a
sealed tubular housing made from a thick aluminum that offers outstanding protection for the camera from dust, moisture, insects, and
pollution. The pressurized and dustproof housing cameras can be adjusted without breaking the housings seal, RS232 connection. Moog
Videolarm has equipped the AD8C-9 and AP8C-9 with a fixed high resolution color 23x (Vari-Focal Lens), auto-focus day/night camera (also
available in an IP model).
Key Features
•
Integrated heater/defogger
•
8" pressurized or dustproof tubular housing
•
Multi-pin, corrosion resistant connectors
•
Control with RS232 input via a Windows based
laptop using software provided
•
MCL 8"
AD/AP8C-9,
Outdoor Tubular
•
24Vac input
•
Non-volatile memory stores all settings in the event of a power loss
•
Future enhancements include control via PDA and RS485
control with Moog Videolarm and other manufacturer's
protocols. Call Moog Videolarm for more information
AD8/AP8
Advertisement
Related Manuals for Moog Videolarm AD8C-9
Summary of Contents for Moog Videolarm AD8C-9
- Page 1 Dustproof & Pressurized Environmental Housings Moog Videolarm’s AD8C-9 and AP8C-9 units provide a compact camera solution for harsh environments. The units are constructed with a sealed tubular housing made from a thick aluminum that offers outstanding protection for the camera from dust, moisture, insects, and pollution.
-
Page 2: Specifications
Engineering Specifications AD8C-9: Image Sensor: ¼” interline transfer CCD The AD8C-9 environmental, dust free housing is constructed from .16” (4mm) thick aluminum. The camera housing is designed to prevent dust from entering the unit. Chemically strengthened glass Output: NTSC has been used for the faceplate. Three liquid tight fittings (2 NPT ½” and 1 NPT 3/8”) are included for cable entry.
