AD16CH2
AD8CH2
A D 1 6 C H 2 a n d A D 8 C H 2

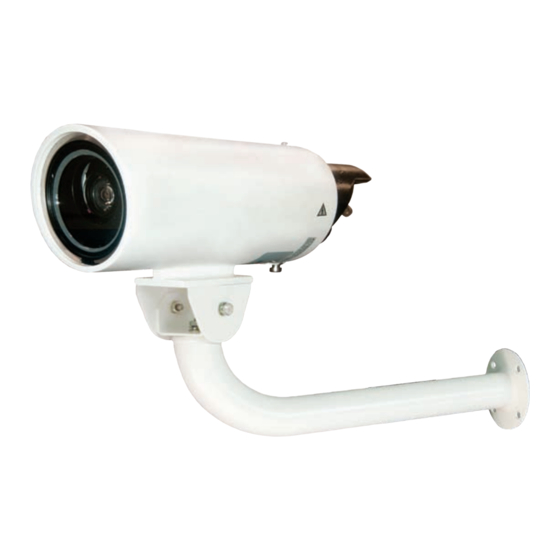

Outdoor Tubular Dustproof Environmental Housing
www.videolarm.com
Installation and Operation Instructions for the following models:
AD16CH2 Dust proof outdoor housing with heater, 24Vac input
AD8CH2
Dust proof outdoor housing, 24Vac input. Three liquid tight fittings for wiring
81-IN5265
Before attempting to connect or operate this product, please read these instructions completely.
01-11-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm AD16CH2
Summary of Contents for Moog Videolarm AD16CH2
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved AD16CH2 AD8CH2 A D 1 6 C H 2 a n d A D 8 C H 2 Outdoor Tubular Dustproof Environmental Housing www.videolarm.com Installation and Operation Instructions for the following models:...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Category
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: General Instructions
GENERAL INSTRUCTIONS: 3. Remove the cradle assembly by pushing gently on the metal part of front cap and simultaneously grasping the rear handle and pulling the cradle assembly out of Use only with Class 2 Power Supply the housing. Be sure to keep the edges of the end caps clean and free of scratches (Figure 2). HARDWARE KIT Cable Tie BHCS, 1⁄4-20 x 1⁄4-inch BHCS, 1⁄4-20 x 5⁄8-inch BHCS, 1⁄4-20 x 3⁄4-inch BHCS, 1⁄4-20 x 1⁄2-inch BHCS, 1⁄4-20 x 3⁄8-inch BHCS, 1⁄4-20 x 11⁄4-inch 0.4 mm (0.016-inch) Plastic Spacer Retention Screw 1.65 mm (0.065-inch) Plastic Spacer 3.9 mm (0.154-inch) Plastic Spacer 7.4 mm (0.292-inch) Plastic Spacer 9.8 mm (0.385-inch) Plastic Spacer Figure 2 3⁄8-inch NPT Plug Pull Seals 4. Place the camera/lens combination into the cradle assembly. Position the camera/ lens 1 mm (0.04-inch) away from the faceplate. The camera/lens is secured to the RATINGS cradle with a 1⁄4-20 button head cap screw (BHCS) and the appropriate plastic NEMA-3R and IP54 spacer (Figure 3). The HS9384 Series housings include a “breather” hole in the front end cap. The “breather” hole prevents the accumulation of moisture inside the housing when installed in areas of high humidity. With the “breather” hole open, the AD16 housing meets the enclosure rating requirements of NEMA-3R and IP54. -
Page 5: Final Assembly
LIQUID TIGHT FITTINGS 3. Connect the supply (24VAC) to the quick connectors on the fuse connector The dual male threaded portion of the three liquid tight fittings, two NPT 1⁄2-inch, and (Figure 6). one NPT 3⁄8-inch, located in the rear of the cradle, are provided preinstalled. Do not remove or loosen these parts. They have been installed to a specified torque to prevent entrance of water. The two large fittings are supplied with seal glands for cables with diameters from 4.3 mm (0.17-inch) to 11.9 mm (0.47-inch). The small fitting will accept cables with diameters from 4.6 mm (0.181-inch) to 7.9 mm (0.312-inch) (Figure 4). Seal Cap Figure 6 3. Connect the black and white leads coming out of the fuse holder to the camera Seal Gland (Figure 7). Dual Male Portion Figure 4 CAUTION: Be sure to securely tighten all fittings to ensure a liquid- tight seal. Failure to do so could allow water to enter the housing and damage the camera and lens. If a sealant is to be used, be sure it is a neutral cure type. Sealants that release acetic acid may harm camera electronics. NOTE: Use of drip loops is recommended on the wiring outside of the rear end cap. Figure 7 4. Install the seal cap portion of the large liquid tight fitting on the video coax cable and If no lens control or feed-through wiring will be used, remove the preinstalled 3⁄8-inch pull the cable through the right fitting on the rear end of the cradle. If lens control is liquid-tight fitting from the small bottom center hole and install the 3⁄8-inch NPT plug provided. Use a 5⁄16-inch (or 8 mm) hex wrench to tighten. Failure to do so will allow used, pull cable through the small bottom fitting. 5. Attach the BNC connector to the coax and connect it to the camera. Pull any excess water to enter and cause damage to all electronic parts (Figure 5). wire out of the cradle assembly and tighten approximately 1 to 11⁄2 turns past the point where the fitting starts to grip the wire. Failure to do so will result in water damage to all electronic parts. Use a tie wrap (included) to provide strain relief on the video cable at the exit point (inside unit). - Page 6 1. Reinsert the cradle assembly. Turn the slot on the retaining ring to the top of the rear cap (Figure 11). Front Face Breather Hole Figure 7 To install the pull seal: 1. Remove the cradle assembly from the housing. 2. Obtain a rubber pull seal from the hardware kit (Part Number 3152569 001). An extra pull seal is also provided (Figure 8). Head Figure 11 2. Position the housing vertically and replace the cradle assembly by applying pressure onto the rear cap until the retaining ring stops against the housing. (see Figure 12). Long End Figure 8 3. Insert the long end of the pull seal into the breather hole starting from the front side of the endcap (Figure 9). Front of Endcap Cradle Pull Seal Breather Hole Figure 9 4. Grip the pull seal’s long end from the back of the front endcap. Steadily pull the long end until the head of the pull seal is flat against the front of the endcap (Figure 10. Figure 12 NOTE: The Pull Seal’s long end will stretch when pulled through the breather hole. CAUTION: If a pull seal is installed in the breather hole, be careful not to pinch the head of the pull seal. Damage to the pull seal may allow water to enter the housing, causing damage to the c camera and lens. Front Endcap 3. Tighten the retention screw, making sure it is seated into the rear cap groove. If the housing needs to be tamper resistant, the HS9380TK (purchased separately) should be Rear Face of Head Should Be Flush with Front Face...
- Page 7 EXPLODED VIEW Ref No. Part Number Qty. Part Description Heyco Fitting Kit – 315 3802-001 3⁄4 NPT 3⁄8 NPT Cradle Assembly Kit – 315 3803-001 11 Cradle/Heater Assembly 16 Retaining Ring Ring Tongue Terminal 13 Ground Slide 10 M4 Phillips Head Screw 12 XXX Philips Head Screw Pull Seal Housing Kit – 315 3807-001 11 Housing Silicone O-ring...
- Page 8 Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
