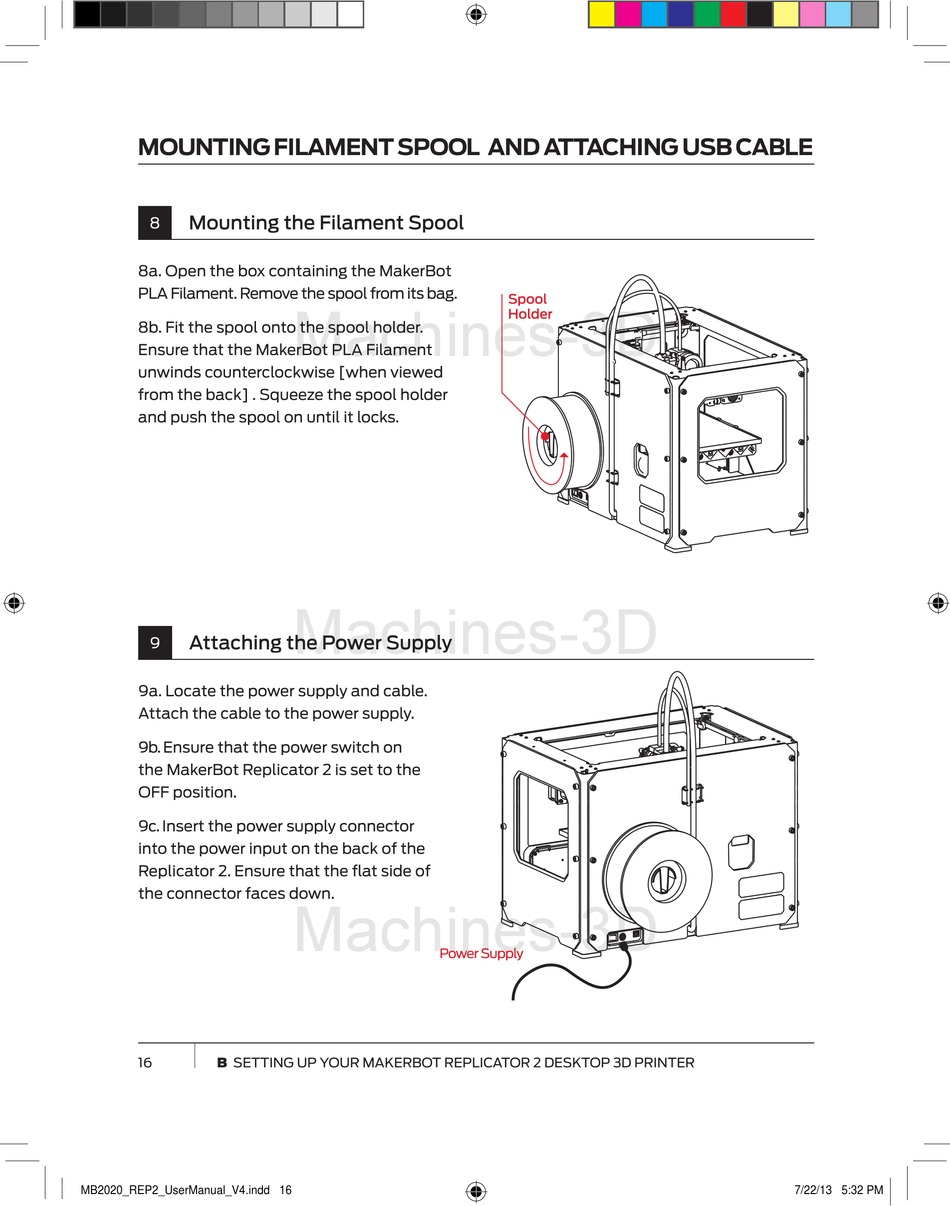

MOUNTING FILAMENT SPOOL AND ATTACHING USB CABLE

Mounting the Filament Spool
8
8a. Open the box containing the MakerBot
PLA Filament. Remove the spool from its bag.
8b. Fit the spool onto the spool holder.
Ensure that the MakerBot PLA Filament
unwinds counterclockwise [when viewed
from the back] . Squeeze the spool holder
and push the spool on until it locks.
Attaching the Power Supply
9
9a. Locate the power supply and cable.
Attach the cable to the power supply.
9b. Ensure that the power switch on
the MakerBot Replicator 2 is set to the
OFF position.
9c. Insert the power supply connector
into the power input on the back of the
Replicator 2. Ensure that the flat side of
the connector faces down.
16 B SETTING UP YOUR MAKERBOT REPLICATOR 2 DESKTOP 3D PRINTER
MB2020_REP2_UserManual_V4.indd 16
Machines-3D
Machines-3D
Machines-3D
Power Supply
Spool
Holder
