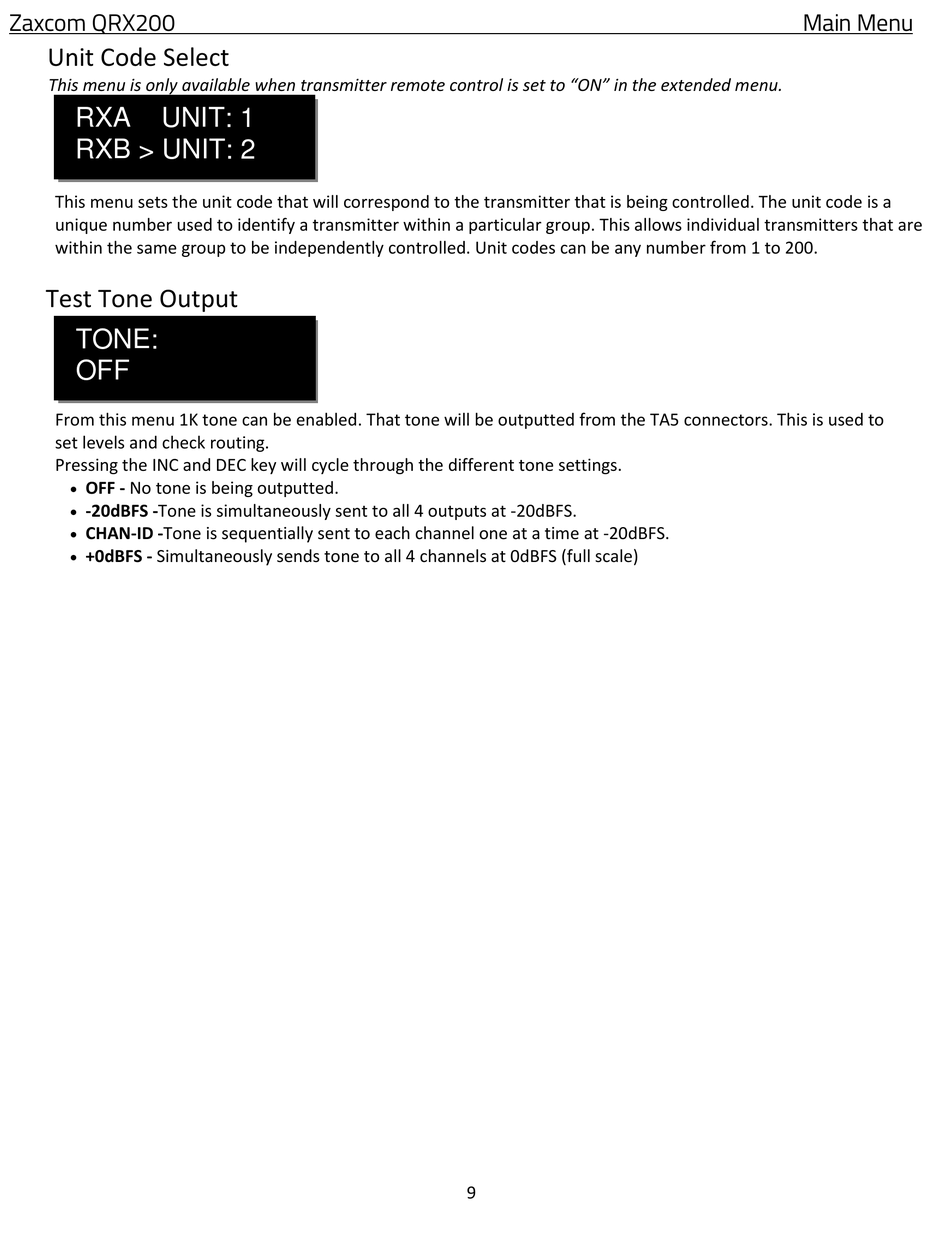

Unit Code Select

This menu is only available when transmitter remote control is set to "ON" in the extended menu.
RXA UNIT: 1
RXB > UNIT: 2
This menu sets the unit code that will correspond to the transmitter that is being controlled. The unit code is a
unique number used to identify a transmitter within a particular group. This allows individual transmitters that are
within the same group to be independently controlled. Unit codes can be any number from 1 to 200.

Test Tone Output

TONE:
OFF
From this menu 1K tone can be enabled. That tone will be outputted from the TA5 connectors. This is used to
set levels and check routing.
Pressing the INC and DEC key will cycle through the different tone settings.

OFF - No tone is being outputted.

-20dBFS -Tone is simultaneously sent to all 4 outputs at -20dBFS.

CHAN-ID -Tone is sequentially sent to each channel one at a time at -20dBFS.

+0dBFS - Simultaneously sends tone to all 4 channels at 0dBFS (full scale)
