SawStop T-Glide Fence System Owner's Manual page 8

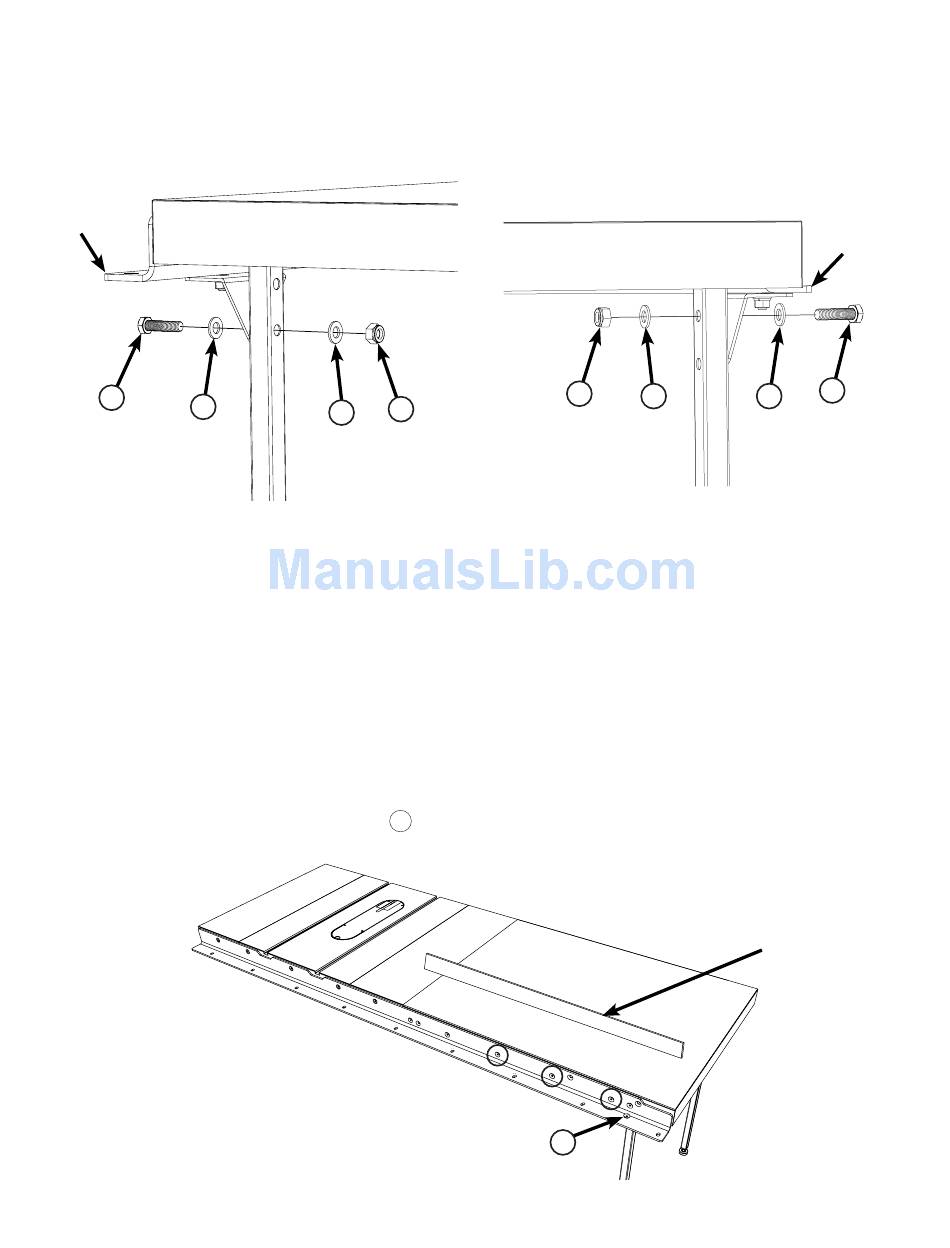

Attach each support leg to the corresponding leg support bracket with an M10 x 40 hex head bolt (23), two M10
washers (24), and an M10 lock nut (25), as shown in Fig. 9, and fully tighten the bolts using two 17 mm wrenches.
Note that the leg support brackets align with different holes in the front and rear legs because the brackets are at
different elevations.
front
rail
23
24
14. Install an M8 x 40 countersunk socket head bolt (17) through the one remaining front rail hole and into the
corresponding hole in the front edge of the extension table for a 36" fence system, or install M8 x 40 countersunk
socket head bolts (17) through the three remaining front rail holes and into the corresponding holes in the front
edge of the extension table for a 52" fence system (see the circles in Fig. 10). Install an M8 x 40 countersunk
socket head bolt (17) through the rear rail and into the corresponding hole in the rear edge of the extension
table for a 36" fence system, or use three M8 x 40 countersunk socket head bolts (17) for a 52" fence system.
Place an M8 washer (14) and an M8 lock nut (16) on each bolt and hand tighten.
Use a straight-edge to level the front edge of the extension table to the saw table (see Fig. 10). You may have
to pull up or push down on the extension table to level it. Once the front edge of the extension table is level,
use a 5 mm hex key and a 13 mm wrench to fully tighten the nuts on the bolts along the front rail. Repeat the
process to level the rear edge of the extension table. Also fully tighten the bolts that attach the leg support
brackets to the front and rear rails (bolts
25
24
Fig. 9
).
21
make sure to tighten the bolts that
attach the leg support brackets to
the front and rear rails
Fig. 10
page 6
25
24
21
rear
rail
23
24
straight-edge
