2. Installing the Rear Rail: You install the rear rail like you installed the front rail, except that you will probably
want to leave the rear rail a little loose until you get the extension table installed. The rear rail is attached to the
main table by two M8 x 25 (6) countersunk socket head bolts, as shown by the arrows in Fig. 2. Position the
rear rail along the back of the table with the cut-outs at the top of the rail centered on the miter gauge slots in
the table. Thread the bolts into the threaded holes and tighten using the 5 mm hex driver. See Fig. 2.
Mount the rear rail to each extension wing using an M8 x 35 (2) countersunk socket head bolt (the longer bolts),
an M8 washer (3), an M8 lock washer (4) and an M8 hex nut (5) for each of the holes shown by the circles
in Fig. 2. If necessary, push down or pull up on the wings before tightening the nuts to ensure the wings are
parallel to the table. As mentioned above, it is usually easier to leave the bolts in the rear rail slightly loose until
the extension table is installed as it may be difficult to position the extension table between the rails if both rails
are tightened down.
3. Installing the Extension Table: Once the rails are in place you can mount the extension table to the rails.
Begin by installing the adjustable foot in the bottom of each support leg. First, thread an M8 hex nut (5) onto
the threaded shaft of the foot (19) as close to the rubber base as possible. Next, thread the foot into the bottom
of the support leg (18) as far as possible. See Fig. 3.

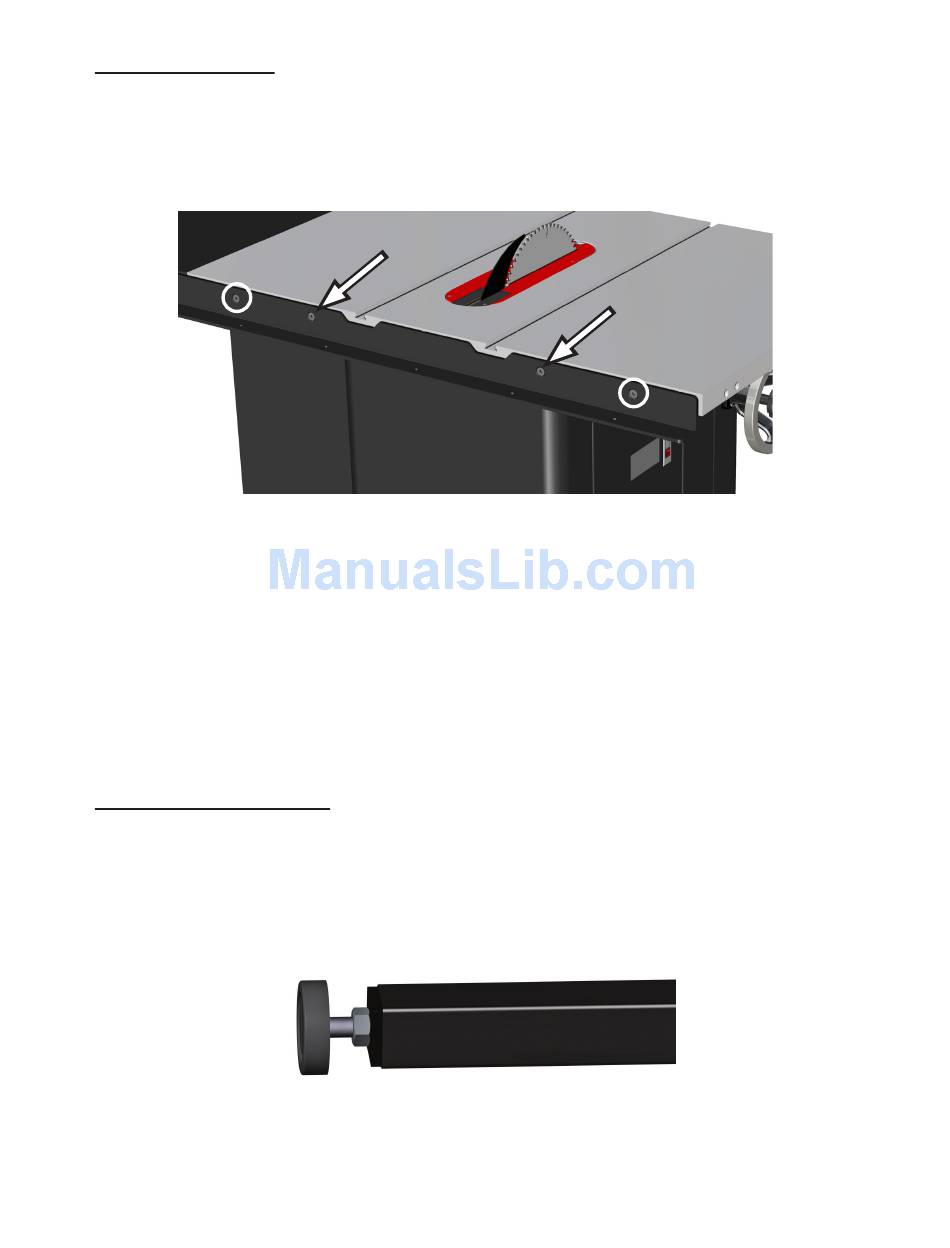

Fig. 2
Fig. 3
page 3
