SawStop T-Glide Fence System Owner's Manual page 4

Installation
To install the rails, extension table, and fence you will need the following tools:
5 mm hex driver and 6 mm hex key (included)
13 mm and 17 mm wrenches (or adjustable wrench)
Phillips head screwdriver
1. Installing the Front Rail: The first step in installing the fence is to attach the front rail to the table. Please
see pages 14 and 16 for exploded views of the rails and extension tables. The rails are shipped in the long
cardboard box packaged with the main tube. The front rail is the larger of the two and includes 5 countersunk
holes that are used to mount the rail to the front of the table. To mount the front rail, position the rail along the
front of the table with the cut-outs at the top of the rail centered on the miter gauge slots in the table. Thread
three M8 x 25 (6) countersunk socket head bolts into the threaded holes in the front of the main table, indicated
by the arrows below. See Fig. 1. Tighten the bolts using the 5 mm hex driver.
Next, mount the front rail to the cast iron extension wings using two M8 x 35 (2) countersunk socket head bolts
(the longer bolts), two M8 washers (3), two M8 lock washers (4) and two M8 hex nuts (5). Position the bolts
through the front rail and the extension table, then install the washer, lock washer and nut (in that order) on
the end of the bolt, indicated by the circles shown above in Fig. 1. The holes in the extension wings are not
threaded and are slightly larger than the bolts they receive. If necessary, use the rail to pull the wings up or
down slightly until the wings are flush with the table. Then tighten the nuts to secure the wings in place.

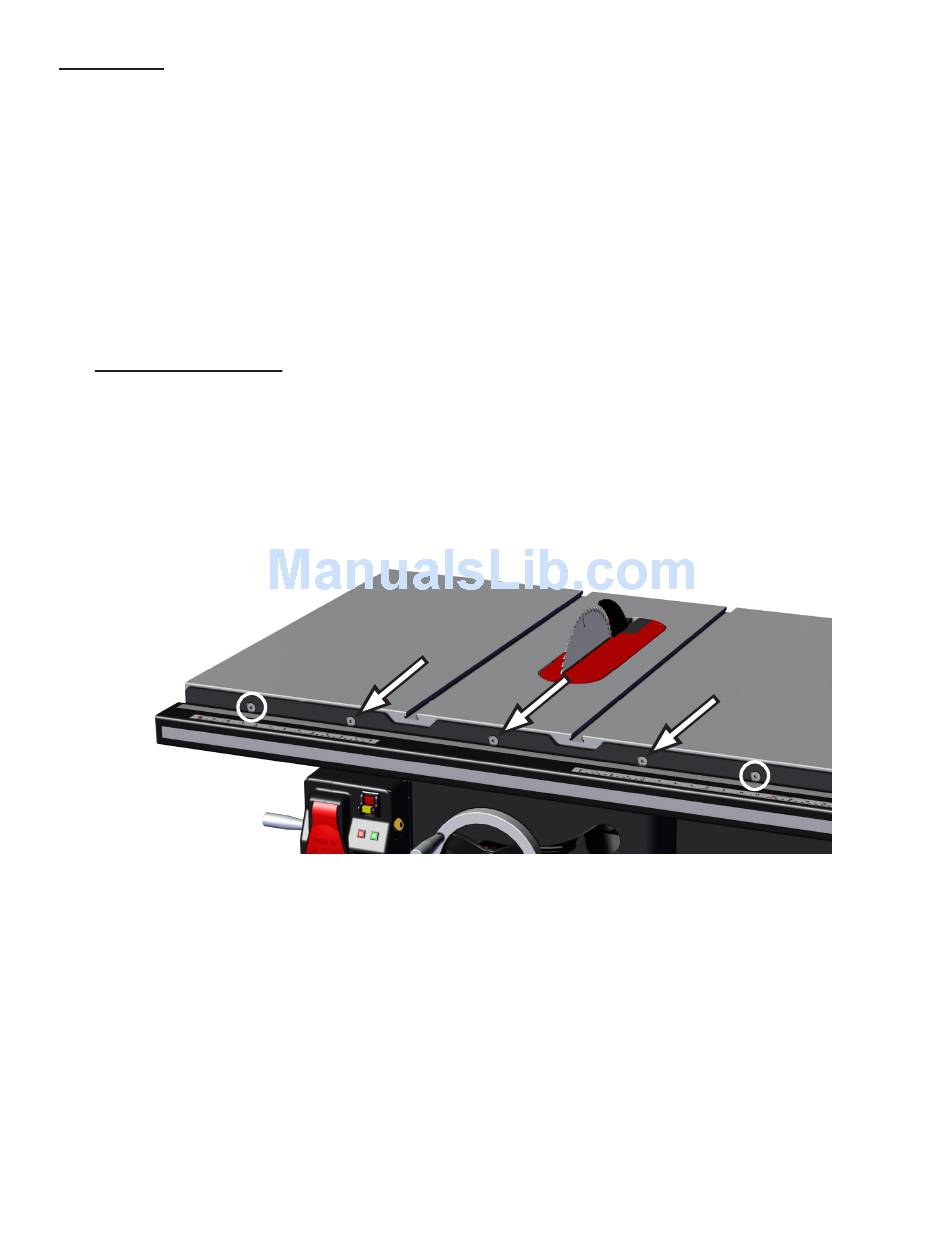

Fig. 1
