FastTrak TX2200, TX2300 User Manual
3.

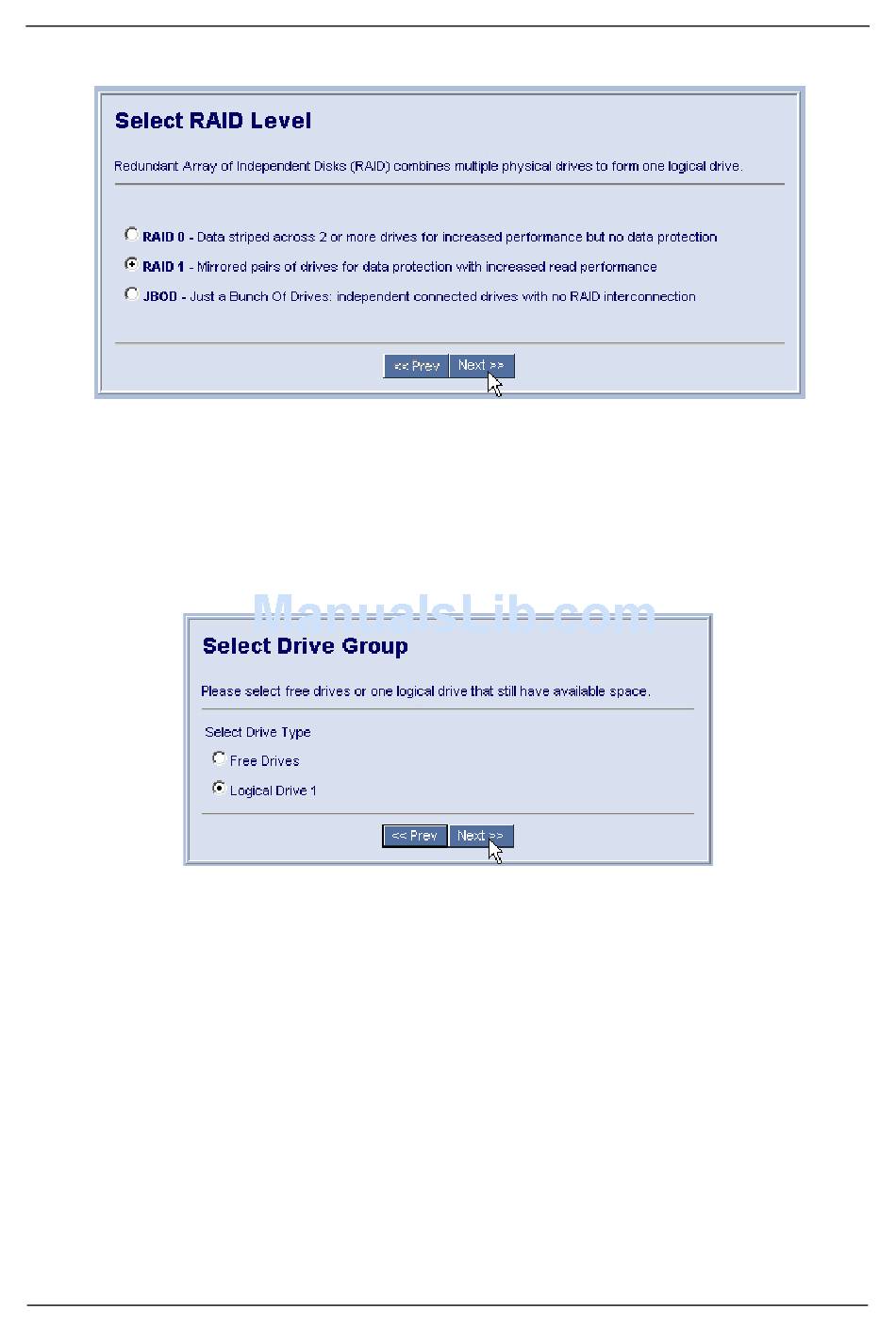

Select the option button beside the RAID level you want for your logical
drive.
WebPAM displays the RAID levels you can use with the available physical
(disk) drives. You can also select JBOD on this screen.
See "Choosing a RAID Level" on page 94 for information about the
advantages and requirements of the available RAID levels and JBOD.
4.
In the Select Drive Group screen, click on the option button for one of the
following:
•
Free Drives – Select all Free (unassigned) physical drives
•
Logical Drive – Select the Free portion of physical drives whose other
portion is assigned to a Logical Drive
The available choices depend on the RAID level you selected and the
physical drives available.
5.
Click the Next button.
68
