FastTrak TX2200, TX2300 User Manual
FastTrak Controller card
2.
Attach one SATA data cable to each disk drive. Then attach the other ends
of the cables to the connectors on the FastTrak card (above).
3.
Attach the Y-cable power splitters to your SATA disk drives.
If you are using a Promise SuperSwap 1100 or 4100 enclosure in your PC:
•
Connect the power cables to the SuperSwap enclosure.
•
Attach a SMBus cable from the Management Connector on the
FastTrak card to the Management Connector on the first enclosure
These actions are described in Chapter 2 of the SuperSwap User Manual.

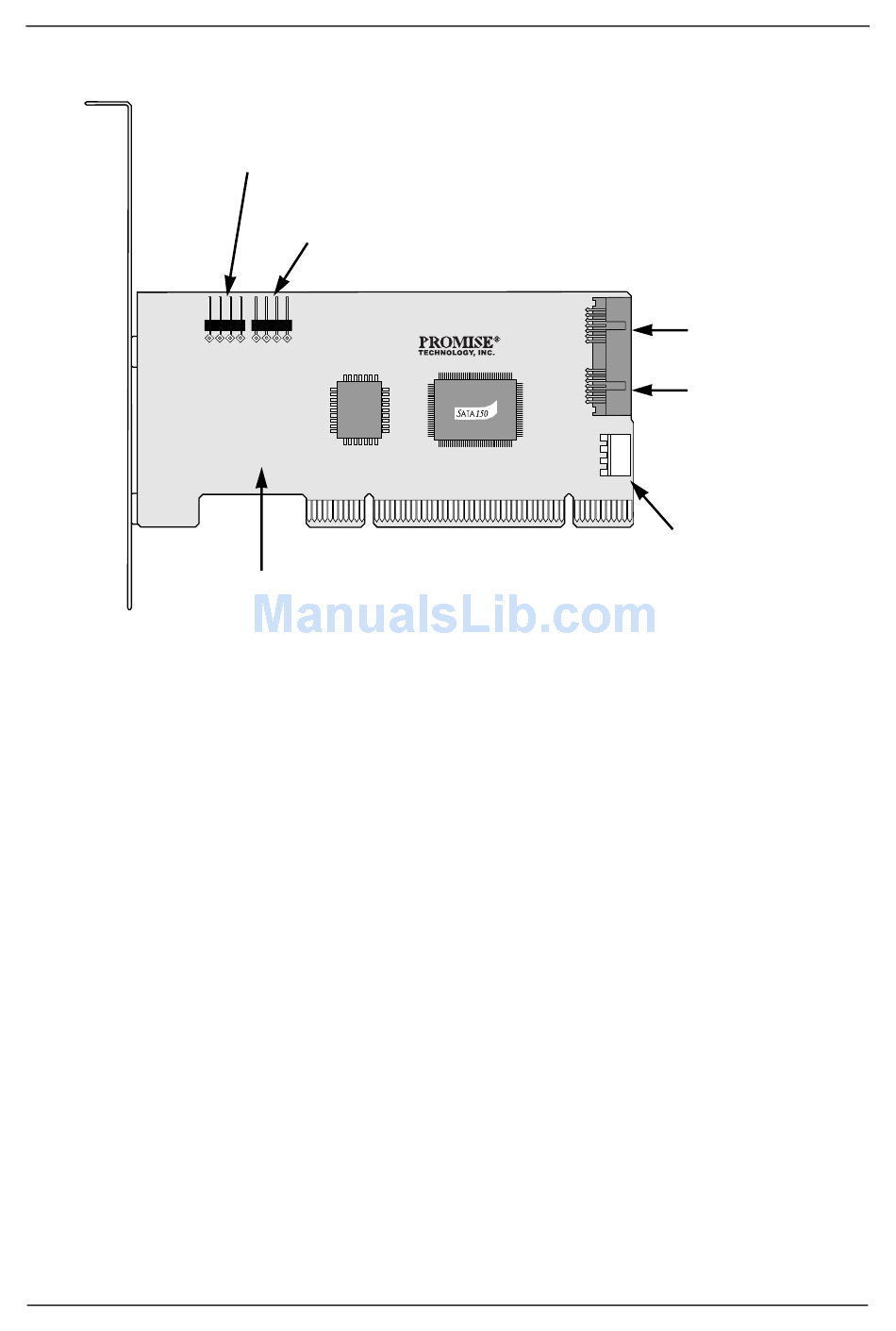

Individual LED
Connectors
Aggregate LED
Connectors
FastTrak
TX2200
10
Port 2 /
Channel 2
Port 1 /
Channel 1
Management
Connector
