FastTrak TX2200, TX2300 User Manual
4.
Press the arrow keys to highlight an logical drive number you want to define
and press Enter to select it.

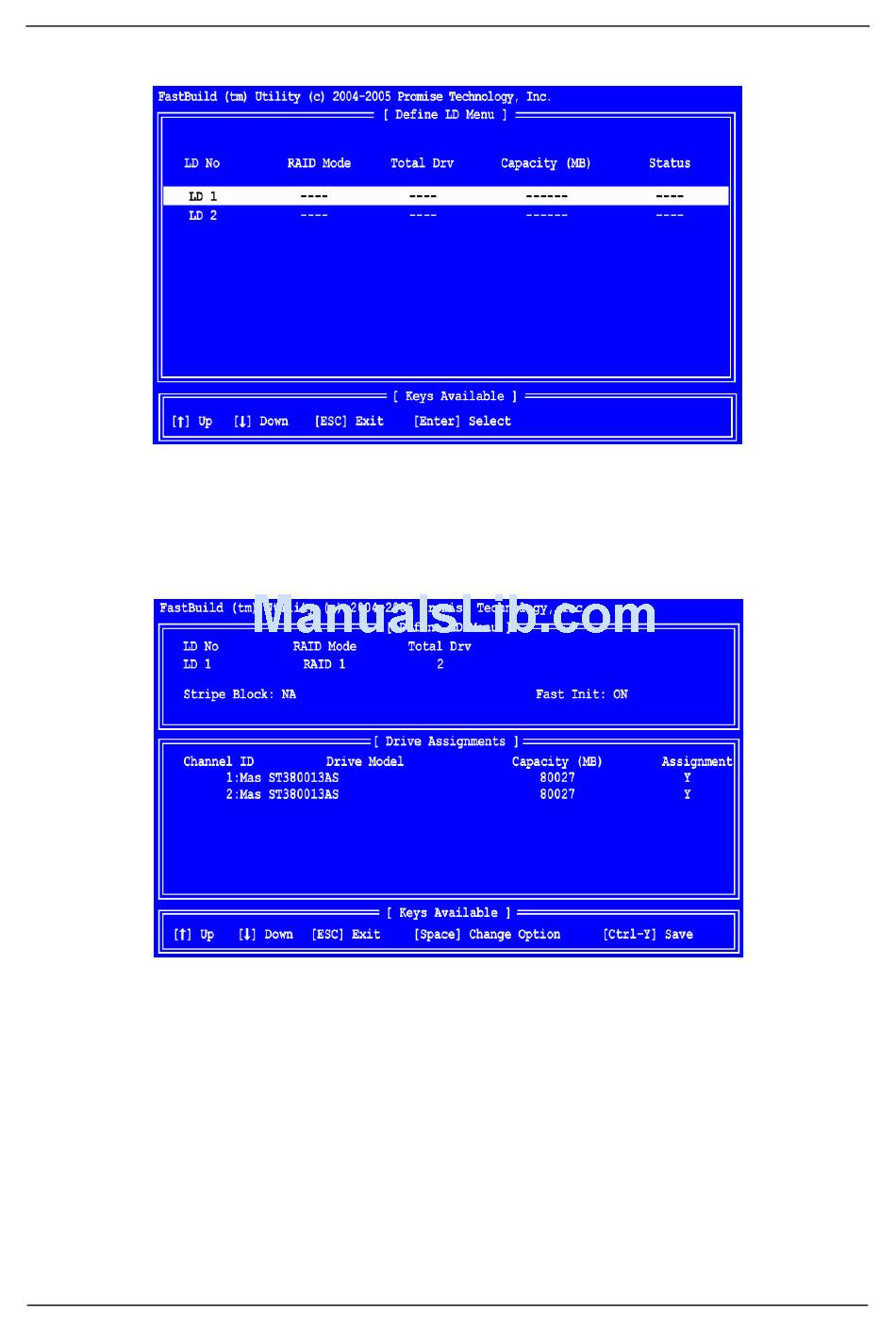

The Define LD Menu for the logical drive number you selected will next
appear (below).
5.
Choose the RAID Level you want. In the Define LD Menu section, press the
Spacebar to toggle through logical drive types:
•
RAID 0 (Stripe)
•
RAID 1 (Mirror)
•
JBOD (Single Drive)
See "Introduction to RAID" on page 91 for more information.
6.
Press the arrow keys to move to the next option. Option choices depend on
the RAID Level you selected.
12
