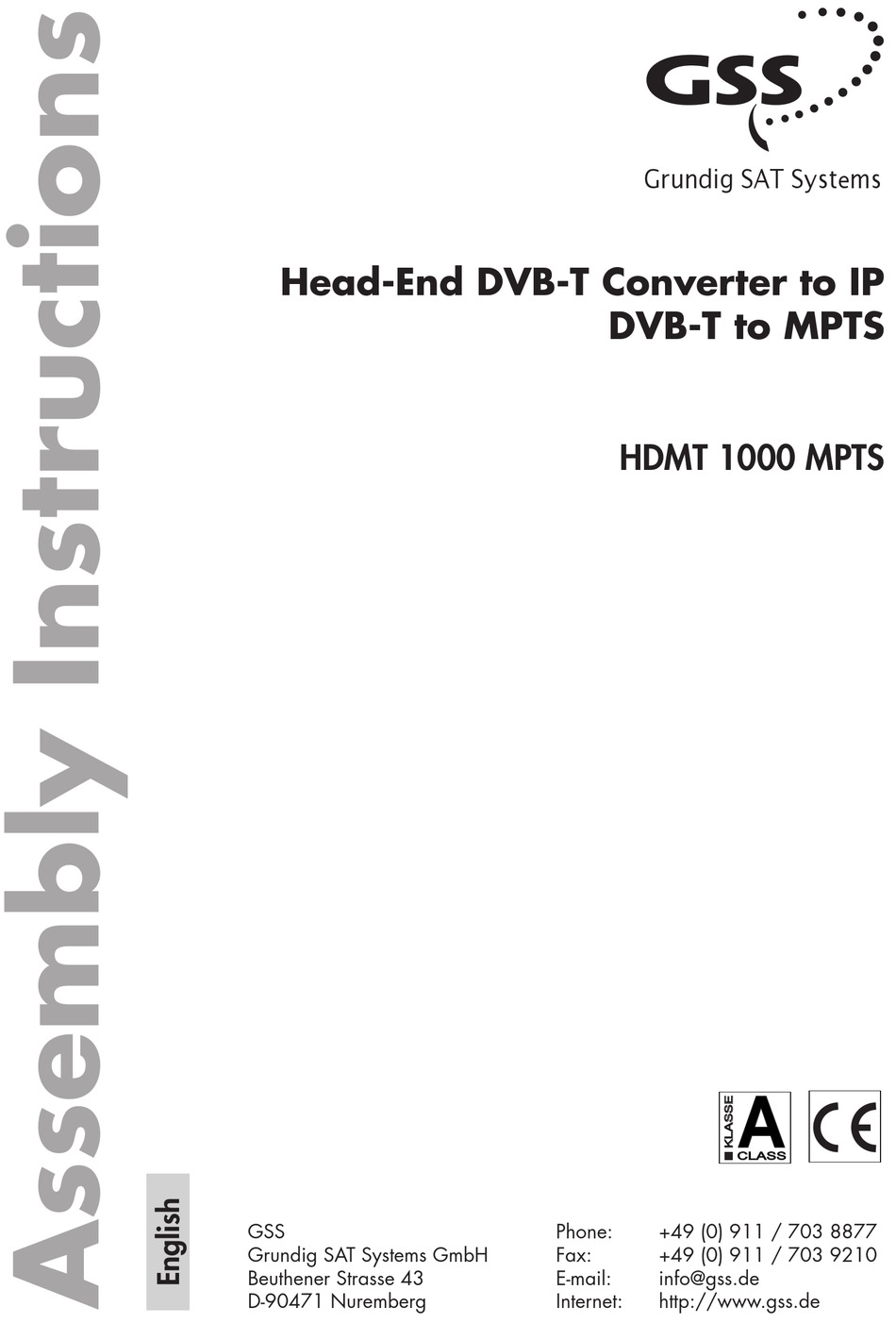

- Page 1 Grundig SAT Syst ms Head-End DVB-T Converter to IP DVB-T to MPTS HDMT 1000 MPTS C LASS CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de...
-
Page 2: Table Of Contents
Contents 1 Safety regulations and notes ..................4 2 General information ....................5 2.1 Packing contents ..................5 2.2 Meaning of the symbols used ................5 2.3 Technical specifications ................5 2.4 Description ....................6 2.4.1 Input signal path “INROUTE” ..............7 2.4.1.1 Menu setting “A+ASI=1 B+ASI=2”........7 2.4.1.2 Menu setting “A+B+ASI=1 ASI=2”........7 2.4.2 Output signal path “OUTROUTE”... - Page 3 Setting the port number ................27 Defining the quantity of data packets ............29 Setting the forward error correction .............29 Setting the transmission channel ..............29 Setting the output IP address ...............30 Setting the input channel ................30 Setting the hierarchical modulation ..............32 Setting the station filter ................33 Displaying the output data rate ..............37 Network Information Table (NIT) ..............37 Network/operator identification ..............38...
-
Page 4: Safety Regulations And Notes
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at ”www.gss.de”. • For further information please read the assembly instructions for the head-end station used. -
Page 5: General Information
General information 2.1 Packing contents 1 Cassette HDMT 1000 MPTS 2 HF cables 1 CD (assembly instructions) 1 Brief assembly instructions 2.2 Meaning of the symbols used Important note —> General note • Performing works 2.3 Technical specifications The devices meet the following EU directives: 2006/95/EC, 2004/108/EC The product fulfils the guidelines and standards for CE labelling. -
Page 6: Description
75 Ω Impedance: Level (input / output): 800 mV ± 10% Return loss (input): > 17 dB (5 … 270 MHz Connections HF inputs: 2 IEC sockets HF loop-through outputs: 2 IEC sockets HF output: 1 IEC socket (no function) LAN: 1 RJ 45 socket ASI input:... -
Page 7: Input Signal Path "Inroute
The transport stream fed via the ASI socket can be inserted into the transport streams of the receiving stages via the TPS module. The signal path is set in the menu items input signal path “INROUTE” and output signal path ”OUTROUTE”. 2.4.1 Input signal path “INROUTE”... -
Page 8: Output Signal Path "Outroute
2.4.2 Output signal path “OUTROUTE” 2.4.2.1 Menu setting “ASI => ASI” The transport streams 1 (channel strip “A”) and 2 (channel strip “B”) equipped with IP addresses are provided at the LAN interface. The transport stream from the ASI input “TS ASI” is made available via the ASI output. Channel strip "A"... -
Page 9: Menu Setting "2=>Asi Asi=>Mb
You can find the current operating software for the control unit and the cassette, the required update software “BE-Flash” and the current assembly instructions on the website “www.gss.de”. The cassette is designed for use in the following head-end stations: –... -
Page 10: Software Query
2.5 Software query Control unit If necessary, you can activate the indication of the software version of the con- trol unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. “V 40” appears. Cassette After activating the cassette the software version of the cassette is displayed (s. -
Page 11: Assembly
Assembly 3.1 Installing the cassette – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way. –... -
Page 12: Overview Of The Cassette
• Insert the required number of cable terminals in the openings provided in the head-end station or in the 19” cabinet. —> Cable terminals are not included in the scope of delivery. Tighten the nuts of the cable terminals until the teeth on the lock washers put under have penetrated the exterior coating and a good connection is made between the housing / 19”... -
Page 13: Connecting The Cassette
“BE-Flash” software to update the software of the cassette. You can find the “BE-Flash” software and the current operating software of the cassette at the website ”www.gss.de”. • Use a “one-to-one cable” to connect the cassette’s RS 232 interface and the PC according to the wiring scheme below. -
Page 14: Retrofitting A Ca Module
3.6 Retrofitting a CA module The cassette is equipped with a common interface. It allows you to connect a CA module for various encryption systems and service providers. Encoded serv- ices can only be decoded with a CA module suitable for the encoding system and the corresponding smart card. -
Page 15: The Control Panel At A Glance
The control panel at a glance 4.1 Menu items Program the cassette using the buttons on the control unit of the head-end station. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the button to select the following main menu items: –... -
Page 16: Programming
Programming 5.1 Programming procedure 5.1.1 Channel strips “A” (without CA module) and “B” Ein / On BE–Remote V 40 please wait … t > 10 s Box 1 …… ……… …… Box 4 DVBT-MPTS Box 5 …… V 10 – – – ………... - Page 17 Bx 4 OUTROUTE Bx 4 ASI RATE 1=>ASI ASI=>MA 108000 KBits ASI=>ASI 1=>ASI ASI=>MA 2=>ASI ASI=>MB 188 / 204 Bx 4 ASI OPTION positive / negative 188 pos. cont. continuous / burst page 18 Bx 4 LINE Line A <= =>...
- Page 18 Services entfernen / hinzufügen Bx 4A PROGRAM Bx 4A TV 01/07 Removing / activating services nächster Service (Programm) Filter Das Erste next service (station) Services entfernen / hinzufügen Bx 4B TV 01/09 Removing / activating services nächster Service next service Services entfernen / hinzufügen …...
-
Page 19: Channel Strip "A" With Ca Module
5.1.2 Channel strip “A” with CA module page 18 Bx 4A 3.3 V / 5.0 V Supply 5.0 V Bx 4A on / off PID Check Bx 4A Menu <= => Edit X / 0 Bx 4A 01/03 MENU Bx 4A TV 04/09 X –... -
Page 20: Programming The Cassette
5.2 Programming the cassette —> Pressing the button for longer than 2 seconds cancels the pro- gramming procedure. This takes you back to the program item “Selecting the cassette” from any menu. Any entries that have not been saved are reset to the previous settings. -
Page 21: Setting The Ethernet Parameters
• Press the button. —> The “Setting the Ethernet parameters” – “ETHERNET” menu is activated. Setting the Ethernet parameters In this menu you specify whether the Ethernet parameters for the cassette are entered automatically by a connected server (“DHCP”), or whether you want to enter them manually (“stat”). -
Page 22: Setting The Address Range
Bx 4 Bx 4 ETHERNET ETHERNET Bx 4 IP-ADDR stat stat => => Options Options 192.168. 0.128 stat / DHCP stat / DHCP • Use the buttons to place the cursor under the digit ◀ ▶ of the IP address displayed to be set and use to set the IP address wished. -
Page 23: Setting The Address Of The Gateway
Setting the address of the gateway The address of a gateway (server) can be set in this menu. If no gateway is used you can skip this setting. Bx 4 IP-GATEWAY 192.168. • Use the buttons to place the cursor under the digit ◀... -
Page 24: Selecting The Input Signal Path
Selecting the input signal path In this menu you define the signal path of the input transport streams. Menu setting “A+ASI=1 B+ASI=2” (s. chap. 2.4.1.1, page 7). Menu setting “A+B+ASI=1 ASI=2” (s. chap. 2.4.1.2, page 7). Bx 4 INROUTE A+ASI=1 B+ASI=2 / A+B+ASI=1 ASI=2... -
Page 25: Setting The Asi Transfer Rate
• Use the buttons to select the signal path wished. • If you do not want to do ASI settings, press the button. —> The “Selecting the channel strip” – “LINE” menu is activated (page 27). • Press the button. —>... -
Page 26: Setting The Asi Options
Setting the ASI options In this menu you define the size of the data packets, their polarity and the type of transmission. For this setting please take the required information from the documentation (technical data) of the ASI component to be connected. -
Page 27: Selecting The Channel Strip
Selecting the channel strip Bx 4 LINE Line A <= => Line B Line A Line B • By pressing select channel strip “A” (“Line A”) or select ◀ channel strip “B” (“Line B”) by pressing the button. ▶ —> The “Switching the IP address off or on, selecting the transmission protocol, setting the port number”... - Page 28 Selecting the transmission protocol • Press the button to position the cursor under ”UDP” or ▶ ”RTP”. • Using the buttons to select the transmission protocol wished: “UDP” – The User Datagram Protocol is for the connec- tionless transmission of data to a certain applica- tion.
-
Page 29: Defining The Quantity Of Data Packets
Defining the quantity of data packets Setting the forward error correction Setting the transmission channel In this menu you set the quantity of the data packets to be transmitted, the forward error correction FEC and the trans- mission channel. If the forward error correction is used the data to be transmitted is encoded in a redundant way so that the addressee can correct transmission errors. -
Page 30: Setting The Output Ip Address
Setting the output IP address In this menu you set the output IP address for the channel strip selected. This IP address the services wished are allocated in the station filter. Bx 4A OUT-IP 227. 40. 50. 60 Allocate different IP addresses to the channel strips. •... - Page 31 • If necessary use the button to activate the menu item ▶ “Fine tuning”. —> “0” is displayed instead of the frequency display. Bx 4A INPUT -64…+64 • Use for fine tuning the input channel (“-64“ … “+64”). In addition to the indicator in the display, there is also a status LED which indicates whether a transport stream is received or not: LED indicator...
-
Page 32: Setting The Hierarchical Modulation
Setting the hierarchical modulation In order to attain with less field strength a greater range for broadcasters, with DVB-T so-called “hierarchical modulation” is used. In this process, several data streams are modulated onto a DVB-T data stream using “Quadrature Amplitude Modulation”... -
Page 33: Setting The Station Filter
Setting the station filter The default setting for the station filter is “off”. In this menu you define the services received to be transmitted. If services are activated the output data rate increases. If the station filter is switched off (factory default) all services of the transport stream passes the station filter. - Page 34 Channel strip ”B” Bx 4B PROGRAM … – …/… Filter ……… Bx 4B PROGRAM Filter on / off • Press the button. —> All services from the channel strip will be read, and then displayed with name and type of the service. —>...
- Page 35 —> If a service number (e.g. “131”) appears instead of “TV” or “RA”, this indicates that an unnamed service or an undefined transport stream is being received. • Use the buttons to call up the services in sequential ◀ ▶ order, then use to activate (indicated by “...
- Page 36 ”INROUTE” menu setting ”A+ASI = 1 B+ASI = 2”. Channel strip “A” Bx 4A PROGRAM Bx 4A TV 01/07 Filter Das Erste … – …/… ……… Bx 4A PROGRAM Filter on / off • Set the channel strip “A” or channel strip “B”. —>...
-
Page 37: Displaying The Output Data Rate
Displaying the output data rate In this menu the current data rate is displayed. Kanalzug “A” ohne CA-Modul, Kanalzug ”A” mit CA-Modul Kanalzug “B” / Channel strip ”A” with CA module Channel strip “A“ without CA module, Channel strip “B“ Bx 4A DATARATE 51400 kbps... -
Page 38: Network/Operator Identification
Network/operator identification In this menu, you can change the network/operator identi- fication (CAT-ID – Conditional Access Table - Identification). Bx 4A CAT-ID 0xDE00 on / off CAT is not to be changed. • Press the button. —> The “Deleting a PID” – “DROP” menu is activated (page 39). -
Page 39: Deleting A Pid
Deleting a PID In this menu a PID of the transport stream can be deleted. Bx 4A DROP PID 0x0000 on / off • Use the buttons to place the cursor under the re- ◀ ▶ spective digit of the hexadecimal number of the PID to be deleted (“0x0000”) and set the hexadecimal number using •... -
Page 40: Saving Settings
Saving settings • Press the button. —> The settings are saved. —> You are returned to the “Selecting the cassette” menu item via connection (page 20). —> If functions of the TPS module are activated, their sta- tus is shown in the second line of the display: “M”... -
Page 41: Setting The Pid Monitoring
• Press the button. —> The “Setting the PID monitoring” – “CA” menu is acti- vated. Setting the PID monitoring The factory default of the PID monitoring is switched on. If particular PIDs are not decrypted the CI module is reset. Additionally dropouts may occur if several services are de- crypted. -
Page 42: Configuring The Ca Module
Configuring the CA module The menu varies according to which CA module you are using. For this reason, please refer to the operating manual of your particular CA module. The relevant information is shown in the display of the head-end station. This may ap- pear as a fixed display or as scrolling text according to dis- play capabilities. -
Page 43: Decoding Services
• Use the buttons to activate the menu desired. • Press the button to activate the menu. ▶ • Use the buttons to select the function desired. • To set the CA module use the buttons. ◀ ▶ • All settings are saved by pressing the button. -
Page 44: Final Procedures
Further possible terms displayed: “RA” – ”Radio” (type of the service) “0” – The currently selected service is encrypted. • Use the buttons to call up the services in sequential ◀ ▶ order which are to be decoded, then use to decrypt (“X”) or not to decrypt them (“0”). - Page 45 - 45 - - 45 -...
- Page 46 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH 03102009...
