GSS PCIM 1000 Assembly Instructions Manual

Head-end converter dvb-c/t to mpts
Table of Contents

Advertisement

Quick Links

GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
Head-End Converter
DVB-C/T to MPTS
Phone:
+49 (0) 911 / 703 8877
Fax:
+49 (0) 911 / 703 9210
E-mail:
info@gss.de
Internet:
http://www.gss.de
PCIM 1000
CLASS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIM 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for GSS PCIM 1000

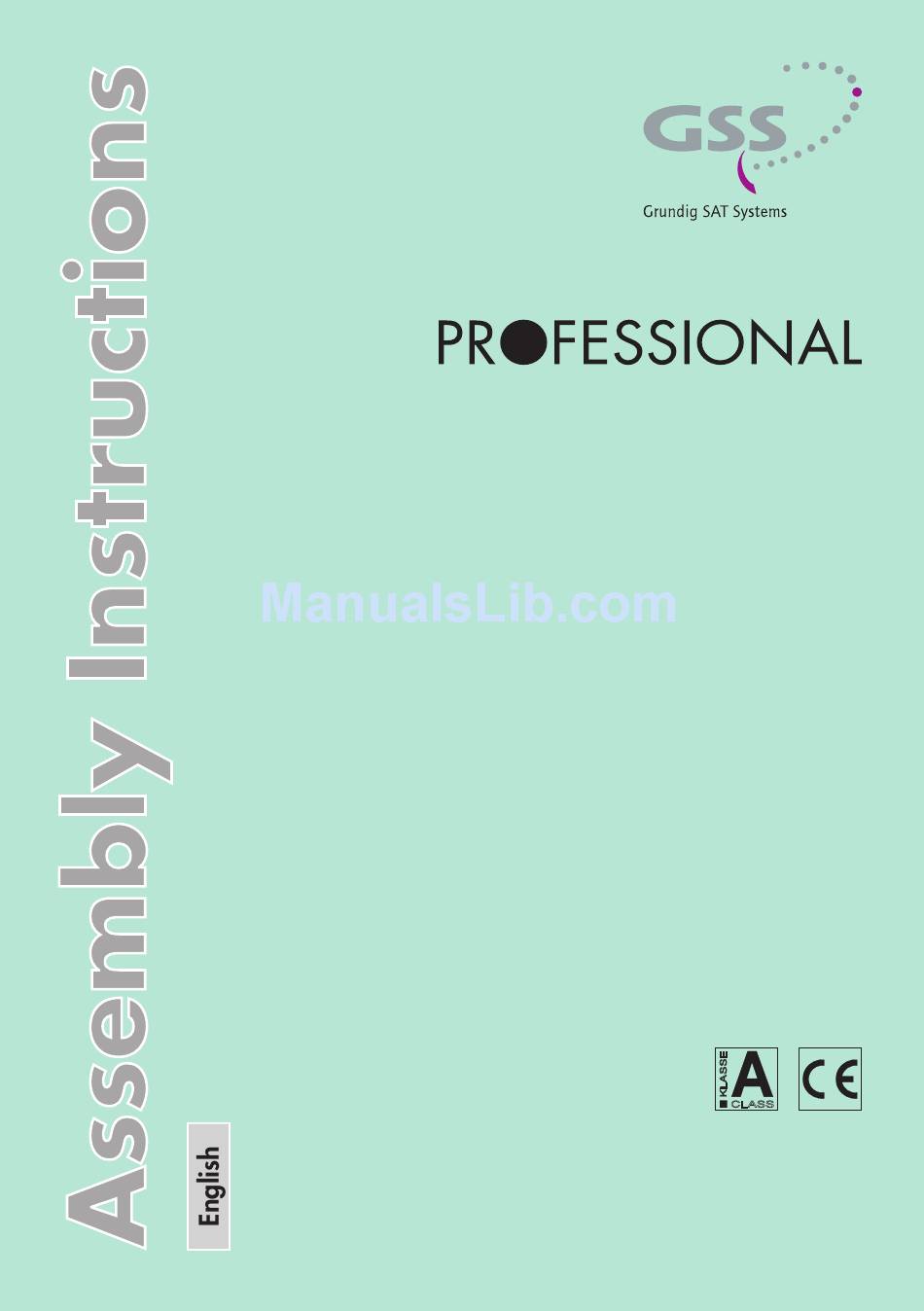

  • Page 1 Head-End Converter DVB-C/T to MPTS PCIM 1000 CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de...
  • Page 2: Table Of Contents

    Selecting the cassette, displaying the software version ......21 Ethernet parameters ................21 IP address of the cassette ..............22 Address range ................. 22 Address of the gateway ..............23 UDP port ..................23 Input signal path ................24 - 2 - PCIM 1000...
  • Page 3 Renaming a PID ................35 Factory reset ..................36 Saving settings ................. 36 Operation with a CA module ............. 37 PID monitoring ................37 CA module ................. 37 Descrambling services ..............39 6 Final procedures ....................40 - 3 - PCIM 1000...
  • Page 4: Safety Regulations And Notes

    European Council from January 27, 2003 which addresses old electronic and electrical devices, such devices must be disposed of at a designated collection facility. At the end of its service life, please take your device to one of these public collection facilities for proper disposal. - 4 - PCIM 1000...
  • Page 5: General Information

    2.1 P aC k i n g C o n t e n t s 1 Cassette PCIM 1000 2 RF cables 1 Brief assembly instructions 1 Measuring log 2.2 m...
  • Page 6: Description

    The transport stream fed via the ASI socket can be inserted into the transport streams of the receiving stages via the TPS module. The signal path is set in the menu items input signal path "INROUTE" and output signal path "OUTROUTE". - 6 - PCIM 1000...
  • Page 7: Input Signal Path "Inroute

    "TS ASI" are split into transport stream 1 and 2. Receiving stage "B" is not used. TS A Receiving stage CA module Transport stream 1 RF input ”A“ "A" TS ASI ASI input Transport stream ASI Transport stream 2 - 7 - PCIM 1000...
  • Page 8: Output Signal Path "Outroute

    ASI output and the transport stream from the ASI input "TS ASI" via MPTS line "B" (MB). TS 1 MPTS Line Transport stream 1 "A" LAN output TS ASI MPTS Line Transport stream ASI "B" TS 2 Transport stream 2 ASI output - 8 - PCIM 1000...
  • Page 9: General

    "V 45" or higher. You can find the current op- erating software for the control unit and the cassette, the software "BE-Flash" and the current assembly instructions on the website "www.gss.de". The cassette is intended for use in the PROFI-LINE head-end stations.
  • Page 10: Software Query

    • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. "V 45" appears. Cassette After activating the cassette the software version of the cassette is displayed (see page 21). - 10 - PCIM 1000...
  • Page 11: Assembly

    RF bus bar. • Fasten the cassette with the screws 0° ACHTUNG! AUSGANG Vor dem Kassettenwechsel max. 90 dBµV unbedingt denNetzstecker ziehen. CAUTION! Before changing cassettes remove mains plug. Grundig SAT Systems - 11 - PCIM 1000...
  • Page 12: Emc Regulations

    Tighten the nuts of the cable terminals until the teeth on the lock washers put un- der have penetrated the exterior coating and a good connection is made between the housing / 19" cabinet and cable terminals. - 12 - PCIM 1000...
  • Page 13: Overview Of The Cassette

    • Connect the RF connections to the inputs (channel strip "A") and (channel strip "B") . • Connect the ASI input and the ASI output to the peripheral ASI devices. • Connect the LAN socket - 13 - PCIM 1000...
  • Page 14: Updating The Software

    "BE-Flash" software to update the software of the cassette. You can find the "BE-Flash" software and the current operating software of the cassette at the website "www.gss.de/en". Before updating, the network cable must be disconnected from the LAN socket.
  • Page 15: Retrofitting A Ca Module

    CA module facing the top side of the cassette. • Push the CA module without canting into the guide rails of the CA slot and contact it to the common interface. - 15 - PCIM 1000...
  • Page 16: The Control Panel At A Glance

    The key pad on the head-end station is used to scroll through the menus: scrolls forward through the menus. select parameters in the menus. set values, initiate actions. selects sub-menus. scrolls backward through the menus. saves all entries. - 16 - PCIM 1000...
  • Page 17: Programming

    Bx 4 OUTROUTE Bx 4 ASI RATE ◀ ▶ ASI=>ASI 108000 KBits ASI=>ASI 1=>ASI ASI=>MA 2=>ASI ASI=>MB 188 / 204 Bx 4 ASI OPTION ◀ ▶ positive / negative 188 pos. cont. continuous / burst - 17 - PCIM 1000...
  • Page 18 Services entfernen / hinzufügen Bx 4B TV 01/09 Removing / activating services ◀ ▶ nächster Service next service Services entfernen / hinzufügen … …/… Removing / activating services ……… nächster Service ◀ ▶ next service - 18 - PCIM 1000...
  • Page 19 ◀ ▶ 0x0000 –> 0000 on / off Page 17 auf Werkseinstellung Bx 4 FACTORY Bx 4 FACTORY zurücksetzen und speichern ▶ reset to factory defaults Defaults => STORE => M Page 18 and store - 19 - PCIM 1000...
  • Page 20: Programming The Cassette

    • Switch on the head-end station Ein / On BE–Remote V 45 please wait … t > 10 s —> The display shows the software version (e.g. V 45) —> The processor reads the cassettes‘ data (approx. 10 seconds). - 20 - PCIM 1000...
  • Page 21: Selecting The Cassette, Displaying The Software Version

    ("stat") or automatic setting ("DHCP") of the Ethernet parameters. • Press the button to activate the setting options ("Options"). —> The "IP address of the cassette" – menu "IP-ADDR" is activated. - 21 - PCIM 1000...
  • Page 22: Ip Address Of The Cassette

    IP address displayed to be set and use to set the desired IP address. • Press the button. —> The "Address of the gateway" – "IP-GATEWAY" menu is activated. - 22 - PCIM 1000...
  • Page 23: Address Of The Gateway

    ("0" … "65535"). • Press the button. —> The "Input signal path" – "INROUTE" menu is activated. - 23 - PCIM 1000...
  • Page 24: Input Signal Path

    • If you do not want to do ASI settings, press the button. —> The "Selecting the channel strip" – "LINE" menu is activated (page 26). • Press the button. —> The "ASI transfer rate" – "ASI RATE" menu is activated. - 24 - PCIM 1000...
  • Page 25: Asi Transfer Rate

    "cont." (continuous – standard) and using the set to "burst". —> Setting "cont." The data packets of the user data are spaced out evenly in the trans- port stream. - 25 - PCIM 1000...
  • Page 26: Selecting The Channel Strip

    Bx 4A MODE/PORT 1234 Switching the IP address off or on • Press the buttons to switch "off" or "on" the output IP address of the channel strip. - 26 - PCIM 1000...
  • Page 27: Quantity Of Data Packets

    Bx 4A PKTS / FEC Defining the quantity of data packets • Using the buttons define the quantity of MPEG data packets in one IP data packet ("1" … "7"). - 27 - PCIM 1000...
  • Page 28: Output Ip Address

    IP ad- dress to be set. • Using the buttons set the desired IP address. • Press the button. —> The "LAN data rate" – "LAN RATE" menu is activated. - 28 - PCIM 1000...
  • Page 29: Lan Data Rate

    4A/B INPUT QAM256 6900 • Use the buttons to position the cursor under the digit to be set for the symbol rate then use to set the corresponding symbol rate. • Press the button. - 29 - PCIM 1000...
  • Page 30: Input Channel / Input Frequency

    With this setting the transport stream of channel strip "B" is routed to the trans- port stream of channel strip "A" and therefore cannot be set in channel strip "B". Programming channel strip "B" the transport stream coming from the ASI input can be processed only. - 30 - PCIM 1000...
  • Page 31: Inroute" Setting "A+B+Asi=1 Asi=2

    Slot 4, channel strip "A" "TV" Type of service "Television" " + " The currently selected service is activated. "01/06" The 1st of 6 services is being displayed . "Das Erste" Name of the service - 31 - PCIM 1000...
  • Page 32 In this mode you can test the settings of the station filter again or change them if necessary. • In the "PROGRAM Filter on" menu the station filter switched on can be switched "off" using the buttons if necessary. - 32 - PCIM 1000...
  • Page 33: Inroute" Setting "A+Asi=1 B+Asi=2" And "A+Asi=1 A+Asi=2

    P u t data r at e In this menu the current data rate is displayed. Bx 4A DATARATE 72956 kbps • Press the button. —> The "Network Information Table" – "NIT" menu is activated. - 33 - PCIM 1000...
  • Page 34: Network Information Table (Nit)

    (=>"Make") you can generate a NIT. —> IF you generate a NIT using the menu "NIT" of any cassette, all channels received via the PCIM 1000 will not be included. If you would like to modulate these channels e.g. to a DVB-C transponder later on, you can manually add this transponder "in advance"...
  • Page 35: Deleting A Pid

    • Set the hexadecimal number using • Use to set the cursor to "off" and switch to "on" (rename) using the buttons. • Press the button. —> The "Factory reset" – "FACTORY Defaults" menu is activated. - 35 - PCIM 1000...
  • Page 36: Factory Reset

    "M" – Station filter is switched on. —> By pressing the button, you will be returned to the menu item "Selecting the channel strip" without saving the programmed data (page 26). —> If necessary set channel strip "B". - 36 - PCIM 1000...
  • Page 37: Operation With A Ca Module

    —> By pressing the button you can skip the "CA module" – "CA" menu and activate the "Output data rate" – "DATARATE" menu (page 33). • Press the button to activate the "MENU" menu of the CA module. - 37 - PCIM 1000...
  • Page 38 CA module and are returned to the "CA module" – "CA" menu. • Press the button. —> The "Descrambling services" – "Edit" menu is activated. - 38 - PCIM 1000...
  • Page 39: Descrambling Services

    —> The filter is activated. The display shows the "CA module" – "CA" menu. Bx 4A Menu <= => Edit • Press the button. —> The "Output data rate" – "DATARATE" menu is activated (page 33). - 39 - PCIM 1000...
  • Page 40: Final Procedures

    EMC regulations securely. • Securely tighten the cable bolted connections fingertight using an appropri- ate open-ended spanner. • Mount the front cover (see assembly instructions of the head-end station). - 40 - PCIM 1000...
  • Page 41 Declaration of CE conformity - 41 - PCIM 1000...
  • Page 42 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH V37/17042014...
