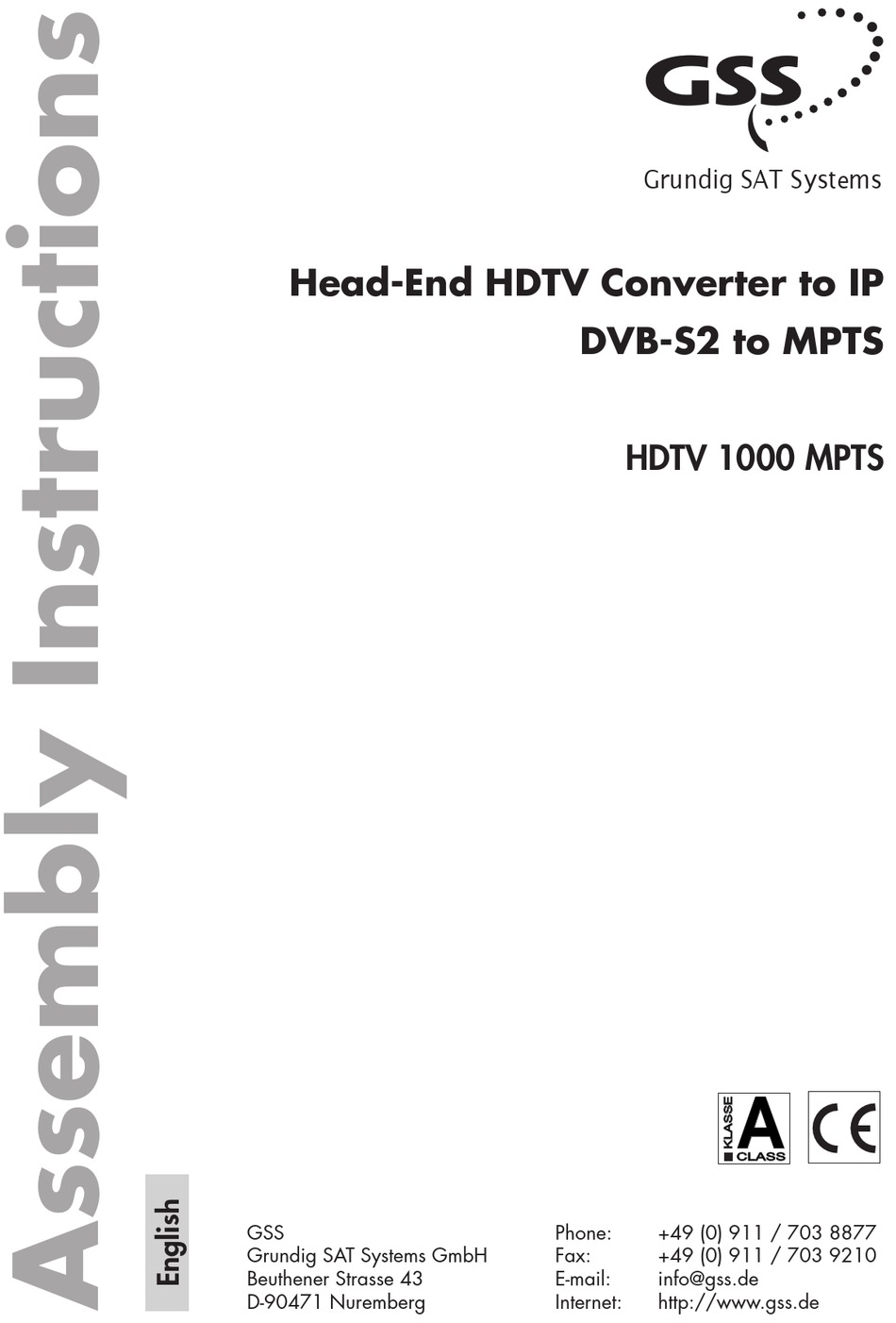

- Page 1 Grundig SAT Syst ms Head-End HDTV Converter to IP DVB-S2 to MPTS HDTV 1000 MPTS C LASS CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de...
-
Page 2: Table Of Contents
Contents 1 Safety regulations and notes ..................4 2 General information ....................5 2.1 Packing contents ..................5 2.2 Meaning of the symbols used ................5 2.3 Technical data .....................5 2.4 Description ....................6 2.4.1 Input signal path “INROUTE” ..............7 2.4.1.1 Menu setting “A+ASI=1 B+ASI=2”........7 2.4.1.2 Menu setting “A+B+ASI=1 ASI=2”........7 2.4.2 Output signal path “OUTROUTE”... - Page 3 Setting the port number ................26 Defining the quantity of data packets ............27 Setting the forward error correction .............27 Setting the transmission channel ..............27 Setting the output IP address ...............29 Setting the LNB oscillator frequency .............29 Setting the input symbol rate ...............30 Setting the DVB mode ................30 Setting the input frequency ................31 Testing the signal to noise ratio ..............32...
-
Page 4: Safety Regulations And Notes
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at ”www.gss.de”. • For further information please read the assembly instructions for the head-end station used. -
Page 5: General Information
General information 2.1 Packing contents 1 Cassette HDTV 1000 MPTS 2 HF cables 1 CD (assembly instructions) 1 Brief assembly instructions 2.2 Meaning of the symbols used Important note —> General note • Performing works 2.3 Technical data The devices meet the following EU directives: 2006/95/EC, 2004/108/EC The product fulfils the guidelines and standards for CE labelling. -
Page 6: Description
ASI interfaces Standard: DIN EN 50083-9 Format: MPEG ISO IEC 13818-1 User data rate: 2 … 90 Mbit/s 75 Ω Impedance: Level (input / output): 800 mV ± 10% Return loss (input): > 17 dB (5 … 270 MHz) Connections SAT inputs: 2 F sockets LAN:... -
Page 7: Input Signal Path "Inroute
The transport stream fed via the ASI socket can be inserted into the transport streams of the receiving stages via the TPS module. The signal path is set in the menu items input signal path “INROUTE” and output signal path ”OUTROUTE”. 2.4.1 Input signal path “INROUTE”... -
Page 8: Output Signal Path "Outroute
2.4.2 Output signal path “OUTROUTE” 2.4.2.1 Menu setting “ASI => ASI” The transport streams 1 (channel strip “A”) and 2 (channel strip “B”) equipped with IP addresses are provided at the LAN interface. The transport stream from the ASI input “TS ASI” is made available via the ASI output. Channel strip "A"... -
Page 9: Menu Setting "2=>Asi Asi=>Mb
You can find the current operating software for the control unit and the cassette, the software “BE-Flash” required for updating and the current as- sembly instructions on the website “www.gss.de”. The cassette is designed for use in the following head-end stations: –... -
Page 10: Software Query
2.5 Software query Control unit If necessary, you can activate the indication of the software version of the con- trol unit manually: • Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. “V 40” appears. Cassette After activating the cassette the software version of the cassette is displayed (s. -
Page 11: Assembly
Assembly 3.1 Installing the cassette – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way. –... -
Page 12: Cassette Overview
The operating software of the cassette can be updated via the 9-pin D-SUB socket “RS 232” using a PC or notebook and the software “BE-Flash”. You can find the current operating software on the website “www.gss.de”. MAC address - 12 -... -
Page 13: Connecting The Cassette
3.4 Connecting the cassette • Connect the SAT IF input cables to the SAT IF inputs (channel strip “A”) and (channel strip “B”) (fig. chap. 3.3). • Connect the LAN socket • Connect the ASI input and the ASI output to the peripheral ASI devices. -
Page 14: The Control Panel At A Glance
The control panel at a glance 4.1 Menu items Program the cassette using the buttons on the control unit of the head-end station. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the key to select the following main menu items: –... -
Page 15: Programming
Programming 5.1 Programming procedure 5.1.1 Channel strips “A” (without CA module) and “B” Ein / On BE–Remote V 40 please wait … t > 10 s Box 1 ……… ……… ……… Box 4 DVBS2-MPTS Box 5 ……… V 10 – – – ………... - Page 16 Bx 4 OUTROUTE Bx 4 ASI RATE 1=>ASI ASI=>MA 108000 KBits ASI=>ASI 1=>ASI ASI=>MA page 14 2=>ASI ASI=>MB 188 / 204 Bx 4 ASI OPTION positive / negativ 188 pos. cont. continuous / burst page 17 Bx 4 LINE Line A <= =>...
- Page 17 Services entfernen / hinzufügen Bx 4A PROGRAM Bx 4A TV 01/07 Removing / activating services nächster Service (Programm) Filter Das Erste next service (station) Services entfernen / hinzufügen Bx 4B TV 01/09 Removing / activating services nächster Service next service Services entfernen / hinzufügen …...
-
Page 18: Channel Strip "A" With Ca Module
5.1.2 Channel strip “A” with CA module C page 17 Bx 4A 3.3 V / 5.0 V Supply 5.0 V Bx 4A on / off PID Check Bx 4A Menu <= => Edit X / 0 Bx 4A 01/03 MENU Bx 4A TV 04/09 X –... -
Page 19: Programming The Cassette
5.2 Programming the cassette —> Pressing the button for longer than 2 seconds cancels the pro- gramming procedure. This takes you back to the program item “Selecting the cassette” from any menu. Any entries that have not been saved are reset to the previous settings. -
Page 20: Setting The Ethernet Parameters
• Press the button. —> The “Setting the Ethernet parameters” – “ETHERNET” menu is activated. Setting the Ethernet parameters In this menu you specify whether the Ethernet parameters for the prospectively intended control of the cassette are entered automatically by a connected server (“DHCP”), or whether you want to enter them manually (“stat”). -
Page 21: Setting The Address Range
Bx 4 Bx 4 ETHERNET ETHERNET Bx 4 IP-ADDR stat stat => => Options Options 192.168. 0.128 stat / DHCP stat / DHCP • Use the buttons to place the cursor under the digit ◀ ▶ of the IP address displayed to be set and use to set the IP address wished. -
Page 22: Setting The Address Of The Gateway
Setting the address of the gateway The address of a gateway (server) can be set in this menu. If no gateway is used you can skip this setting. Bx 4 IP-GATEWAY 192.168. • Use the buttons to place the cursor under the digit ◀... -
Page 23: Selecting The Input Signal Path
Selecting the input signal path In this menu you define the signal path of the input transport streams. Menu setting “A+ASI=1 B+ASI=2” (s. chap. 2.4.1.1, page 7). Menu setting “A+B+ASI=1 ASI=2” (s. chap. 2.4.1.2, page 7). Bx 4 INROUTE A+ASI=1 B+ASI=2 / A+B+ASI=1 ASI=2... -
Page 24: Setting The Asi Transfer Rate
• Use the buttons to select the signal path wished. • If you do not want to do ASI settings, press the button. —> The “Selecting the channel strip” – “LINE” menu is activated (page 26). • Press the button. —>... -
Page 25: Setting The Asi Options
Setting the ASI options In this menu you define the size of the data packets, their polarity and the type of transmission. For this setting please take the required information from the documentation (technical data) of the ASI component to be connected. -
Page 26: Selecting The Channel Strip
Selecting the channel strip Bx 4 LINE Line A <= => Line B Line A Line B • By pressing select channel strip “A” (“Line A”) or select ◀ channel strip “B” (“Line B”) by pressing the button. ▶ —> The “Switching the IP address off or on, selecting the transmission protocol, setting the port number”... -
Page 27: Defining The Quantity Of Data Packets
Selecting the transmission protocol • Press the button to position the cursor under ”UDP” or ▶ ”RTP”. • Using the buttons to select the transmission protocol wished: “UDP” – The User Datagram Protocol is for the connec- tionless transmission of data to a certain applica- tion. - Page 28 Bx 4A PKTS / FEC off / 10/9 … 20/19 Annex A / Annex B 1 … 7 Defining the quantity of data packets • Using the buttons define the quantity of MPEG data packets in one IP data packet (”1” … ”7”). Setting the forward error correction •...
-
Page 29: Setting The Output Ip Address
Setting the output IP address In this menu you set the output IP address for the channel strip selected. This IP address the services wished are allocated in the station filter. Bx 4A OUT-IP 227. 40. 50. 60 Allocate different IP addresses to the channel strips. •... -
Page 30: Setting The Input Symbol Rate
• Press the button. —> The “Setting the input symbol rate, setting the DVB mode” – “SYMBOL” menu is activated. Setting the input symbol rate Setting the DVB mode The symbol rates of the satellite transponders can be found in the current channel table of the satellite operator, in various satellite magazines and in the Internet. -
Page 31: Setting The Input Frequency
Setting the input frequency If three dots “ … “ appear in the second line of the display, the cassette is in the “station search” mode. Please wait until the process has finished. Once the HF receiver has synchronised to the input signal, any offset to the target frequency is displayed in MHz, e.g. -
Page 32: Testing The Signal To Noise Ratio
Testing the signal to noise ratio In this menu you can estimate the quality of the input signal. Bx 4A 12.0 dB (+ 9.6) OK Current signal to noise ratio This value shows the difference between the quality of the input signal and the threshold of the tuner at this type of modulation. -
Page 33: Setting The Station Filter
If the input signal path “A+B+ASI=1 ASI=2” is selected the station filter of channel strip “B” is used in the channel strip “A”. Therefore perform the settings for channel strip “B” according to the pages 29 … 31 (LNB oscillator frequency, input symbol rate, input frequency) before activating the “Set- ting the station filter”... - Page 34 ”INROUTE” menu setting ”A+B+ASI=1 ASI=2”. Channel strip “A” Services entfernen / hi Bx 4A PROGRAM Bx 4A TV 01/07 Removing / activating nächster Service (Prog Filter Das Erste next service (station) Services entfernen / hi Bx 4B TV 01/09 Removing / activating nächster Service next service Services entfernen / hi...
- Page 35 system and head-end station, as well as the previ- ously adjusted settings for the cassette and the com- ponents connected to the ASI input. —> The display shows e.g.: Bx 4A TV + 01/07 Das Erste Meaning of the indicators in the example: “Bx 4A”...
- Page 36 —> The filter is activated. The display shows “PROGRAM Filter on”. —> If services are activated the corresponding PIDs (au- dio, video, text) are inserted into the transport stream and the PAT and SDT tables are updated. Test the status of the individual services: •...
-
Page 37: Displaying The Output Data Rate
• Press the button. —> The “Displaying the output data rate” – “DATARATE” menu is activated when the channel strips “A” without a CA module installed and “B” are programmed. Programming the channel strip “A” with a CA module installed the “Setting the operating voltage for the CA module”... -
Page 38: Network/Operator Identification
Network/operator identification In this menu, you can change the network/operator identi- fication (CAT-ID – Conditional Access Table - Identification), for example of the visAvision transponder (Eutelsat 8° West). Bx 4A CAT-ID 0xDE00 on / off CAT is not to be changed. •... -
Page 39: Deleting A Pid
Deleting a PID In this menu a PID of the transport stream can be deleted. Bx 4A DROP PID 0x0000 on / off • Use the buttons to place the cursor under the re- ◀ ▶ spective digit of the hexadecimal number of the PID to be deleted (“0x0000”) and set the hexadecimal number using •... -
Page 40: Saving Settings
Saving settings • Press the button. —> The settings are saved. —> You will be returned to the menu item “Selecting the cassette” via connection (page 19). —> If functions of the TPS module are activated, their sta- tus is shown in the second line of the display: “M”... -
Page 41: Operation With A Ca Module
5.2.1 Operation with a CA module In order for this function of the CA module to be possible, services capable of being decoded by the CA module you are using and your smart card must be selected in the “Set- ting the station filter”... -
Page 42: Configuring The Ca Module
• Use the buttons to switch “off” or “on” the PID moni- toring. • Press the button. —> The “Configuring the CA module” – “CA” menu is acti- vated. Configuring the CA module The menu varies according to which CA module you are using. -
Page 43: Decoding Services
Meaning of the indicators: “Bx 4A” – Slot 4, channel strip “A” “01/03” – The first of three menu items is activated. “MENU” – The menu of the CA module is activated. For the explanation of further details please use the operat- ing instructions of the CA module used. - Page 44 Meaning of the indicators in the example: “Bx 4A” – Slot 4, channel strip “A” “TV” – ”Television” (type of service) “X” – The currently selected service is decrypted. “04/09” – The 4th of 9 services is being displayed. “..” –...
-
Page 45: Final Procedures
Final procedures After installing the head-end station, upgrading accessories or installing cassettes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regula- tions securely. • Securely tighten the cable bolted connections using an appropriate open- ended spanner. - Page 46 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS GmbH 04092009...
