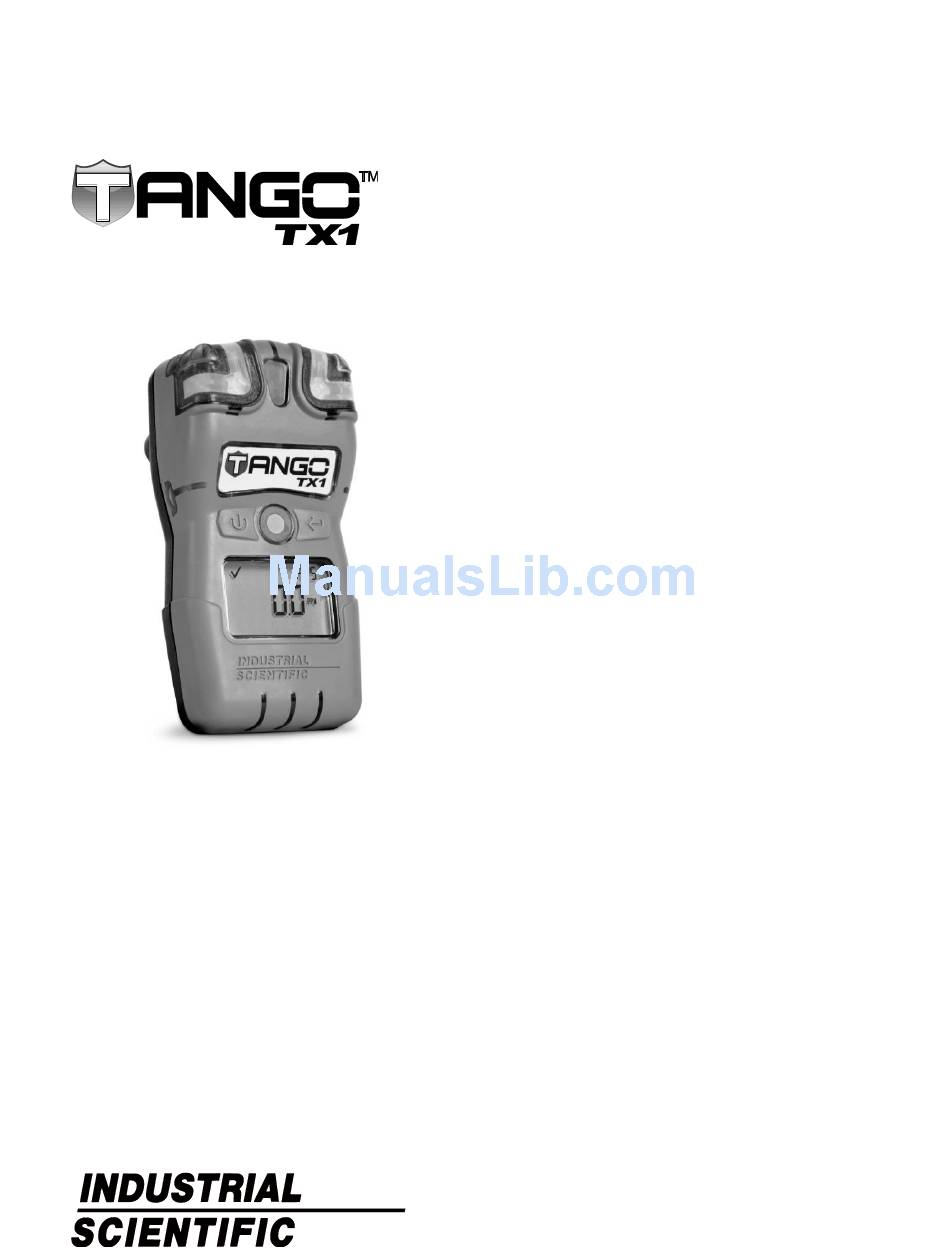

Page 1 Product Manual The Essential Guide for Safety Teams and Instrument Operators Part Number: 17154993-1 Edition:7 November 10, 2016 AUTHORIZED DISTRIBUTOR: GasDetectorsUSA.com Houston, Texas USA sales@GasDetectorsUSA.com 832-615-3588...
Page 3: Table Of Contents
Contents Certifications ....................................1 Product Overview ..................................2 DualSense Technology ................................3 ® Multiplane Sensor Ports and Data Memory ..........................3 Dual-mode Operating System ............................... 3 Gas alert and alarm features ................................ 3 Other key features ..................................4 Product Specifications .................................. 4 Introduction ....................................
Page 4 Table 5.3 Warning and Failure Screens ............................38 Figure 6.1 Disassembled Tango TX1 ............................. 40 Figure 6.2 Disassembled Tango TX1 case top assembly ....................... 40 Table 6.1 Key for the Tango TX1 diagram ............................41 Table 6.2 Service tasks ................................... 42 Table A.1.
Page 5: Certifications
Product Specifications Certifications Certifications for the Tango TX1™, at the time of this document's publication, are listed below in Tables 1.1. To determine the hazardous-area classifications for which an instrument is certified, refer to its label or the instrument order.
Page 6: Product Overview

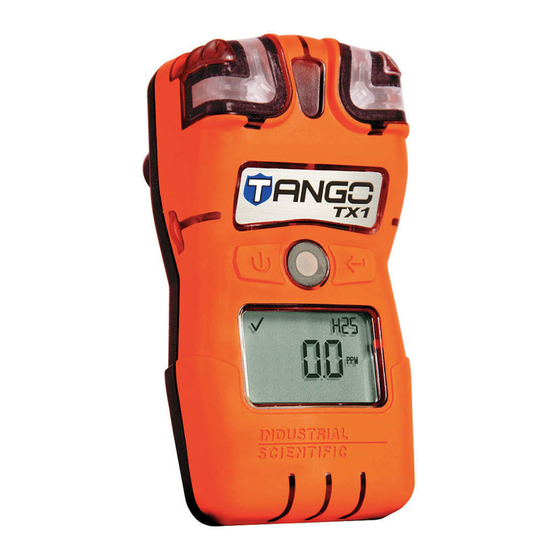

Contact your service representative immediately if you suspect that the unit is working abnormally. Product Overview The Tango TX1 is a portable, long-life, single-gas monitor (instrument) for personal protection. It is a diffusion instrument for use in detecting and measuring gas present in open space. Based on the customer’s order, two redundant sensors –...
Page 7: Dualsense ® Technology
ORTS AND EMORY The Tango TX1’s multi-plane sensor ports each sample air from three directions; this promotes continuous operation if one or two planes become obstructed. Since the TX1 measures gas at two second intervals, and continuously logs data every ten seconds, the data log can store approximately three months of data for a unit that is on 24 hours a day and has two installed, operational sensors.
Page 8: Other Key Features
10 decibels (dB). The Tango TX1 is iNet ready and compatible with the Tango TX1 iNet DS and DSX docking stations. Product Specifications Effective use of the Tango TX1 includes knowledge of the instrument's specifications and its sensor and battery specifications (see Tables 1.4 through 1.6).
Page 9: Table 1.5 Sensor Specifications
Table 1.5 Sensor specifications Gas type (abbreviation) Part Number Carbon Monoxide (CO) Carbon Monoxide with low Hydrogen Sulfide Hydrogen cross-sensitivity (CO/H Low) 17155161 17155823 17155164 Properties Category Toxic Toxic Toxic Technology Electrochemical Electrochemical Electrochemical DualSense™ capable Operating conditions Temperature range -40 to +50 °C -20 to +50 °C -40 to +50 °C...
Page 10: Table 1.5 Sensor Specifications
Table 1.5 Sensor specifications Gas type (abbreviation) Part number Nitrogen Dioxide (NO Sulfur Dioxide (SO 17155162 17155163 Properties Category Toxic Toxic Technology Electrochemical Electrochemical DualSense™ capable Operating conditions Temperature range -40 to +50 °C (-40 to +122 °F) -20 to +50 °C (-4 to +122 °F) RH range 15-95% 15-95%...
Page 11: Introduction
When docked, instruments that are supported by iNet® Control or DSSAC (Docking Station Docking. Software Admin Console) will be maintained for all scheduled bump tests and calibrations, synchronized for any changes to settings, and upgraded for improvements from Industrial Scientific.
Page 12: Recommendations
If conditions do not permit daily bump testing, the procedure may be done less frequently based on company safety policy. The Tango TX1 self-test is performed automatically during the start-up process. It can be user-initiated from operation mode. Note: The use of calibration gases not provided by ISC may void product warranties and limit potential liability claims.
Page 13: First Use
First Use To prepare the Tango TX1 for first use, qualified personnel should configure and calibrate the unit. Wearing the Instrument Based on the U.S. Department of Labor's Occupational Safety and Health Administration (OSHA) definition of the breathing zone, it is recommended that the unit be worn within a 25.4 cm (10") radius of the nose and mouth.
Page 14: Unpacking The Instrument
Calibration and bump test tubing 60.96 cm (2 ') of urethane tubing; 4.762 mm (3/16 ”) ID Reference Guide Companion to the Tango TX1 Product Manual Final Inspection & Test Report and The Final Inspection & Test Report includes these values:...
Page 15: Hardware Overview
Hardware Overview The instrument's main hardware components are identified below (see table 3.2). Table 3.2. Hardware overview Tango TX1 Visual alarm (or alert) indicators Visual alarm (or alert) indicator IrDA (infrared data exchange) window Sensor port 1 and dust filter...
Page 16: Display Overview
Display Overview The visual test screen shown below contains all the indicators that can appear on the display screen. Each indicator is stationary and appears only when relevant to the task being performed. For example, in the gas-monitoring screen shown below (numeric display), the following apply: the check mark indicates there are no sensor faults;...
Page 17 Table 3.3 Display screens, indicators and abbreviations The calibration icon is used in combination with other indicators to communicate calibration information. A process is in progress. In configuration mode, indicates a time-based setting (e.g. bump test response time). Used in combination with other indicators to communicate maintenance required warnings. In configuration mode, indicates a date-based setting (e.g., bump test interval).
Page 18: Start-Up And Shutdown
Start-up and Shutdown The start-up and shutdown sequences are outlined below and feature reproductions of the display screens the instrument operator will see during these processes (see Table 3.4). Instructions accompany any display screen where the instrument operator must press a button to proceed. The instrument operator may be prompted to complete the time- and date-setting tasks during start-up.
Page 19 Shutdown Press and hold for five seconds. After a five-second countdown: The instrument powers off if;  the always-on feature is disabled or Countdown  the always-on feature is enabled and the security code is set to 000. If this screen is activated, the shutdown process is security-code protected. To complete shutdown, the user must enter the correct three-digit code.
Page 21: Configuration
Instrument Preparation and Use Configuration Operation Zero, Calibration, and Bump Testing Configuration Read and understand all configuration instruction before configuring the unit. As noted in "Recommended Practices", the unit should be configured before first use, when there is a change in the installed sensor type (e.g., H S sensors are replaced with CO sensors), and as needed.
Page 22: Table 4.1 Configuration Instruction
Any changes made in configuration mode are automatically saved to the unit and take effect immediately. Upon next docking, settings are updated according to the unit's settings in iNet Control. The configuration-mode loop is outlined below (see Table 4.1). Instructions for button use accompany each configuration-mode display screen.
Page 23 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, alarm, sensor type, and configuration icons, with the measurement unit and current setting. The gas-alert setpoint is less than the low alarm setpoint. When the value is set lower than the low gas alarm setpoint, the gas-alert will notify the operator before the low alarm notification.
Page 24 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, lock, configuration, and STEL icons. The technician can enable or disable the option for operation-mode access. When enabled, the instrument operator is permitted to view and clear the unit's STEL reading while the unit is in operation mode.
Page 25 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, configuration, and calendar icons, with the current date setting. The year is displayed in the lower left corner. In the main display, the first two digits represent the date and the second two digits represent the month.
Page 26 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, lock, configuration, and bump test icons, with the selection number in the main area. The technician can enable or disable this operation mode feature. When enabled, the instrument operator is given access to bump test the unit from operation Operation-mode bump test mode.
Page 27 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, clock, configuration, and bump test icons, with the current setting in seconds in the main area. A sensor passes a bump test when it senses the specified percentage of calibration gas within the specified response time setting.
Page 28 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, lock, configuration, and calibration icons. The technician can enable or disable this operation-mode option. When enabled, the instrument operator is given access to calibrate the unit from operation mode.
Page 29 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, alarm, configuration, warning, and “dOC”, icons, with the selection number in the main area. The technician can disable, or enable the warning, and choose the warning type. When enabled, the unit will notify the user that docking to a station is due, based on the selected option.
Page 30 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, lock, and configuration icons, with the current security code in the main area. The security code controls two things: access to a unit's configuration mode and the ability to power off a unit that is configured for always-on operation. If the security code is set at 000, entry to configuration mode is not security-code protected, and an always-on unit can be powered off without a security code.
Page 31 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, “LAn” (language), and configuration icons, with the current setting. The technician can choose from these options: “En” = English “F” = French Language Increments the value. One press saves the displayed value and activates the next configuration-mode screen.
Page 32 Table 4.1 Configuration instruction Setting Description Button Button effect This display screen features the status, alarm, lock, configuration, and “gAS” icons, with the current setting in the main area. The technician can enable or disable the gas-alert feature. When enabled, the unit will notify the user when a detected gas concentration may be approaching alarm levels.
Page 33: Operation
Operation In operation mode, the following apply:  With successive short presses of the on-off-mode button ( ), the instrument operator can scroll through the operation-mode loop.  The zero, calibration, and bump test processes can be completed only if these task settings are enabled for operation-mode access.
Page 34 Table 4.2 Operation instruction Screen Screen description Buttons Button effects This display screen is activated if the unit is enabled for operation-mode zeroing. It features the check mark and zero icons. Initiate zero Starts the zero process (see "Zero, Calibration, and Bump Testing"). Activates the next enabled operation-mode screen.
Page 35: Zero, Calibration, And Bump Test
Zero, Calibration, and Bump Test Perform the zero, calibration, and bump testing tasks in an area known to be nonhazardous. Table 4.3 Zero, calibration, and bump test Supplies Calibration cup (shipped with the unit) Calibration tubing (shipped with the unit) Calibration gas cylinder suitable for the installed sensors and the unit's calibration gas settings Positive flow regulator suitable for the calibration gas cylinder Preparation...
Page 36: Table 4.3 Zero, Calibration, And Bump Test
Table 4.3 Zero, calibration, and bump test Calibration Calibration apply gas Initiate calibration Place the calibration cup over the case top; align its top groove To start the calibration Once the calibration is with the small ridge at the top of the instrument. process, press .
Page 37: Table 4.3 Zero, Calibration, And Bump Test
Table 4.3 Zero, calibration, and bump test Bump testing Bump test apply gas Initiate bump test Place the calibration cup over the case top; align its top groove Note: From anywhere in the Once the bump test is with the small ridge at the top of the instrument. operation-mode loop, press started, the apply-gas screen until the initiate-bump-test...
Page 39: Overview
Take seriously all alarms, warnings, and indicators, and respond to each according to company policy. Alarms The Tango TX1 instruments have alarms of two different intensities, high and low. Alarms are persistent: they turn off when the alarm-causing event is no longer detected; however, if the instrument’s alarm latch is enabled, an alarm will remain on until the user presses to turn it off.
Page 40: Table 5.1 Alarm Events (Listed)
Table 5.1 Alarm Events (listed) Alarm Level : High Gas Present S is shown.) Gas present, over-range Gas present, negative over- Gas present, high alarm STEL alarm alarm range alarm Nongas high alarms System alarm Critical low-battery alarm Sensor error alarm (both No sensor installed (occurs after ten minutes sensors)
Page 41: Warnings And Failures
Warnings and failures Warnings turn on and off repeatedly. The more urgent the warning, the shorter the time between on-off occurrences: a warning that repeats every two seconds is more urgent than a warning that repeats every thirty seconds. Warnings persist until the event is resolved. In some cases, an unresolved warning will become more urgent in frequency.
Page 42: Table 5.3 Warning And Failure Screens
*Signals (visual, audible, and vibration) vary based on instrument settings. ** Occurs for ten minutes before critical low-battery alarm. Note: For additional assistance in resolving any alert, warning, or alarm, see a supervisor or contact Industrial Scientific (see "Contact Information").
Page 43: Service Instructions
Service and Warranty Service Instructions Supplies Three-dimensional Diagrams Service Tasks Warranty Policy Limitation of Liability Service Instructions Perform all service tasks on a nonconductive surface in a well-lit area that is known to be nonhazardous. Wear grounding straps to prevent electrostatic discharge (ESD) which can cause damage to the unit's electronics.
Page 44: Three-Dimensional Diagrams
Refer to the three-dimensional diagrams for disassembled views of the instrument and its case top assembly. Use the diagram number to identify parts, part numbers, and field-replaceable items (see Table 6.1). Figure 6.1 Disassembled Tango TX1 Figure 6.2 Disassembled Tango TX1 case top assembly...
Page 45: Table 6.1 Key For The Tango Tx1 Diagram
Table 6.1 Key for the Tango TX1 diagram Diagram Part name Field Part Notes number replaceable number Case top assembly 17153951 Assembly includes case top (17153952); sensor water barriers and gaskets The case top can be replaced (17154219 and 17154051, respectively);...
Page 46: Service Tasks
ERVICE ASKS Table 6.2 Service tasks Power off the unit before disassembling or performing any service task. Instrument disassembly  Using a torx screwdriver, Hold the case bottom near Continue to lift the case top straight up to remove it and to remove all four screws from the upper screw holes;...
Page 47 Table 6.2 Service tasks Guide the new filter— Using a clean, soft cloth, Place the gasket packet on the work surface. adhesive side down—into the press gently around the filter Using the tweezers, scrape lightly across the paper to the filter opening.
Page 48 Table 6.2 Service tasks  The plates are adhered to a paper backing. Bend the paper Using a clean, soft cloth, backing to separate the plate. press gently into place. Lightly grip the plate near its top with tweezers; gently lift to completely remove from paper backing.
Page 49 Table 6.2 Service tasks Clip removal and attachment (garment clip shown)  Lift the clip's cover. Use a Philips screwdriver to Lift the clip to remove it. access the clip's screw. Turn Close the clip; store it for counterclockwise to loosen future use.
Page 50: Warranty Policy
Buyer’s actual damages or the price paid to Industrial Scientific for the Products that are the subject of Buyer’s claim. All claims against Industrial Scientific must be brought within one year after the cause of action arises, and Buyer expressly waives any longer statute of limitations.
Page 51 It is expressly agreed by the parties that any technical or other advice given by Industrial Scientific with respect to the use of the goods or services is given without charge and at Buyer’s risk; therefore, Industrial Scientific assumes no obligations or liability for the advice given or results obtained.
Page 52: Appendix
100 ppm hydrogen will produce a reading of approximately 60 ppm carbon monoxide. Marking Requirements Table A.2. ATEX and IECEx marking requirements ATEX markings IECEx markings Industrial Scientific Corp. Industrial Scientific Corp. 15205 USA 15205 USA TANGO TX1...
Page 53 Notes...
Page 54 Notes...
Page 56: Contact Information
服务热线：+86 400 820 2515 To locate a nearby distributor of our products or an Industrial Scientific service center or business office, visit us at www.indsci.com. Rendez-vous sur notre site Web www.indsci.com, si vous voulez trouver un distributeur de nos produits près de chez vous, ou, si vous recherchez un centre de service ou un bureau Industrial Scientific.
