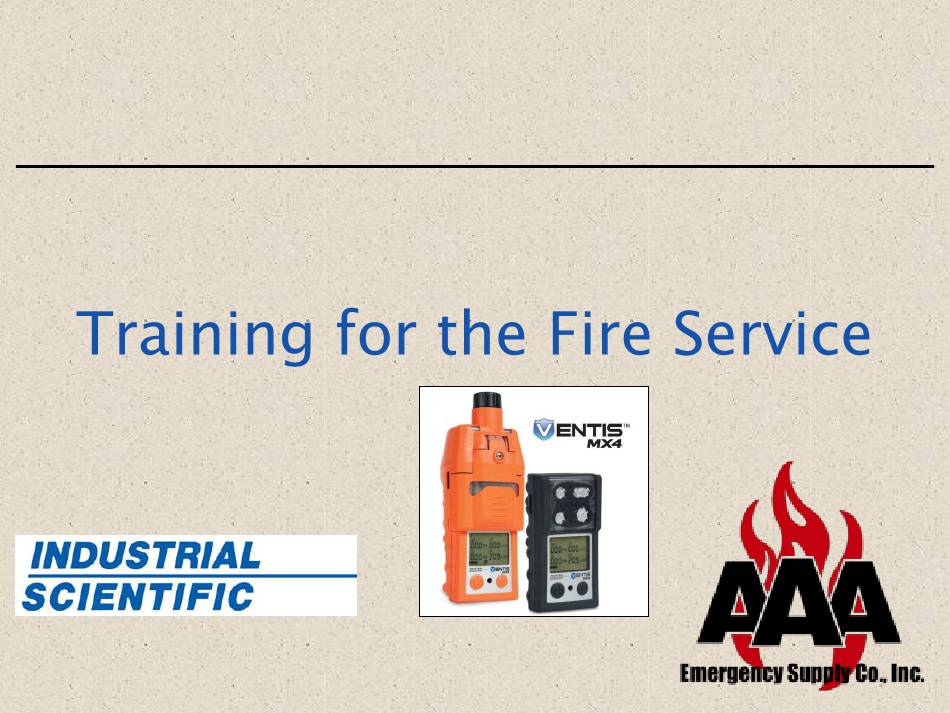

  • Page 1 Industrial Scientific Ventis MX4: 4 Gas Meter...
  • Page 2 Objectives: • Provide a foundation for further training on your Ventis MX4 • Highlight how your Ventis MX4 benefits fire service professionals • Review basic care and maintenance for your Ventis MX4...
  • Page 3 This training does not supersede users’ reading product information and manuals that are received with these products. Be sure to consult your department or organizational guidelines in the operation of these products.
  • Page 4 Key Features: • Over-Molded Composite Construction • Four Gas Configuration in a Compact Package • Lithium Ion Extended Range Battery • Integrated Sample-Draw Operation (Integrated Pump)
  • Page 5 Key Features (Cont’d): • PEAK Reading Storage • Short Term and TWA Levels • Audible, Visual & Vibrating Alarms • On-Board Continuous Data Logging • 4 Individual Sensors (many manufacturers have 3 sensors, with 1 sensor doing double work).
  • Page 6 Know your Gas Meter: Integrated Sampling Pump Visual Alarm Lights Backlit LCD Two Button Operation...
  • Page 7 Know your Gas Meter: Left Button Right Button (Power/Menu (Enter/Command Button) Button)
  • Page 8 Sensors (Most Common Fire Service Configuration): • LEL: Lower Explosive Limit • O : Oxygen • CO: Carbon Monoxide • H S: Hydrogen Sulphide • Always Remember: 0, 0, 0, 20.9...
  • Page 9 LEL: Lower Explosive Limit • Alarm is set at 10% LEL • LEL: Minimum mixture of combustible gas in air that will cause an explosion if exposed to ignition.
  • Page 10 : Oxygen O • Alarm Levels: • Oxygen Deficiency (Low End): 19.5% • Oxygen Enriched (High End): 23.5%...
  • Page 11 CO: Carbon Monoxide • Alarm is set at 35 PPM • CO is odorless, colorless, and toxic. • CO is a by-product of combustion and is lighter than air.
  • Page 12 CO: Carbon Monoxide (cont’d): Levels of Carbon Monoxide Level (in PPM) Time Exposed (in Minutes) Effects 60 - 120 Headaches/Nausea/Dizziness Headaches/Nausea/Dizziness Death 3200 Death 12800 1 - 3 Death...
  • Page 13 S: Hydrogen Sulphide H • Alarm is set at 10 PPM • Odor of rotten eggs is a telltale sign. • H S desensitizes our sense of smell at high concentrations. • H S is a product of decomposition of organic matter.
  • Page 14 S: Hydrogen Sulphide (cont’d) H • OSHA Permissible Exposure Limit (PEL): 8 Hour TWA at 10 PPM H2S Exposure Effects by PPM Exposure (PPM) Likely Side Effects 50-100 Eye Damage 100-150 Sense of Smell Disappears 320-530 Pulmonary Edema 530-1000 Rapid Breathing/Loss of Breath Over 1000 Immediate Collapse...
  • Page 15 Starting Your Ventis MX4: • Hold the Power (left) Button for 3 seconds • A 20 second warn-up will begin • Integrated pump will initiate at this time as well. • Always perform start-up prior to entering suspected IDLH environment.
  • Page 16 **Most Important Takeaway**: • Required starting point for gas sampling: LEL: 0 % S: 0 ppm : 20.9% CO: 0 ppm • This can be accomplished one of two ways: 1. Gas detector will attempt to self clear during start-up 2.
  • Page 17 Sensing & Alarms: Gas Detector Sensors & Alarm Levels Sensor Sensing Purpose Alarm Activation Carbon Monoxide @ 35 PPM Hydrogen Sulphide @ 10 PPM @19.5% (Low) Oxygen @ 23.5% (High) Combustible @ 10%...
  • Page 18 Battery: • Battery life indicator is on the lower-left side of the display. • 20 hours of operation on a full charge in diffusion mode • 12 house of operation on full charge with integrated pump...
  • Page 19 Functions from the Menu: • Button Function: o Left Button: starts the menu of choices o Right Button: confirms menu choices • First (home) screen is your monitoring screen which shows your 4 gas readings. • Press the left button to cycle through the various functions.
  • Page 20 Functions from the Menu: • Function #1: Calibration o Symbol: A Calibration Cylinder o This indicates the number of days since last calibration.
  • Page 21 Functions from the Menu: • Function #2: Zero Out o Once you confirm your choice, a clock appears and the unit will self zero out. o Zero in fresh clean air o Meter Will:  Count down for 15 seconds, then beep ...
  • Page 22 Functions from the Menu: • Function #3: PEAKS o This function will display the following:  The highest readings of the 3 gases  The lowest reading of O  *All PEAKS readings are since the unit was last turned on. o To clear PEAKS, press the right button again, or shut off detector.
  • Page 23 Functions from the Menu: • Function #4: TWA o Symbol: TWA at bottom of screen o This function will display the Time Weighted Average of CO and H S for 8 hours.
  • Page 24 Functions from the Menu: • Function #5: STEL o Symbol: STEL at bottom of screen o This function will display the Short Term Exposure Average for CO and H for 15 minutes.
  • Page 25 System Shutdown: • Hold the Power (left) Button for 5 seconds • While holding the power button the unit will beep 5 times then shut off. • Do not let go of the power button until the screen powers down and beeps stop.
  • Page 26 Pump Operation: • Flow Rate: o 0.5 SCFH (Standard Cubic Ft. per Hour) o .25 Liter per Minute • Tubing: Clear Urethane Hose o Standard Length: 10 feet o Maximum Length: 100 feet o Hose comes with Hydrophobic Filter **Do Not Use Medical Tubing: it absorbs hydrocarbons.**...
  • Page 27 Pump Operation (Cont’d): • Rules for Pump Operation: o Allow 2 seconds per foot of hose plus 2 minutes for 100% gas readings • Quick Calculations: o 10 feet: 2 minutes, 20 seconds o 100 feet: 5 minutes, 20 seconds...
  • Page 28 Sensor Replacement: • Smart Sensor Technology • 2 Year Warranty on all Sensors • All sensors are field replaceable...
  • Page 29 Calibration: • A calibration must be performed at least once a month. • Calibration: adjusts the range of the sensors to ensure full potential; the gas in the cylinder will be matched with the sensors.
  • Page 30 V-Cal Calibration Station: • Calibration, bump tests and charging terminal all in one. • Simple one button operation. • Includes software for improved data logging.
  • Page 31 Before Taking Readings: • Meter Must Read: o LEL: 0% o CO: 0 PPM : 20.9% S: 0 PPM o The meter will attempt to “Zero Out” to these numbers, but a manual Zero Out may be performed if necessary.
  • Page 32 • Always start your gas meter before entering the potential IDLH environment. • Most detectors have 3 sensors, with 1 doing double work. The Ventis MX4 has 4 stand alone sensors for added reliability.
