P/N 1706-3421
REV 03 Printed 0900-2000
Specifications Subject to Change
G U A R A N T E E D .
F O R L I F E .
1001 Oakdale Road, Oakdale, PA 15071-1500
(412) 788-4353 • Toll Free 1-800-DETECTS
FAX 412-788-8353 • Service Dept. 1-888-788-4353
INDUSTRIAL SCIENTIFIC
CORPORATION
Multi-Gas Monitor
ATX612
Instruction
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATX612 and is the answer not in the manual?

Questions and answers

Muhammad Iqbal Butt
March 20, 2025

Looking for ATX Series 612 & 620 obsolete ebullient

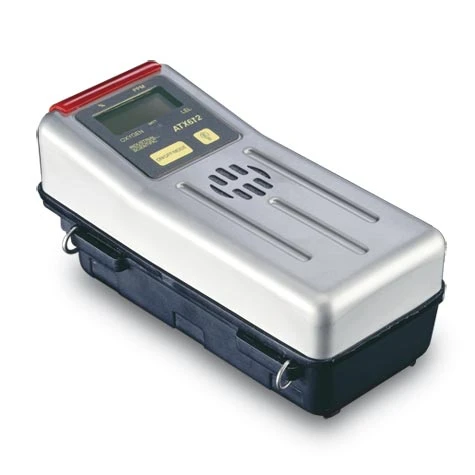

User image 67dbde2f7880f
0

Subscribe to Our Youtube Channel

Related Manuals for Industrial Scientific ATX612

Summary of Contents for Industrial Scientific ATX612

  • Page 1 G U A R A N T E E D . F O R L I F E . 1001 Oakdale Road, Oakdale, PA 15071-1500 (412) 788-4353 • Toll Free 1-800-DETECTS FAX 412-788-8353 • Service Dept. 1-888-788-4353 INDUSTRIAL SCIENTIFIC CORPORATION Multi-Gas Monitor ATX612 Instruction Manual...

  • Page 2: Our Mission

    OUR MISSION Design - Manufacture - Sell: Highest quality products for the preservation of life and property. Provide: Best customer service available.
  • Page 3 Dear Valued Customer, Thank you for buying and using Industrial Scientific’s Model ATX612 Multi-Gas Monitor. Your ATX612 can be relied upon for dependable service, day after day. It has been designed, manufactured, tested and proven under the most scrutinizing conditions possible.

  • Page 4: Table Of Contents

    NSTRUMENT ATX612 F EATURES NSTRUMENT PERATION 4.1 Charging the Battery 4.1.1 Alkaline Battery Option 4.2 Turning the ATX612 On and Off 4.3 Display Backlight 4.4 Internal Sampling Pump 4.5 Operating Modes 4.5.1 Reading 4.5.2 Sensor Configuration 4.5.3 PPM Hydrocarbon 4.5.4 Zero 4.5.5 Peak...

  • Page 5: Unpacking The Instrument

    - CENELEC (DEMKO) 4.1 C If the ATX612 is equipped with a Nicad battery pack, fully charge the battery pack before use. A universal charging adapter is included with the unit for charging the ATX612 battery pack.
  • Page 6 • Alternating Green/Amber: Trouble, electrical problem 21.0 A fully charged Nicad battery pack will typically operate a four-gas configured ATX612 for up to 16 hours. When the instrument is in the normal viewing mode, an eight- Battery Status segment battery status indicator continuously displays the Indicator battery condition.

  • Page 7: Alkaline Battery Option

    The remote sample tube should be connected to the barbed inlet fitting on the bottom of the ATX612 (See Figure 3). NOTE: When drawing a remote sample, allow 2 seconds The instrument is protected from drawing liquid and dust into the pump and sensors by an internal 1.2 micron dust...

  • Page 8: Peak Clear

    If the hygiene/datalogging option is installed, the STEL alarm will mimic the high alarm indicator and the STEL display value in alarm will flash. NOTE: The ATX612 uses the continuous high alarm tone for both low (depletion) and high (enrichment) oxygen alarm conditions.

  • Page 9: Battery Failure

    Recharge or replace the battery (See Section 8.2). 4.6.7 FAULT INDICATION The ATX612 will emit a short beep once a second if a newly installed sensor does not agree with the previous sensor type for that position. The corresponding display position will be blank.

  • Page 10: Changing Instrument Settings

    Refer to page 6, Figure 1 for the location of the hidden keys. To access the instrument menus: • Turn the ATX612 off and back on again. • When the display shows the warm up timer, press the plus (+) and minus (-) keys simultaneously.

  • Page 11: Alarms

    LATCH along with the prompt PRESS (+) FOR NEXT (E) TO SELECT. PRESS • Press (E) to set the ATX612 high alarm latch as ON or OFF. Press MODE to return to the LATCH screen. • Press (+) to step to the INSTANT function and set instantaneous alarm values.

  • Page 12: Period

    ATX hygiene/datalogging software. 7.4 D To connect the ATX612 for downloading data to the PC: • Start the datalog software on the PC. • Connect the interface cable to the infrared data port on the bottom of the ATX612.

  • Page 13: Maintenance

    Never use solvents or cleaning solutions of any type. 8.2 C HANGING THE To change the ATX612 battery pack: • Hold the instrument with battery pack facing up. • Using the maintenance tool provided with the instrument, turn counter-clockwise and loosen the two hex screws in the battery pack.

  • Page 14: Toxic/Oxygen Sensor Removal/Replacement

    • Replace the dust filter/water stop making sure that the larger diameter opening of the filter is facing inward. • Replace the knurled sample inlet fitting. NOTE: The ATX612 will remain in a PUMP FAULT condition if operation is attempted with the dust filter/water stop removed.

  • Page 16: Specifications

    Stainless Steel Extendible Probe - 6ft. 1810-1428 Polycarbonate Probe 1705-9494 Rechargeable Nicad Battery Pack 1705-9312 Replaceable Alkaline Battery Pack (6 C-cell) 1810-3259 Leather Carrying Case for ATX612 1810-0628 Shoulder Strap 1810-2921 Carrying Handle for ATX612 1810-1154 External Audible/Visual Alarm 1810-2146...

  • Page 17: Warranty

    ARRANTY Industrial Scientific portable gas monitoring instruments are warranted to be free from defects in material and workmanship for as long as the instrument is in service. The above warranty does not include sensors, battery packs, internal pumps or filters, all of which are warranted to be free from defects in material and workmanship for eighteen months from the date of shipment, or one year from the date of first use, whichever occurs first, except...
