Industrial Scientific MX6 iBrid Quick Start

MX6 iBrid
TM
Personal Multigas Monitor
Quick-start Menu
Flowcharts
Part Number: 17134552-1
Revision: 3; June 17, 2015

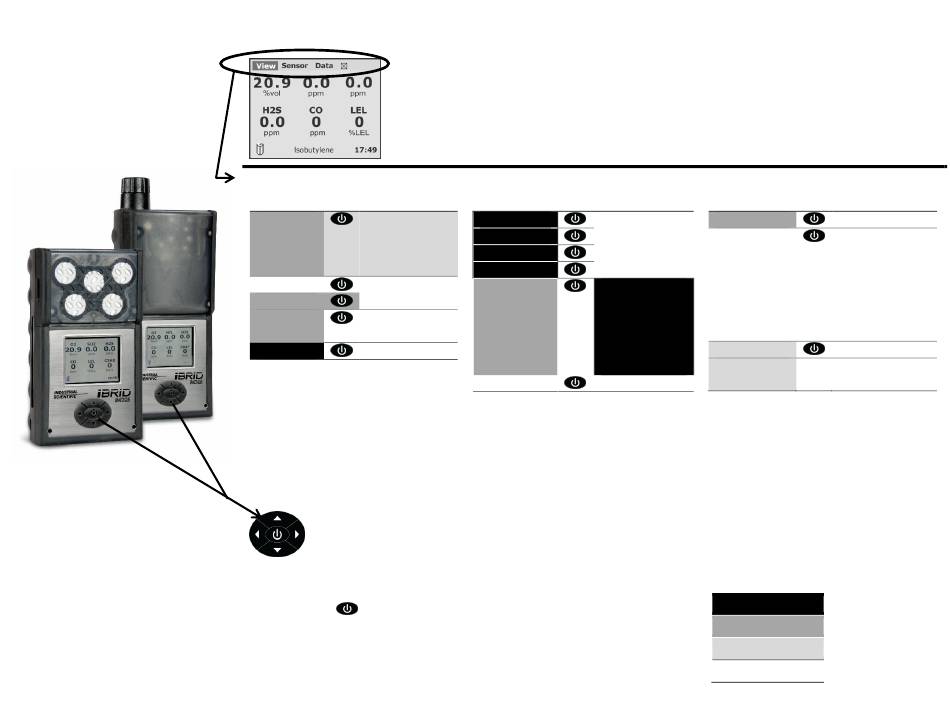

Operation-mode Menu System
View
Display ►
Numeric
Text
Graphical
Rotate
Battery
Profile
►
Help Contact
About
a
Configure
Warning: only qualified personnel should
a
access and work in the configuration mode.
Buttons
Any button Activate the backlight.
Start a task. Confirm or cancel an action. Change
an item's status (for example, from on to off).
▲or ▼
Navigate among menu items or items on a display
screen. Enter text or values in a data field.
◄or ►
Navigate from menu to menu or among items on a
display screen. Use as a cursor within a data field.
Sensor
Zero All
Calibration
Bump Test
Peaks
b
Sensor 1
Sensors
►
b
Sensor 2
b
Sensor 3
b
Sensor 4
b
Sensor 5
b
Sensor 6
Location
b Access these tasks, information screens, or
settings for an individual sensor: zero,
calibration, or bump testing; most recent (or
next) calibration date and span trends; for a PID
or LEL sensor, edit the unit of measure, RF
(PID), or correlation factor (LEL).
Note: These flowcharts are supplemental to the MX6 iBrid
(part number 17130279) and are not intended to be used as a
replacement for the information contained in the manual.
Data
New Session
View Data ►
Readings Graph
TWA Graph
TWA Numeric
STEL Graph
STEL Numeric
Event Log
Memory Status
Comments
Users/Sites► Set Current User
Set Current Site
Diagram Key
Begin task Note: Access to
individual options
Access settings
varies based on a
unit's configured
Edit setting
settings.
View information
manual
