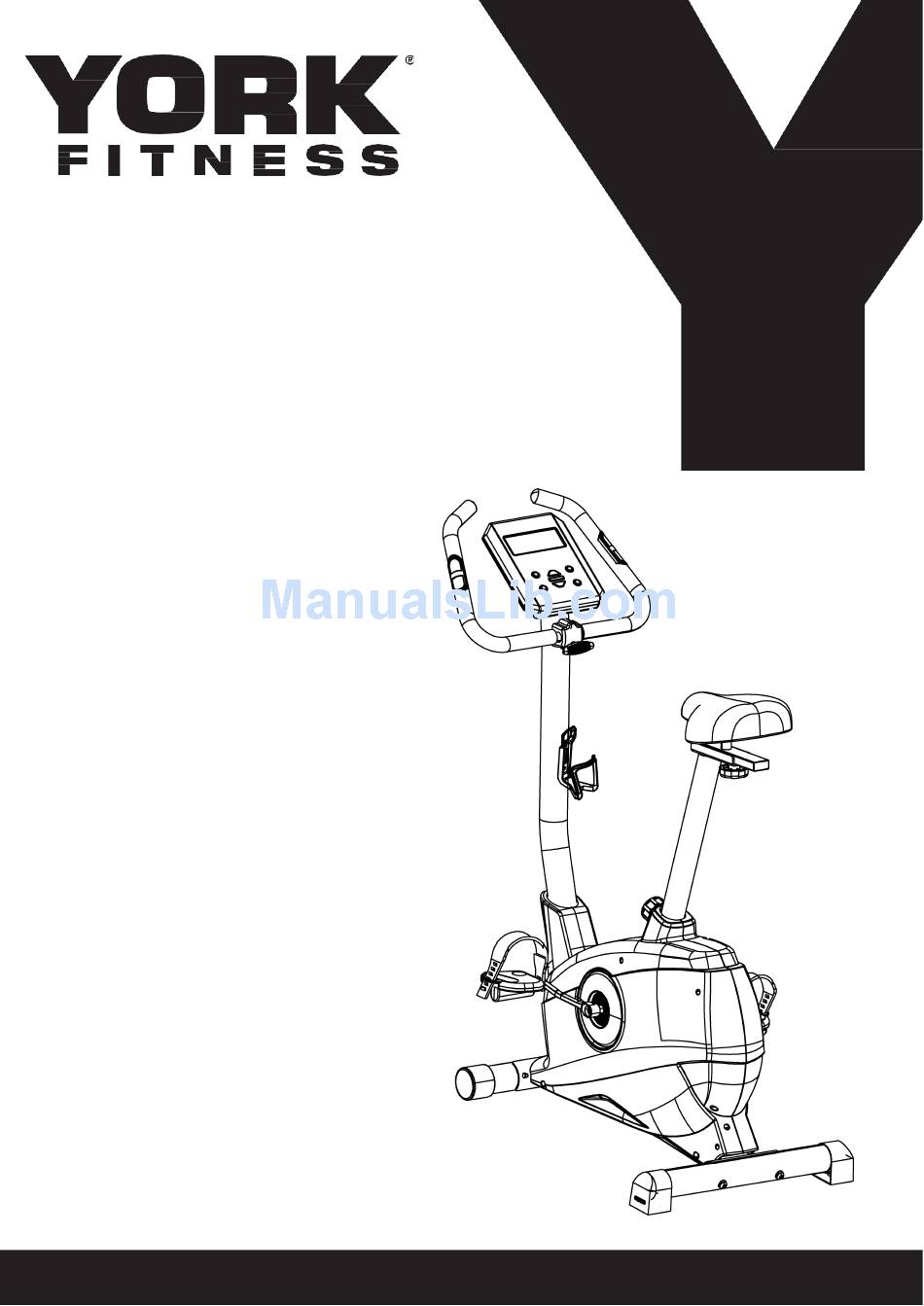

Owner’s Manual C415 Upright Bike Item #53101A www.yorkfitness.com.au...
Page 2
Table of contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Assembly Drawing Exploded Drawing You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to Parts List achieving your personal fitness goals.
• Due to our continuous policy of product development, • Use only the adjustment setting as described in the York Fitness reserves the right to change instructions. Always use the correct adjustment specifications without notice. pin / fixing. •...
IMPORTANT - Please retain your sales receipt. York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.
Parts List Description QTY/ unit Console Screw M5X10L Handlebar set End cap Screw M4X20L Foam grip Hand pulse sensor Hand pulse sensor wire Handlebar post Console bracket cover, left Console bracket cover, right Screw M5X20L Upper cable Screw M8X16L Semi washer φ8xφ19x2t Seat post Flat washer Seat adjusting knob...
Page 8
C-clip Drive belt Side cover, right Servo motor set Nyloc screw M8X20L Crank, left Crank, right DC wire Flywheel set (51~63) Magnet set (64~67) Spring washer Hex screw M6X16L Flat washer Idler spring ODφ16xφ2.0 Idler Nut M8 Bushing φ10xφ14x6mmL Idler pulley w/bearing Wave washer φ10.5xφ15x0.3t Flat washer φ8.5xφ25x1t Flat washer φ8.5xφ16x1t...
Assembly Steps Step 1. 1. Attach the front Stabilizer (77) to the main Frame (23) using screws (83), & washers (84+85). 2. Attach the rear Stabilizer (80) to the main Frame (23) using screws (83), & washers (84+85). www.yorkfitness.com.au...
Page 11
Step 2. 1. Assemble the two pedals (35-L, 35-R) onto cranks (48, 49) with a screw driver. Screw the left pedal’s spindle counter-clockwise and the right pedal’s spindle clockwise. Use a wrench (or screwdriver) to screw the two spindles completely 2.
Page 12
Step 3. 1. Put the cover (24) through handlebar post (9), and then connect the upper cable (13) & lower cable (25) as image display. 2. Insert the handlebar post (9) to the main frame, and fix with screws & washers (14, 15) by Allen wrench and box spanner.
Page 13
Step 4. 1. Attach the handlebar (3) onto the handlebar post (9), fix with the cover (86) and lock tight with washers and T-knob screw (87, 88, 89). 2. Pass the hand-pulse wire (8) through the hole to the top of handlebar post, as the image of drawing. www.yorkfitness.com.au...
Page 14
Step 5. ·· � ..,_ � � ND.12 � ND.2 � M5X10L(4) M5llE20L(4) 1. Plug the upper cable (13) and hand-pulse wire (8) with connectors on console. 2. Assemble the console (1) with 4 screws (2) by the box spanner. 3.
Page 15
Console Instructional As soon as the console is connected with power supply, an acoustic signal sounds and all of the displays are shown on LCD for 2 seconds. Then wheel diameter will be shown briefly. DISPLAY Training Values Display Range Setting Range TIME 0:00 ~ 99:59 min.
Page 16
BUTTON FUNCTIONS BUTTON FUNCTION - Increase resistance level DOWN - Decrease resistance level -Confirm setting Mode -Select program - Hold on pressing for 2 seconds, console will reboot and start from user setting. Reset - Reset all values to zero during setting workout value or Stop mode. Start/ Stop - Start or Stop workout.
Page 17
Starting exercise immediately (MANUAL) Once a power connection has been established, the console will require you to create your own data. Press UP and DOWN keys to set user data (for BODY FAT function), set Age, Gender, Height, Weight in U1~U4, press MODE to confirm. Then go to Workout selection mode.
Page 18
Selecting a Program to do training (PROGRAM) Once a power connection has been established, MANUAL is flashing in the display. - Press UP and DOWN keys to go between MANUAL→PROGRAM→USER PROGRAM→H.R.C.→WATT. - Choose PROGRAM and press MODE to confirm. The programs are preset with 12 profiles. Press UP and DOWN to select one from the 12 preset profiles.
Page 19
The newly set value will be shown under the LOAD window. -Press START/STOP to end exercising. -Press RESET to reverse to workout selection menu. The console is designed for single workout usage only. Apart from User Profile U1-U4, no workout profile can be saved in all modes Set program according to heart rate (H.R.C.) In this program, the exercise bike reacts to your pulse as measured by the hand sensors.
Page 20
Program sequence: The console sets a pedal resistance that keeps you exercising constantly within your target pulse rate. If you are exercising and go below your preset pulse rate, the pedal resistance will automatically rise by one stress level every 30 seconds. If you are exercising and go above your preset pulse rate, the pedal resistance will automatically decrease by one stress level every 15 seconds.
Page 21
-If your heart rate is still very high after 60s (F is between 4 and 6), you could restart the recovery program to gradually slow your heart rate further. Body Fat measurement Here you can measure your Body Fat percentage and BMI. (The test should be done when there is no pedalling) -Press Body Fat button to start measurement.
Page 22
WARRANTY, SAFETY AND ASSEMBLY INFORMATION YRK53101A– YORK C415 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their Bike to be free from defects in material and workmanship under normal use and service conditions.
Page 23
BFE Warranty Policy – November 1 2013 1. When purchased from an authorised BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy.
Page 24
Returned Goods: The unauthorised return of parts or product shall be refused and placed in the hands of the carrier at the cost of the shipper. Return authorisations can be obtained from BFE head office only. Service Department hours: Monday to Friday between 9.00am and 4pm Service Phone Number: 07 3272 7010 PLEASE NOTE: that Authorised service technicians do not reside in all areas of this vast country.
