Summary of Contents for York Fitness Active 100 Exercise Cycle 53066

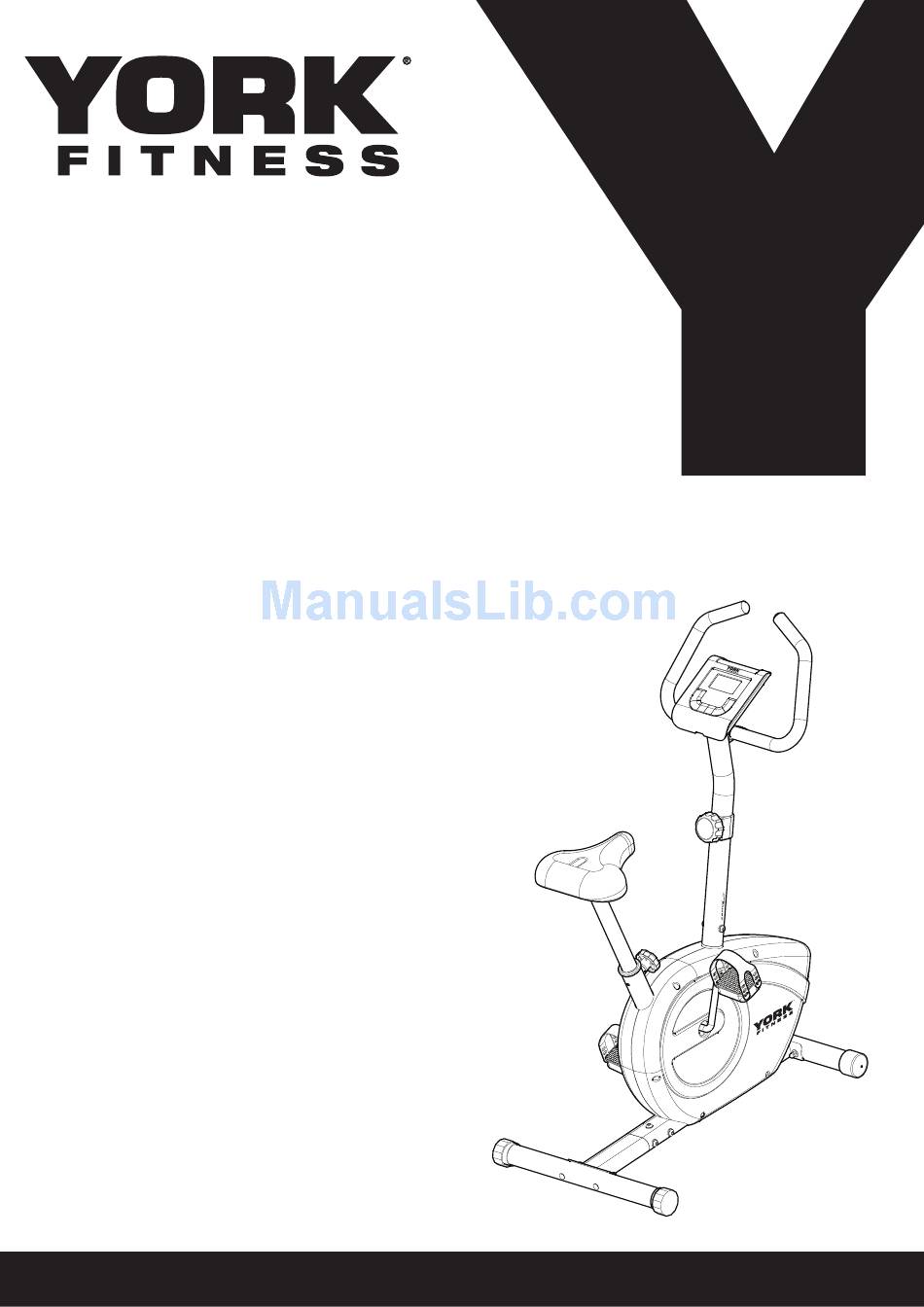

- Page 1 Owner’s Manual Active 100 Exercise Cycle 53066 30April2013 www.yorkfitness.com...
-
Page 2: Table Of Contents
Table of contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Care & Maintenance Assembly instructions You have chosen a high quality, safe and innovative piece of equipment as your Operational instructions training partner and we are certain it will keep you motivated on the way to achieving your personal fitness goals. -
Page 3: Safety Information
Always use the correct adjustment pin • Due to our continuous policy of product / fixing. development, York Fitness reserves the right to • Always check that any pins / fixings are tight and change specifications without notice. secure before use and after adjustment. -
Page 4: Customer Support
Underside of the you have bought. main body. IMPORTANT!! - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase. -
Page 5: Care & Maintenance
Assembly instructions Care & Maintenance • This equipment should not be placed outdoors, in a garage or an outbuilding. Keep the equipment in a dry place with as little temperature variation as possible. • We recommend placing a mat beneath the equipment to protect both the equipment and your flooring. •... - Page 6 Assembly instructions J8 x 1 J9 x 5 J2 x 4 J3 x 4 J1 x 4 J2 x 4 www.yorkfitness.com...
- Page 7 www.yorkfitness.com...
- Page 8 Assembly instructions J6 x 1 J7 x 1 J4 x 1 www.yorkfitness.com...
- Page 9 Final Check Your exercise cycle is now assembled. Please make the follzowing final checks: • Make sure all screws / bolts are tightened. • Make sure the equipment is on a flat, level surface. www.yorkfitness.com...
-
Page 10: Operational Instructions
Operational instructions Console: SCAN TIME SPEED DISTANCE CALORIE RESET MODE DOWN Power On: When power on, the LCD monitor will beep and display all segments. Stand-by Mode: The LCD monitor will enter stand-by mode after 4 minutes of inactivity. Press on any key to wake the monitor. Operation: •... -
Page 11: Display Function
Key Function: KEYS FUNCTIONS • Increase setting selection. • Press and hold the button the increase the value faster. DOWN • Decrease setting selection. • Press and hold the button the decrease the value faster. MODE • Press the MODE button to select a function for setup, the monitor will beep between selection. -
Page 12: Adjusting The Resistance
Operational instructions Adjusting The Resistance This exercise cycle features a speed independent braking (resistance) system. The resistance is Resistance Level controlled by a magnet, which is moved closer or further away from the flywheel - the closer the magnet is to the flywheel the higher the resistance. Levelling Your Exercise Cycle To help you level the exercise cycle on uneven surface, 2 height adjusters are included on the rear... -
Page 13: Troubleshooting
Batteries Replacement Instructions: 1. Remove the meter from the exercise cycle. 2. Open the battery compartment cover. 3. Remove battery by pulling the battery in direction of spring and lift opposite end upwards. 4. Insert 2 AA batteries ensuring you match the polarity markings (+ and -) on the batteries with the indicators in the battery compartment. -
Page 14: Fitness Guide
Fitness guide Starting and Finishing Your Workout Begin and end each workout with a Warm Up / Down session - a few minutes of stretching to help prevent strains, pulls and cramps. Correct Crosstraining Form To start using the cross trainer, simply stand on the foot pedals with the front of your shoes close to the front edge of the pedal cap. -
Page 15: How Long Should I Exercise For
How Long Should I Exercise For? That really depends on your current level of fitness. If you’re just starting out on a new exercise program, you should start gradually and build up - do not try to do too much too quickly. 30 minutes, 3 times a week should be enough. -
Page 16: Exploded Drawing
Exploded drawing www.yorkfitness.com... -
Page 17: Part List
Part list YORK REF. REF. DESCRIPTION QTY. YORK REF. REF. DESCRIPTION QTY. 53066-1 CONSOLE (ST8324) 1PCS 53066-38 MAGNET (25 X 30 X 12T) 12PCS 53066-2 SCREW (M5 X 10L) 4SET 53066-39 CURVE WASHER (Ø12.5 X Ø18 X 0.3T) 2PCS 53066-3 HANDLEBAR 1PCS 53066-40... - Page 18 www.yorkfitness.com...
