3.1.7 Method for making Adapter Guide Holder removal
tool
The Adapter Guide Holder (refer to p.58) can be easily removed by using a special
tool. The method for making the tool is described below.

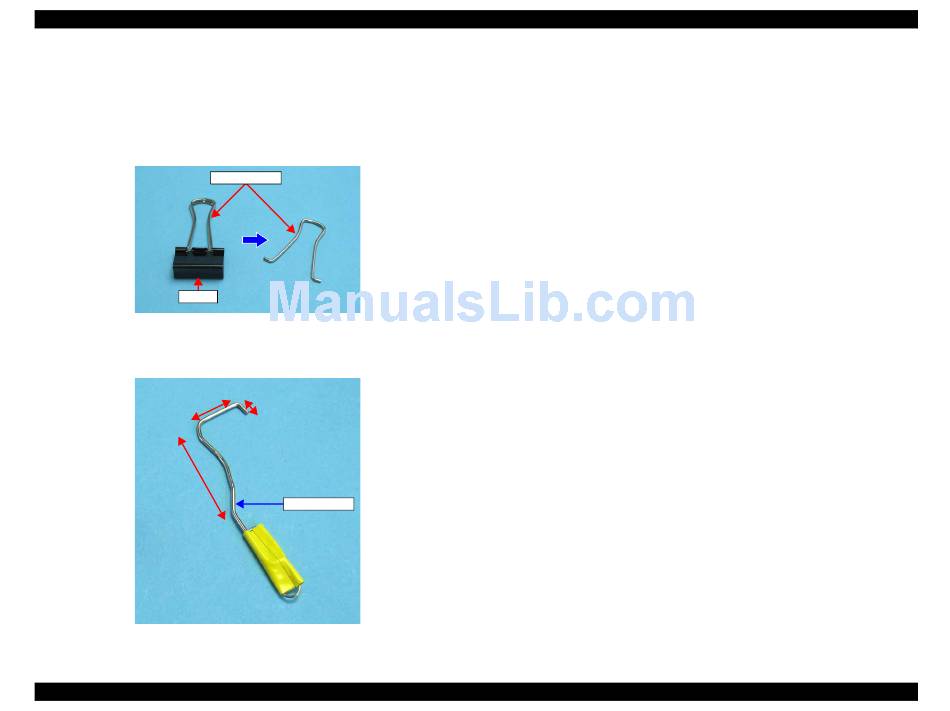

1. Prepare a handle part of a clip, or a similar metal wire piece.
Clip
Figure 3-9. Method for making Adapter Guide Holder Removal Tool (1)
2. Bend the metal wire into dimensions described below.
25mm
50mm
Figure 3-10. Method for making Adapter Guide Holder Removal Tool (2)
Disassembly And Assembly
Handle part
7mm
Special Tool
