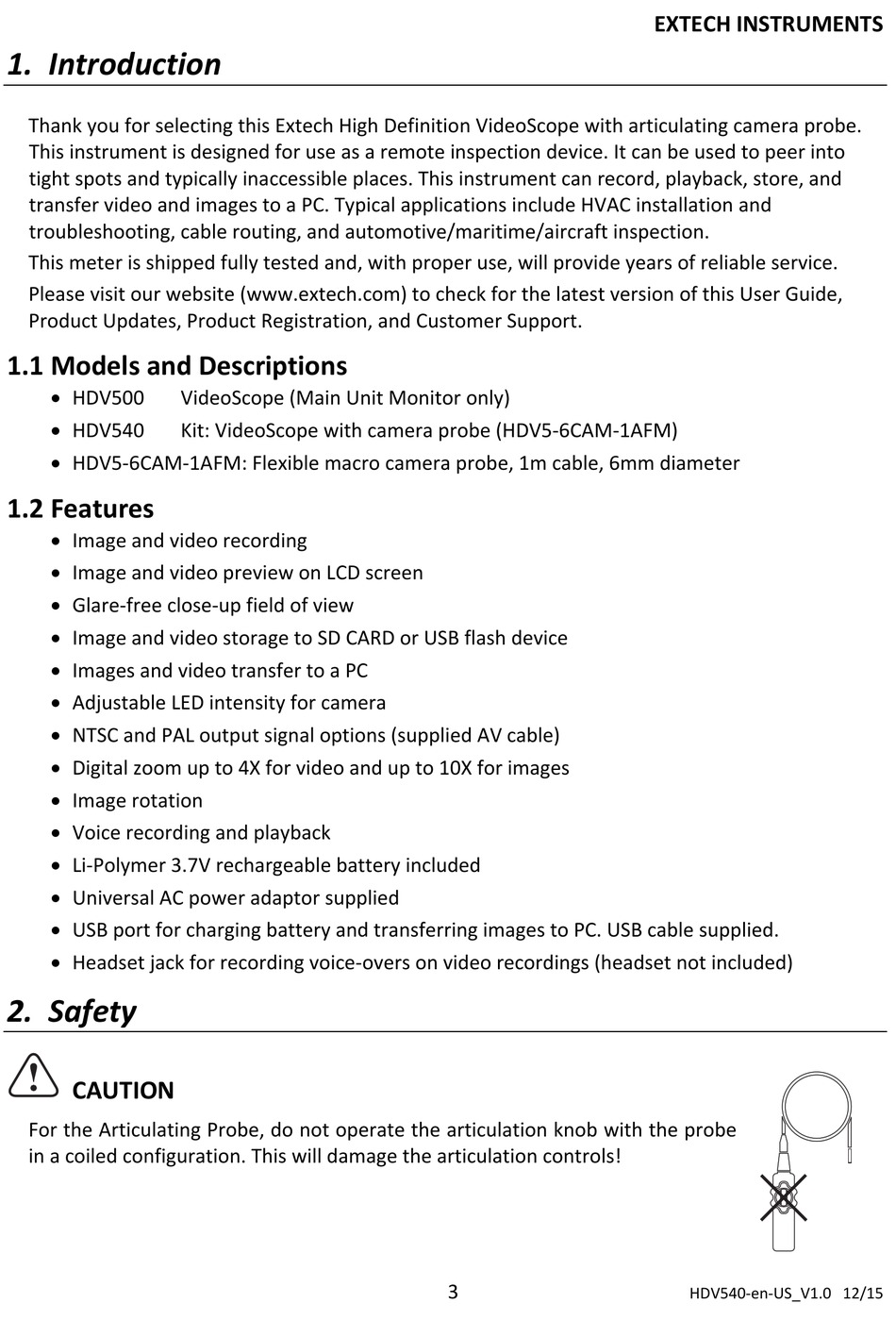

1. Introduction
Thank you for selecting this Extech High Definition VideoScope with articulating camera probe.
This instrument is designed for use as a remote inspection device. It can be used to peer into
tight spots and typically inaccessible places. This instrument can record, playback, store, and
transfer video and images to a PC. Typical applications include HVAC installation and
troubleshooting, cable routing, and automotive/maritime/aircraft inspection.
This meter is shipped fully tested and, with proper use, will provide years of reliable service.
Please visit our website (www.extech.com) to check for the latest version of this User Guide,
Product Updates, Product Registration, and Customer Support.
1.1 Models and Descriptions
 HDV500
 HDV540
 HDV5‐6CAM‐1AFM: Flexible macro camera probe, 1m cable, 6mm diameter
1.2 Features
 Image and video recording
 Image and video preview on LCD screen
 Glare‐free close‐up field of view
 Image and video storage to SD CARD or USB flash device
 Images and video transfer to a PC
 Adjustable LED intensity for camera
 NTSC and PAL output signal options (supplied AV cable)
 Digital zoom up to 4X for video and up to 10X for images
 Image rotation
 Voice recording and playback
 Li‐Polymer 3.7V rechargeable battery included
 Universal AC power adaptor supplied
 USB port for charging battery and transferring images to PC. USB cable supplied.
 Headset jack for recording voice‐overs on video recordings (headset not included)
2. Safety
CAUTION
For the Articulating Probe, do not operate the articulation knob with the probe
in a coiled configuration. This will damage the articulation controls!
VideoScope (Main Unit Monitor only)
Kit: VideoScope with camera probe (HDV5‐6CAM‐1AFM)
3
EXTECH INSTRUMENTS
HDV540‐en‐US_V1.0 12/15
