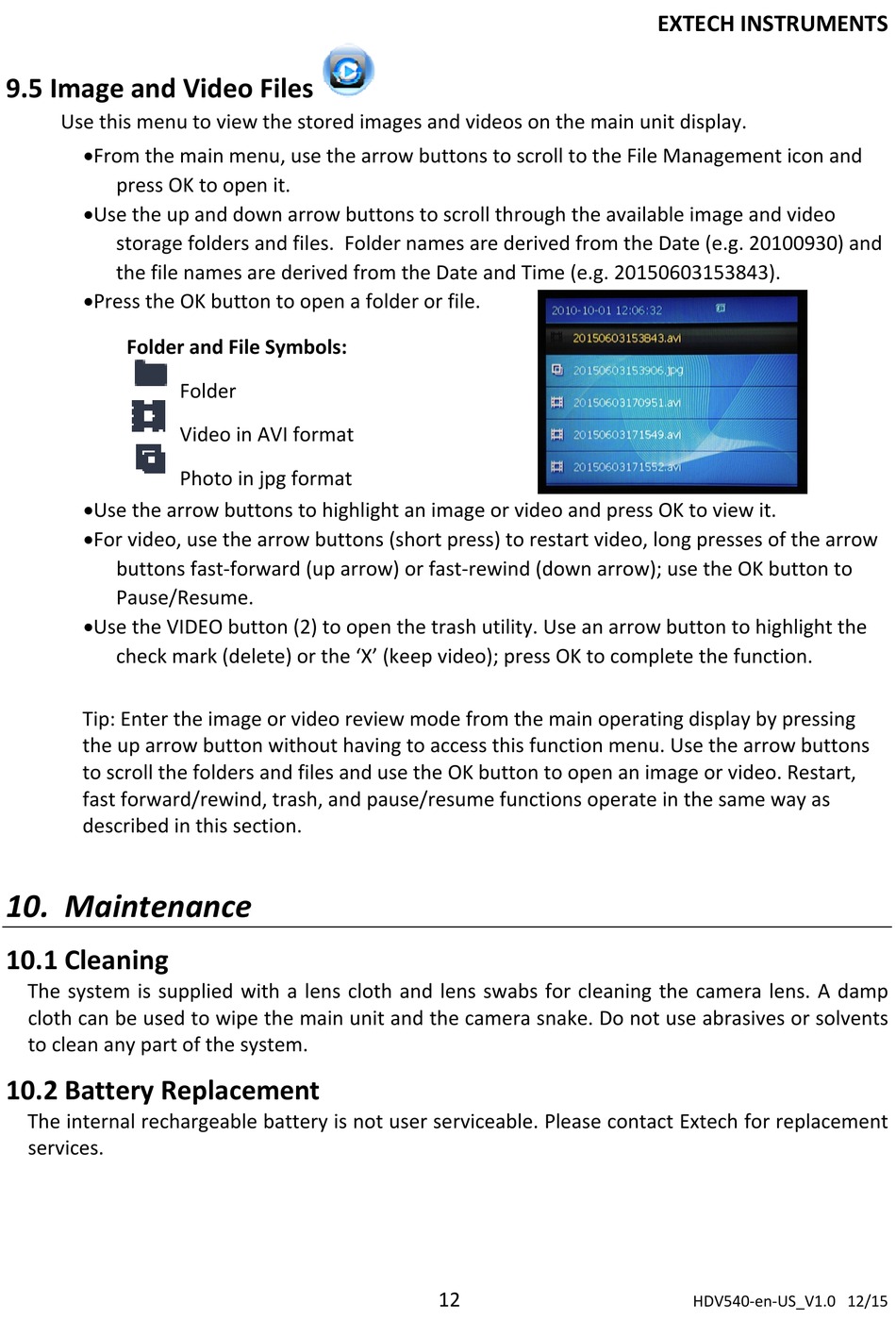

9.5 Image and Video Files
Use this menu to view the stored images and videos on the main unit display.
From the main menu, use the arrow buttons to scroll to the File Management icon and
press OK to open it.
Use the up and down arrow buttons to scroll through the available image and video
storage folders and files. Folder names are derived from the Date (e.g. 20100930) and
the file names are derived from the Date and Time (e.g. 20150603153843).
Press the OK button to open a folder or file.
Folder and File Symbols:
Folder
Video in AVI format
Photo in jpg format
Use the arrow buttons to highlight an image or video and press OK to view it.
For video, use the arrow buttons (short press) to restart video, long presses of the arrow
buttons fast‐forward (up arrow) or fast‐rewind (down arrow); use the OK button to
Pause/Resume.
Use the VIDEO button (2) to open the trash utility. Use an arrow button to highlight the
check mark (delete) or the 'X' (keep video); press OK to complete the function.
Tip: Enter the image or video review mode from the main operating display by pressing
the up arrow button without having to access this function menu. Use the arrow buttons
to scroll the folders and files and use the OK button to open an image or video. Restart,
fast forward/rewind, trash, and pause/resume functions operate in the same way as
described in this section.
10. Maintenance
10.1 Cleaning
The system is supplied with a lens cloth and lens swabs for cleaning the camera lens. A damp
cloth can be used to wipe the main unit and the camera snake. Do not use abrasives or solvents
to clean any part of the system.
10.2 Battery Replacement
The internal rechargeable battery is not user serviceable. Please contact Extech for replacement
services.
