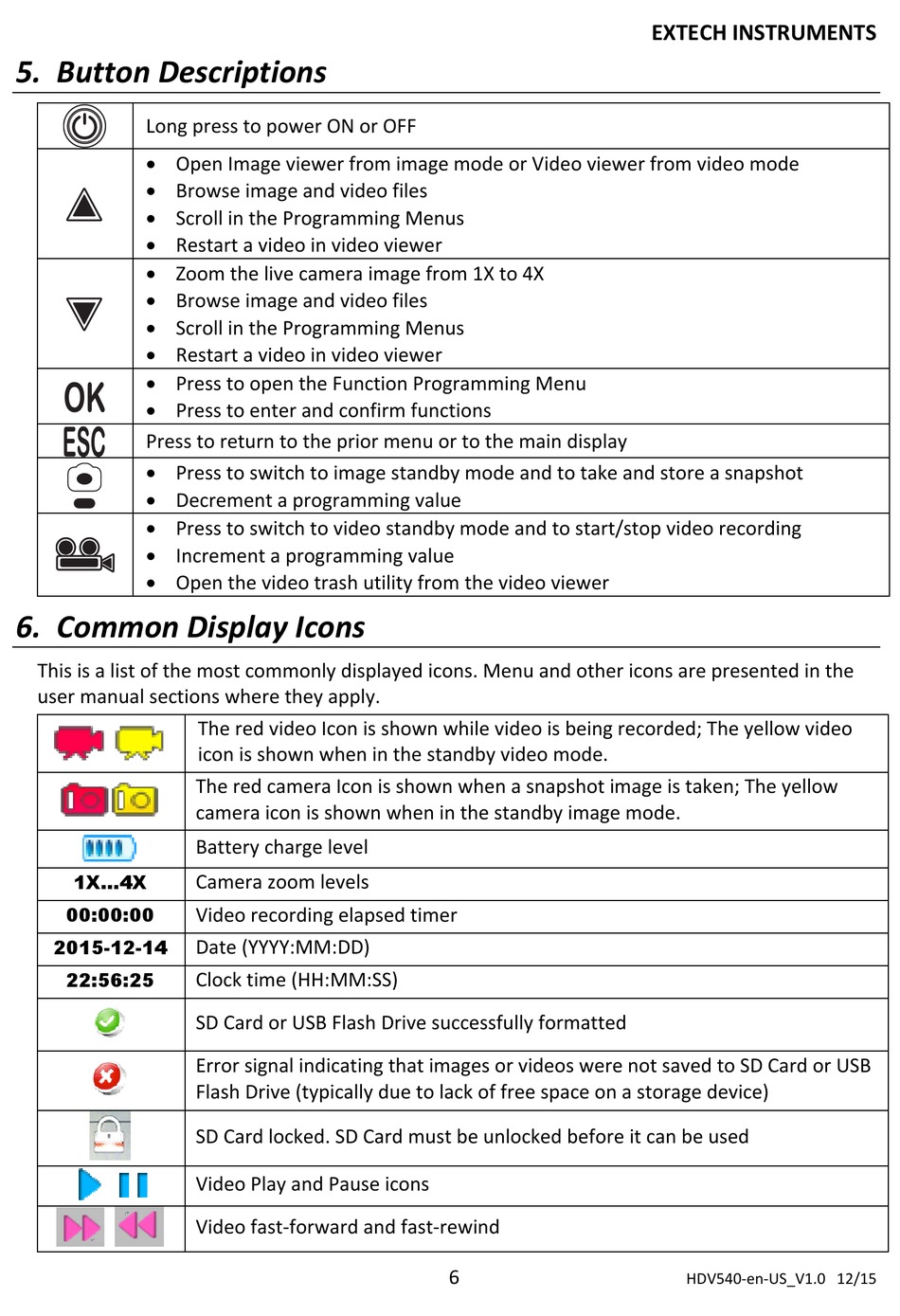

5. Button Descriptions
Long press to power ON or OFF
 Open Image viewer from image mode or Video viewer from video mode
 Browse image and video files
 Scroll in the Programming Menus
 Restart a video in video viewer
 Zoom the live camera image from 1X to 4X
 Browse image and video files
 Scroll in the Programming Menus
 Restart a video in video viewer
 Press to open the Function Programming Menu
 Press to enter and confirm functions
Press to return to the prior menu or to the main display
 Press to switch to image standby mode and to take and store a snapshot
 Decrement a programming value
 Press to switch to video standby mode and to start/stop video recording
 Increment a programming value
 Open the video trash utility from the video viewer
6. Common Display Icons
This is a list of the most commonly displayed icons. Menu and other icons are presented in the
user manual sections where they apply.
1X...4X
00:00:00
2015-12-14
22:56:25
The red video Icon is shown while video is being recorded; The yellow video
icon is shown when in the standby video mode.
The red camera Icon is shown when a snapshot image is taken; The yellow
camera icon is shown when in the standby image mode.
Battery charge level
Camera zoom levels
Video recording elapsed timer
Date (YYYY:MM:DD)
Clock time (HH:MM:SS)
SD Card or USB Flash Drive successfully formatted
Error signal indicating that images or videos were not saved to SD Card or USB
Flash Drive (typically due to lack of free space on a storage device)
SD Card locked. SD Card must be unlocked before it can be used
Video Play and Pause icons
Video fast‐forward and fast‐rewind
