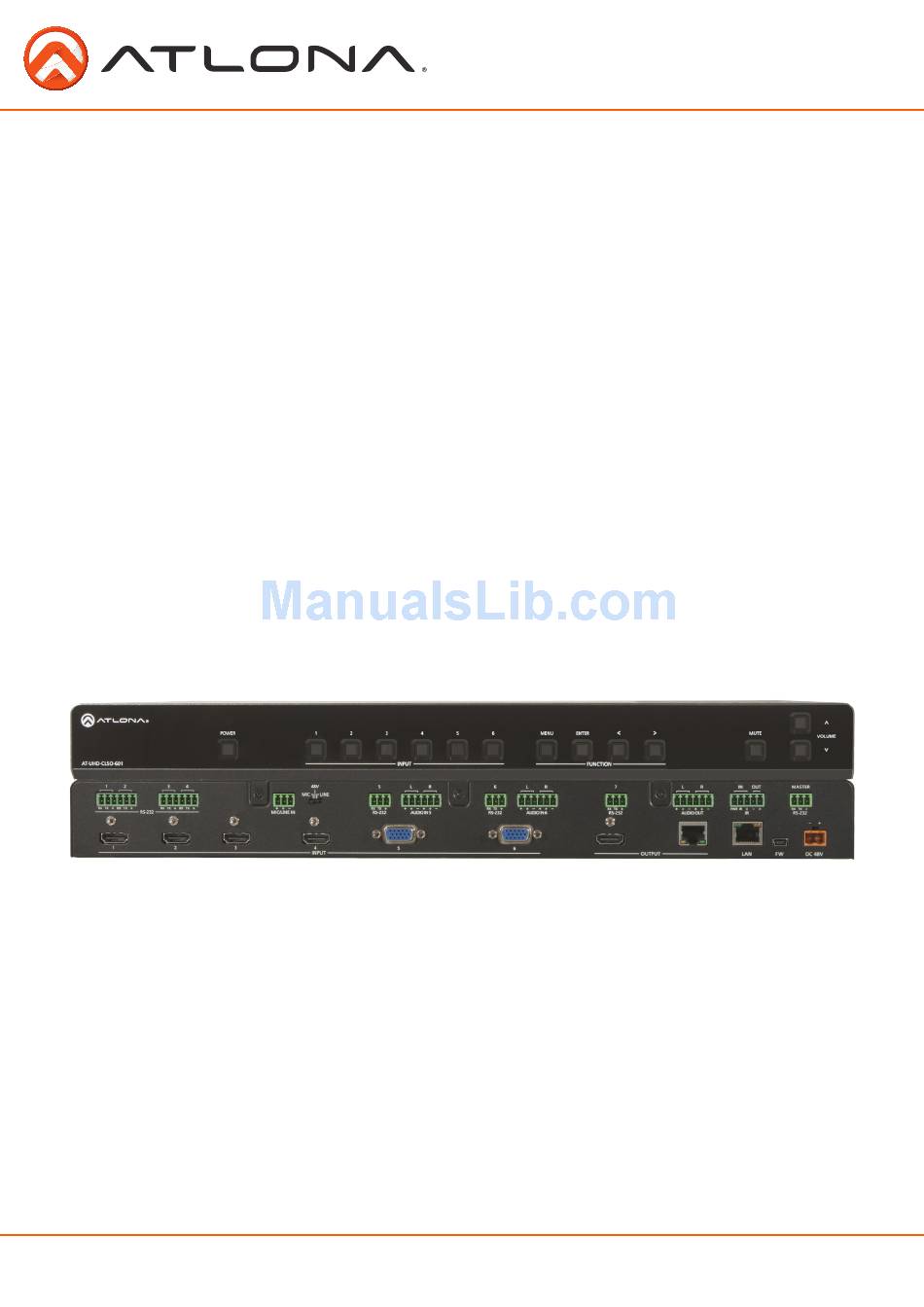

- Page 1 4K/UHD 6 Input Multi-Format Switcher with Mirrored HDMI and HDBaseT Outputs, PoE, and Auto-Switching AT-UHD-CLSO-601 User Manual Please check http://www.atlona.com/UHD-CLSO-601.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..................26 14. Control Drivers ..................26 15. CLSO-601 Updating ..................26 16. Connection & Installation ..................30-31 17. Specifications ..................28 18. Safety ..................29 19. Warranty ..................30-31 20. Registration ..................31 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
AV presentation system. Package Contents • 1 x AT-UHD-CLSO-601 • 16 x Female Captive Screw Connector 6 pin: audio (x3) - 5 pin: IR (x1) - 3 pin: RS-232 (x8) - 3 pin: MIC/Line (x1) - 2 pin: power (x1) •... -
Page 4: Panel Description
Panel Description Front Panel POWER MENU ENTER < > MUTE VOLUME AT-UHD-CLSO-601 INPUT FUNCTION MASTER LINE RX TX RX TX RX TX RX TX RX TX RX TX PWRIR RX TX RS-232 MIC/LINE IN RS-232 AUDIO IN 5 RS-232 AUDIO IN 6... -
Page 5: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Analog Multi-Format Inputs
CLSO-601. Then each input to the matrix could be connected to a different format analog signal. A 3rd party control system could ensure the correct format is selected to match the input to the switcher. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Audio Connections
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Microphone
Supplies 48 volts. Balanced MIC/LINE IN MIC/LINE IN LINE Connect wireless microphone receivers (or other sources) with line level outputs using this setting. Either balanced or unbalanced connections may be used. LINE LINE Balanced Unbalanced Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 9 Color 0 to 100 Tint 0 to 100 H Position 0 to 40 Phase 0 to 63 Disabled Medium High Disabled Medium High Disabled Medium High Scale Full Overscan Underscan Letterbox Panscan Follow Input Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 640x480@72 640x480@75 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@72 1024x768@75 PC-2 1280x768@60 1280x800@60 1280x960@60 1280x1024@60 1360x768@60 1366x768@60 1400x1050@60 1440x900@60 1600x900@60 1600x1200@60 1920x1200@60 Network Network Status MAC Address xx-xx-xx-xx-xx-xx IP Address xxx.xxx.x.xxx Subnet xxx.xxx.xxx.x Gateway xxx.xxx.x.x DHCP Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 (ex. 16x9) Color Space xxxx (ex. YUV) Color Depth xxxx (ex. 24) Audio Info Input xxxx (ex. HDMI 1) Audio Format xxxx (ex. PCM) Sampling Rate xxxx (ex. 48 KHz) Channels xxxx (ex. 2-Ch) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 12: Tcp/Ip And Gui
TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the CLSO-601. To begin, connect the LAN port of the CLSO-601 to your network. Type the IP address of the CLSO-... - Page 13 The home screen tab will display the general system information. If an HDMI port is the current input, audio will display . If an analog port is selected then no audio information will (see image above) be displayed. (see below) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 14 If your control system supports password protection, set the login mode to on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 15 Note: When the output is set to UHD resolutions, UHD sources are passed through without scaling. Frame rates are not changed. (ex. if 3840x2160@30Hz input is received, output will remain 30Hz even if output is set to 24Hz) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 16 NOTE: Component, composite, and S-Video poll settings will grey out when VGA auto switching is on OSD Display Settings OSD func - Turns the CLSO’s display OSD menu on/off OSD info - Turns the source information on the display on/off when switching Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 17 Note: User information will display for the admin only. Note: Only the admin password can be changed. The admin username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 18 Audio settings adjust output volume for all sources including the microphone. Master - Affects all sources at the same time Inputs - Used to balance levels from each source. Note: For best results, gains should be balanced between master and source levels. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 19 The further right the slider is, the more sensitive the setting. 7. Set program decrease to ensure when ducking is triggered the program level is low enough the speaker can be heard. Fine tuning these settings will help achieve the best results. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 20: On Screen Display
System IR is typically used to connect to control system processors. This input is used to control the CLSO- 601. Note: The IR receiver is optional for the UHD-CLSO-601. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differenciate the pin outs. Signal (S) Ground ( ) The included IR emitter has two wires: signal and ground. -
Page 21: Rs-232
Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the CLSO-601 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 22: Commands
Brings up the software versions: ex. Version mcu firmware [mcu] Version [Y] Version [Y] OSD menu [osd] ex. Version osd ex. Version x.x.xx DSP [dsp] FPGA [fpga] Type AT-UHD-CLSO-601 Brings up the model information Mreset Mreset Reset device to manufacture default Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 23 1920x1080p50 1920x1080p24 1920x1080p25 1920x1080p30 640x480p72 640x480p75 800x600p60 800x600p72 800x600p75 1024x768p60 1024x768p72 1024x768p75 1280x768p60 1280x800p60 1280x960p60 1280x1024p60 1360x768p60 1366x768p60 1440x900p60 1600x1200p60 1920x1200p60 2048x1080p24 2048x1080p50 2048x1080p60 2048x1152p60 3840x2160p24 3840x2160p25 3840x2160p30 4096x2160p24 4096x2160p30 1400x1050p60 254 Native 1600x900p60 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 24 VGA 2 [X] preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 2560x1440 3840x2160 sta Read status VGA [X] preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 sta Read status Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 25: Baud Rate
The commands and any carriage returns/line feeds in the commands will need to be placed in the bracket. Example: To turn the display or projector on if the command is PWRON carriage return, use the command: RS232zone1[PWRON carriage return] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 26: Control Diagram
CLSO-601: OSD and Firmware. Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system. -
Page 27: Connection And Installation
Control Media Player Set-top box MUTE OFF POWER MENU ENTER < > MUTE Laptop VOLUME Blu-ray Player Control System AT-UHD-CLSO-601 INPUT FUNCTION MASTER LINE RX TX RX TX RX TX RX TX RX TX RX TX PWRIR RX TX RS-232... -
Page 28: Specifications
1.73 x 17.08 x 10.04 (inch) w/feet 55.15 x 433.8 x 255 (mm) 2.17 x 17.08 x 10.04 (inch) Rack Unit Weight Device 3.12 kg 6.9 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 29: Safety
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 30: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 31: Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
