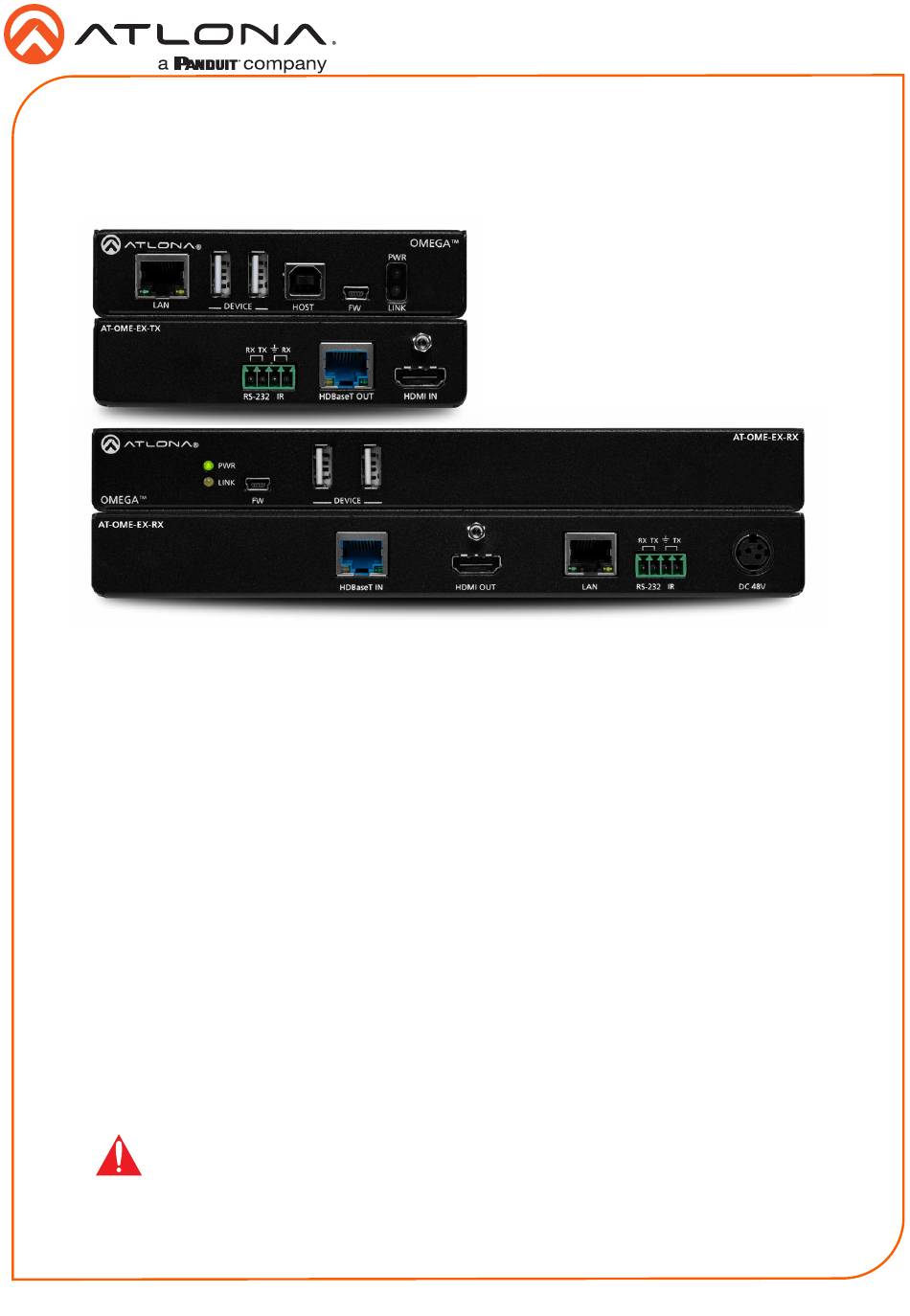

Omega
4K/UHD
™
HDMI Over HDBaseT TX/RX with USB, Control, and PoE
AT-OME-EX-KIT
The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus
embedded audio, control, Ethernet, and USB 2.0 over distances up to 330 feet (100 meters).
Part of the Omega
Series of integration products for modern AV communications and
™
collaboration, the OME-EX-KIT is HDCP 2.2 compliant and extends IR, RS-232, and IP control
signals. The integrated USB extension is ideal for software video conferencing and the use of
touch or interactive displays. The OME-EX-TX transmitter includes a USB host port for a PC,
plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The
OME-EX-RX receiver provides two USB 2.0 interfaces for devices such as a camera or display.
The transmitter and receiver are available separately, for use with other Omega Series integration
products.*
Package Contents
1 x AT-OME-EX-TX
1 x AT-OME-EX-RX
2 x Captive screw connectors, 4-pin
2 x Mounting plates
4 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-KIT for the
latest firmware updates and User Manual.
* Both the AT-OME-EX-TX and AT-OME-EX-RX are not compatible with the AT-UHD-HDVS-300
system for extending USB.
1
Installation Guide
AT-OME-EX-KIT
Advertisement
Table of Contents
Related Manuals for Atlona Omega AT-OME-EX-KIT
Summary of Contents for Atlona Omega AT-OME-EX-KIT
-
Page 1: Installation Guide

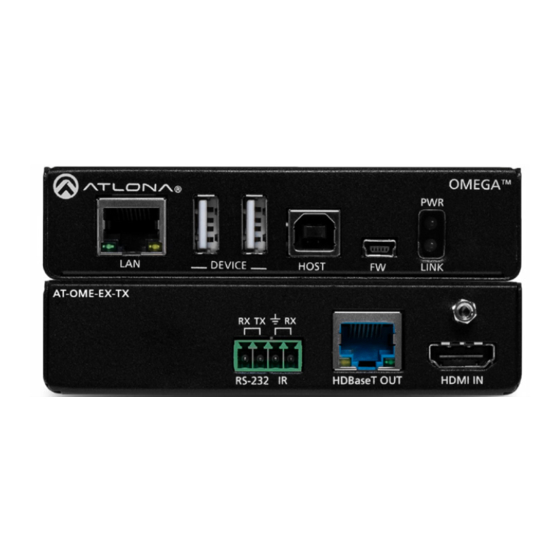

HDMI Over HDBaseT TX/RX with USB, Control, and PoE AT-OME-EX-KIT The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB 2.0 over distances up to 330 feet (100 meters). Part of the Omega Series of integration products for modern AV communications and ™... - Page 2 Installation Guide AT-OME-EX-KIT AT-OME-EX-TX OMEGA DEVICE HOST LINK Front LINK OMEGA AT-OME-EX-RX AT-OME-EX-TX RS-232 IR HDBaseT OUT HDMI IN Rear Connect a category cable from this port to a network switch. This cable provide IP pass- through transport control from a control system to the display (sink) device connected to the receiver.
- Page 3 Installation Guide AT-OME-EX-KIT AT-OME-EX-RX AT-OME-EX-RX LINK OMEGA DEVICE Front AT-OME-EX-RX HDBaseT IN HDMI OUT RS-232 IR DC 48V Rear PWR / LINK The PWR LED indicator will glow green when the AT-OME-EX-RX is powered. The LINK LED indicator glows yellow when a solid link is established between the transmitter and receiver.
- Page 4 Installation Guide AT-OME-EX-KIT RS-232 and IR The AT-OME-EX-KIT provides pass-through transport of RS-232 protocol and/or IR over HDBaseT, which allows communication between a control system and an RS-232 or IR device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...
-
Page 5: Installation
Cable* Max. Distance @ 4K Max. Distance @ 1080p CAT5e 295 feet (90 meters) 330 feet (100 meters) CAT6 / CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters) *Atlona recommends TIA/EIA 568-B termination for optimal performance. -
Page 6: Connection Diagram
Installation Guide AT-OME-EX-KIT Connection Diagram Desktop Computer LI N IC E D EV AT-OME-EX-TX Microphone / Speaker -R X E- EX A T- IC E D EV LI N AT-OME-EX-RX Display AT-HDVS-CAM... -
Page 7: Led Indicators
Installation Guide AT-OME-EX-KIT LED Indicators The PWR and LINK LED indicator on both the transmitter and receiver unit provides basic information on the current status of the AT-OME-EX-KIT. The information in the table below applies to both the transmitter and receiver unit. Description Solid green Unit is powered. -
Page 8: Mounting Instructions
Installation Guide AT-OME-EX-KIT Mounting Instructions Both the AT-OME-EX-TX and AT-OME-EX-RX provide two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure. - Page 9 Installation Guide AT-OME-EX-KIT Repeat these steps to attach the second mounting bracket to the opposite side of the unit. Mount the unit to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. X - R E - E - O M...
-
Page 10: Updating The Firmware
Installation Guide AT-OME-EX-KIT Updating the Firmware Requirements: • AT-OME-EX-TX • AT-OME-EX-RX • Firmware file • Computer running Windows • USB-A to USB mini-B cable NOTE: The procedure outlines the update process for the AT-OME-EX-TX. However, the same procedure applies to the AT-OME-EX-RX. The AT-OME-EX- TX and AT-OME-EX-RX can be updated in any order. - Page 11 Installation Guide AT-OME-EX-KIT Notes...
- Page 12 • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
