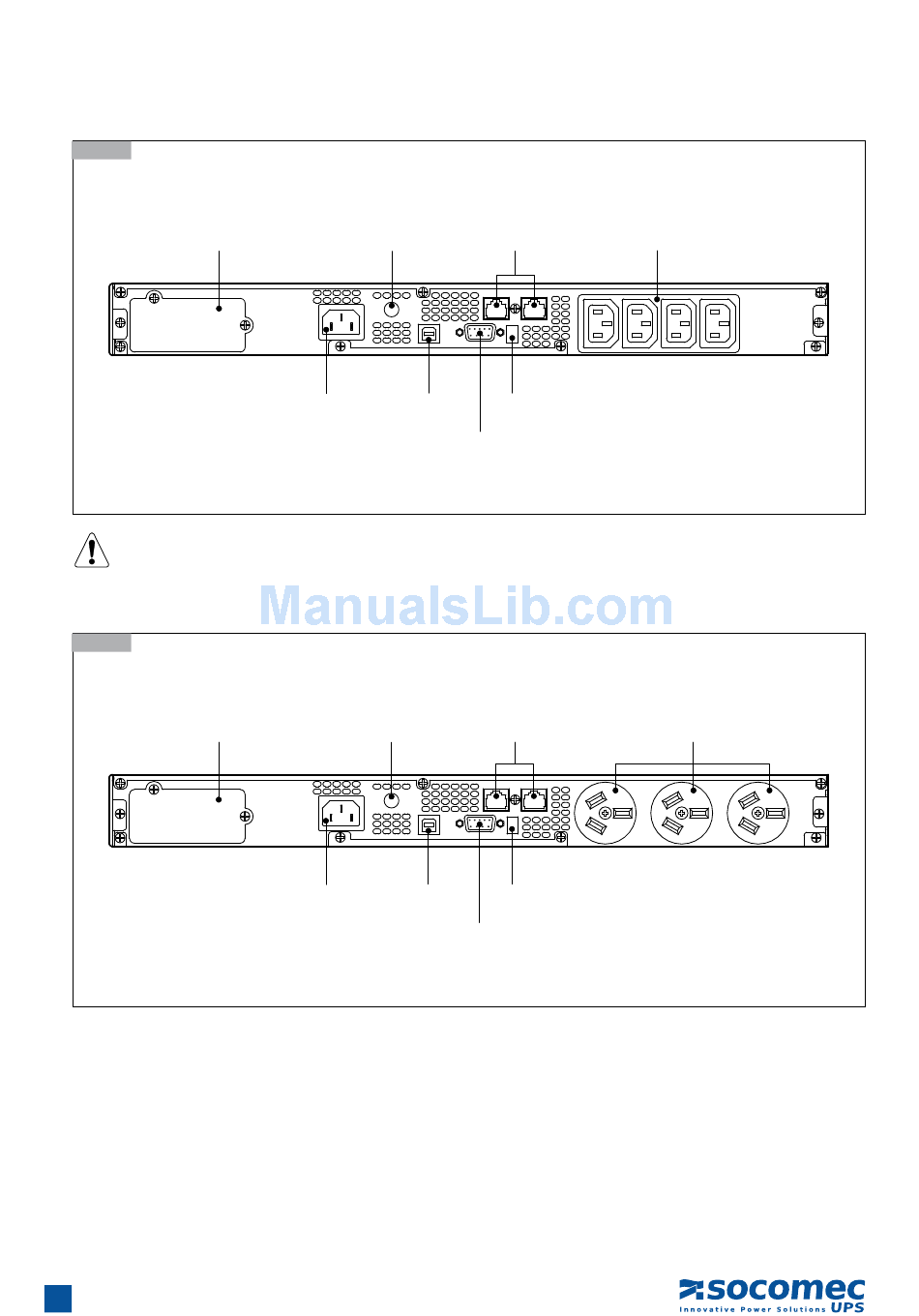

5. REAR VIEW

5.1-1
Rear view IEC 320
Slot for optional
communication boards
NOTE
The batteries charge to 90% capacity in approximately 3 hours. However, it is recommended that the batteries
charge for 6 to 24 hours after installation or long-term storage.
5.1-2
Rear view Australian standard
Slot for optional
communication boards
NETYS PR RACK 1U - Ref.: IOMNETPRXX01-GB 02
10
Input
protection
Main input socket USB Port
(IEC 320)
Input
protection
Main input socket USB Port
(IEC 320)
Network Transient
Protector
DIP Switches
RS232 serial port
Network Transient
Protector
DIP Switches
RS232 serial port
Output sockets
(IEC 320 10 A)
Output sockets
(Australian standard 10 A)
