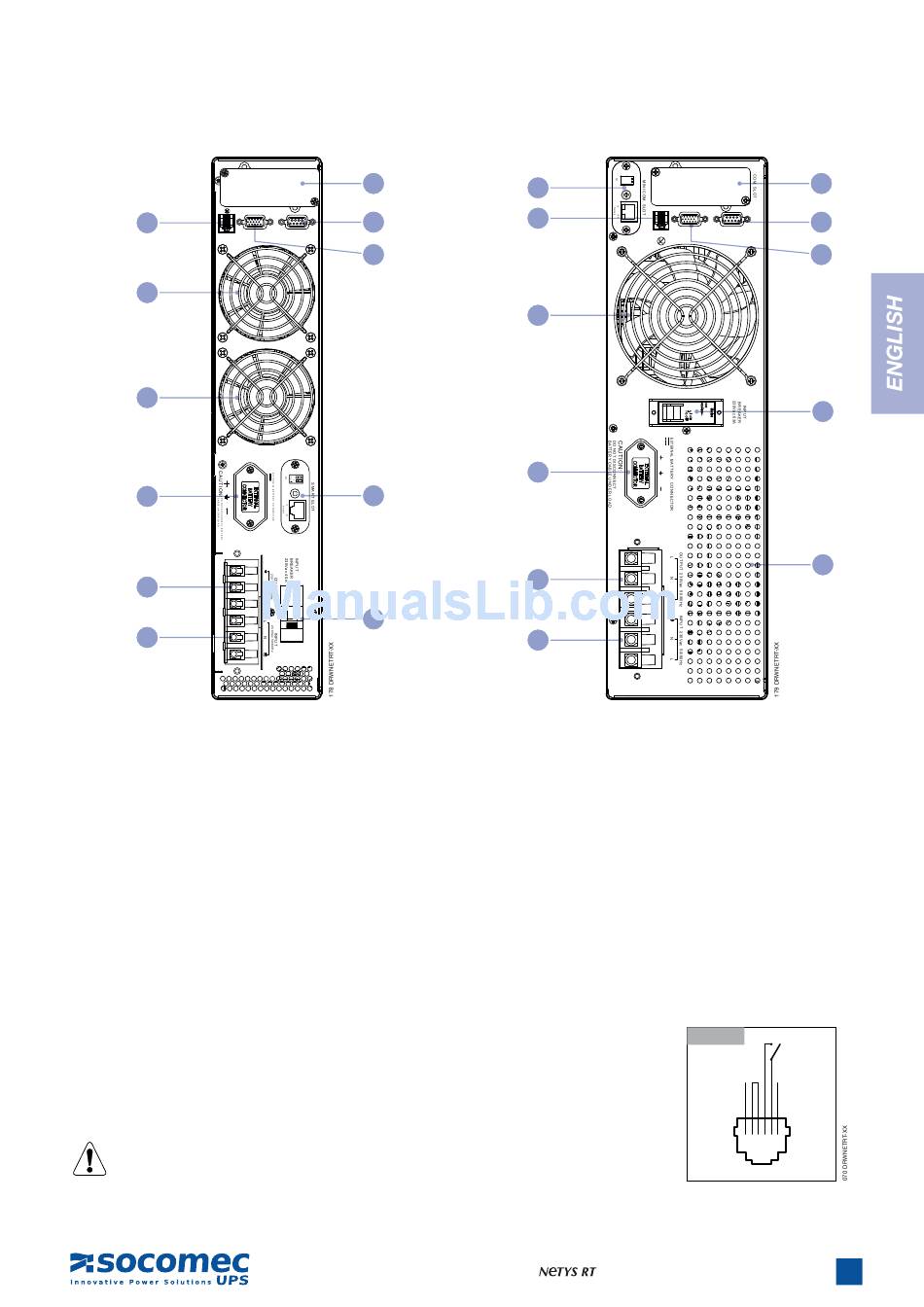

3. REAR VIEW

A
PARALLEL
EPO
B
B
C
D
E
Legend
A EPO (Emergency Power Off)
B Fan
C Battery extension socket
D Output terminals
E Input terminals
F Input switch
G RJ45 LAN ethernet connector
H Parallel D connector
I RS232 serial connector (JBUS protocol)
L Slot for optional communication cards
If requested, the UPS can also be switched off utilizing a remote external EPO contact. The
command is acknowledged when the contact is made and held for 3 seconds (default), as
in figure 3-1.
The external contact MUST be dedicated and voltage-free, so as not to cause
permanent damage to the UPS.
L
COM. SLOT
I
RS232
H
G
F
5 kVA
7 kVA
G
A
PARALLEL
EPO
B
C
D
E
3-1
5-11 kVA - Ref.: IOMNETRTXX01-GB 05
L
I
RS232
H
F
B
9 kVA
11 kVA
1 2 3 4 5 6
