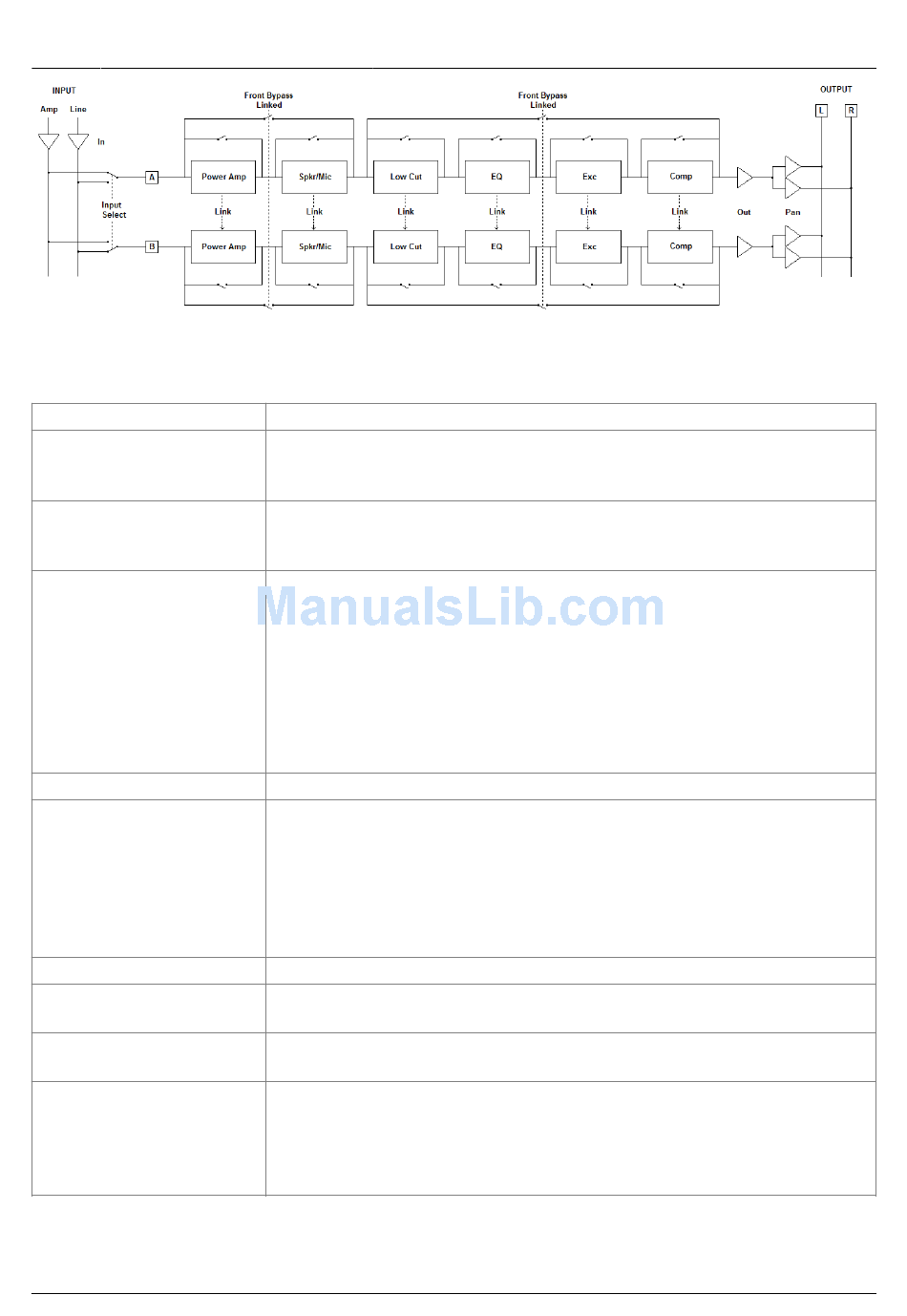

7.5 Technical Data

Designation
Speaker Input
ANALOG Inputs
Loadbox
Speaker Thru
ANALOG Outputs
Headphones Output
S/PDIF
AES/EBU
ADC
http://wiki.two-notes.com/
Characteristics
Jack 6.35 mm (1/4") unbalanced (TS, Tip/Sleeve)
Maximum input voltage: 280 V AC (51 dBu)
Security load: 200 Ohms / 10 Watts
2 X Combo XLR - Jack 6.35 mm (1/4") balanced (TRS)/unbalanced (TS)
Maximum input level: 8.70 dBu
Input impedance: 20 kOhms balanced, 10 kOhms unbalanced
Reactive or Resistive load, nominal impedance: 4 or 8 or 16 Ohms
(switch)
Maximum admissible power: 150W (assuming proper ventilation)
Maximum temporary admissible power : 200W (assuming proper
ventilation)
(see this article if your amplifier is more powerful)
Cooled by temperature-controlled fan
High Impedance mode if a cabinet is connected to the THRU output
(loadbox is disconnected).
Jack 6.35mm (1/4") unbalanced (TS)
2 x XLR balanced
Impedance: 600 Ohms balanced, 300 Ohms unbalanced
Maximum output level:
• (no load, balanced): 11.2 dBu
• (10 kOhm load, balanced): 10.7 dBu
• (no load, unbalanced): 5.1 dBu
• (10 kOhm load, unbalanced): 4.9 dBu
MONO out, Jack 6.35mm (1/4") balanced (TRS)
Sampling frequency: 44.1 kHz to 96 kHz
Master or slave configuration
Sampling frequency: 44.1 kHz to 96 kHz
Master or slave configuration
Sampling frequency: 192 kHz
Resolution: 24 bits
Noise level: -111 dB (A-weighted)
THD: 0.0026%
Stereo crosstalk: -109 dB
