Two Notes TORPEDO VB-101 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

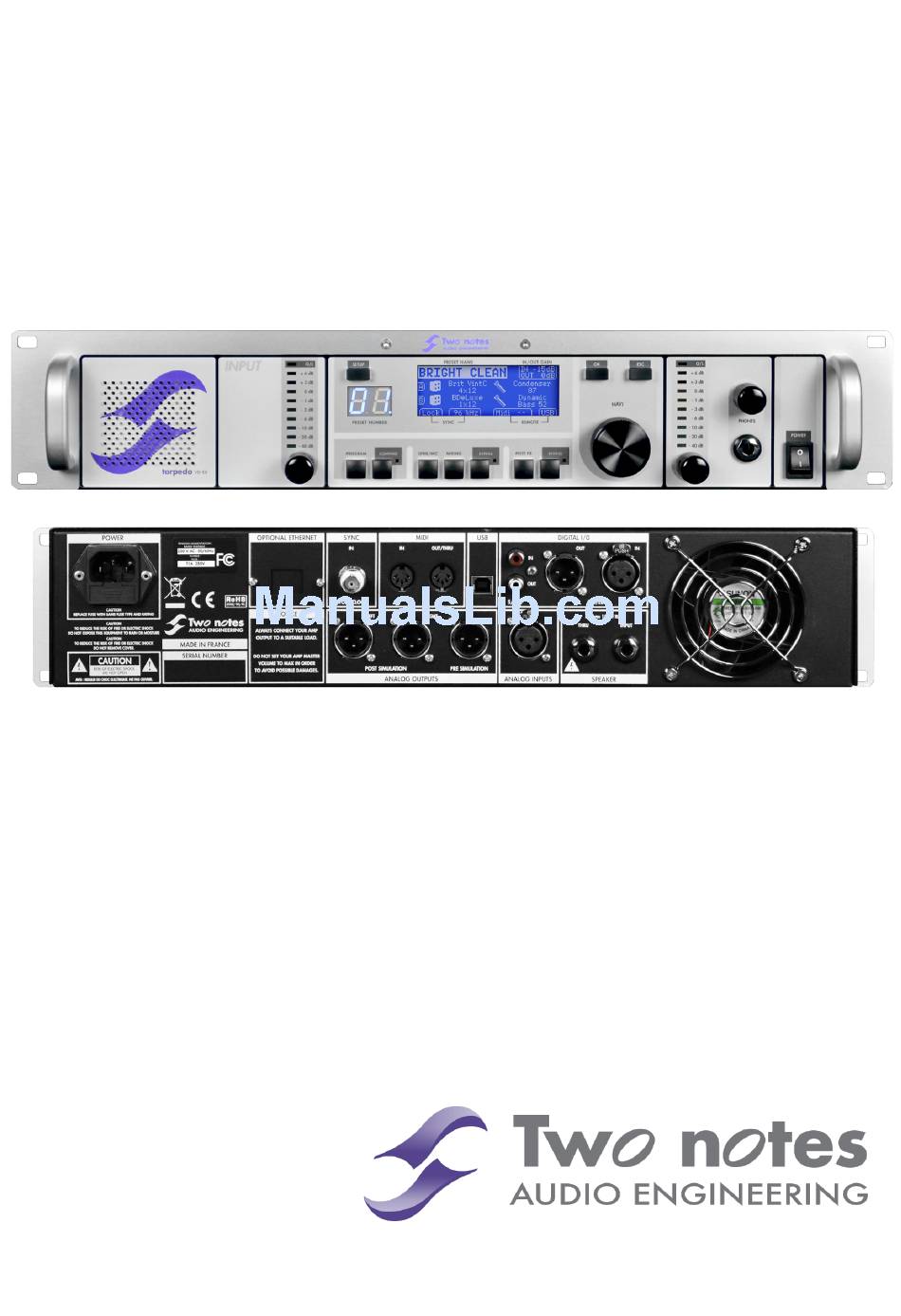

TORPEDO VB-101
User's Manual
V 2.11- 08/21/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORPEDO VB-101 and is the answer not in the manual?

Questions and answers

Related Manuals for Two Notes TORPEDO VB-101

Summary of Contents for Two Notes TORPEDO VB-101

  • Page 1 TORPEDO VB-101 User’s Manual V 2.11- 08/21/2012...
  • Page 3 OROSYS SAS cannot be held responsible for any damage, accidental or otherwise, that results from an inappropriate use of the TORPEDO VB-101. Please refer to the safety instructions included in this manual. The reproduction of any part of this document is strictly forbidden without the written authorization of OROSYS SAS.

  • Page 5: Table Of Contents

    3 Quick start guide Introducing the TORPEDO VB-101 ........15 Front panel .
  • Page 6 The TORPEDO VB-101’s interface ........27...
  • Page 7 Two Notes Website ........

  • Page 9: Foreword

    Any operation that requires opening the machine should be left to a qualified technician. 1.2 Reader warning The triangle symbol with an exclamation mark is an indication for important mes- sages concerning the correct operation of the device. Two Notes Audio Engineering Torpedo VB-101...

  • Page 10: Mains Power

    Always use a fuse of the same type as the original one. To prevent risks of electric shock and fire, never try to bypass the fuse by any means 1.6 Safety use conditions The TORPEDO VB-101 must never be used: • near a heat source, • near a flame, •...

  • Page 11: Declaration Of Conformity

    Product: TORPEDO VB-101 Test Manager: Guillaume Pille The Two Notes TORPEDO VB-101 is certified to be compliant to the CE and FCC standards: • EN 55103-1 : 1996 and EN 55103-2 : 1996. • EN 60065 05/2002 + A1 05/2006.

  • Page 12: Disposal Of Waste Equipment By Users In Private Household In The European Union

    OF SAME DUE TO DEFECTS OR AVAILABILITY OF SAME DURING SERVICE. In case you have to send your TWO NOTES AUDIO ENGINEERING product to any other location, it is of vital importance that you retain the original packing materials. It is very difficult to avoid damage when shipping the product without those materials.

  • Page 13: Warning Regarding The Proper Use Of A Loadbox With A Tube Amplifier

    The TORPEDO VB-101 is a loadbox. This term indicates that the TORPEDO VB-101 is a load that can electrically replace the speaker cabinet while dissipating (transforming into heat) the power that comes out of the amplifier.

  • Page 14: What Output Volume For My Amplifier

    A good habit is to keep the usual volume setup you would use in re- hearsal or on stage, rather than just following what the volume poten- tiometer indicates. Two Notes Audio Engineering Torpedo VB-101...

  • Page 15: Quick Start Guide

    Quick start guide 1 Introducing the TORPEDO VB-101 Two Notes Audio Engineering is proud to introduce the TORPEDO VB-101, the first generation of the Torpedo series. This product has been developed through several years of technical development, with great attention paid to the needs of guitarists, bassists and sound technicians confronted to the challenges posed by the miking of instrument amplifiers, on stage or in the studio.

  • Page 16: Front Panel

    Analog Line Input (Bal. or Unbal.) 4 Only a speaker simulator? The TORPEDO VB-101 is a standalone unit you can bring with you in any situation, whenever silent playing is needed. The role of the TORPEDO VB-101 is to replace the following elements of the traditional guitar or bass setup: •...

  • Page 17: Tube Stage Output

    (in terms of playing sensation) and for the listener (in terms of sound quality). You can embed up to 50 Two Notes cabinets in the TORPEDO VB-101. Download the free TORPEDO Remote software (Mac OSX and Windows PC) from...

  • Page 18: Dual Miking

    When recording guitars or basses, it is common to apply a few effects to shape the sound before it is sent to a PA or a recorder. In the TORPEDO VB-101 you will find a simple but efficient EQ filter with two modes, GUITAR or BASS, a 1-band Exciter, a studio Compressor, and a Spatializer that is particularly useful when playing with headphones.
  • Page 19 AVIS : RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR. SPEAKER OUTPUT 8 OHMS 150W RMS max Electric guitar or bass TORPEDO VB-101, rear view Headphones Guitar or bass amplifier TORPEDO VB-101, front view In this first simple configuration, you will be creating a line-level professional "studio" quality output for your amp, which will allow you to familiarize yourself with the machine within minutes.
  • Page 20 PEDO VB-101 before powering-on your amplifier. The TORPEDO VB-101 starts on preset 00. Now the input and output gains must be set up. The SGA (Safe Gain Adjustment) being activated by default, we present you here with a 6-step method to quickly and easily set up these gains: 1.

  • Page 21: Connecting The Torpedo Vb-101

    TORPEDO VB-101 has been created for. 1 In the studio The TORPEDO VB-101 will find its place in the studio for analog or digital recording. We shall con- centrate here on digital recording.

  • Page 22: On Stage

    Connecting the TORPEDO VB-101 2 On stage The analog I/O of the TORPEDO VB-101 offers great options on stage. For example, the analog outputs (number 10 in figure 3.2) can be connected at the same time both to the front mixing console and to a monitoring system (not shown here).

  • Page 23: Combined Setup

    On stage or in the studio, you may need to feel the sound coming out of a cabinet. You can simply connect a cabinet to the THRU output on the TORPEDO VB-101. You will be able to hear the sound coming from the amp as usual, without any simulation or effect from the TORPEDO VB-101.

  • Page 24: Dry Recording And Re-Miking

    1. Dry recording the amplifier (i.e., recording the sound of the amplifier at the speaker output with the TORPEDO VB-101 but without a speaker simulation); 2. Using the TORPEDO VB-101 as an external processing unit inside a digital or analog loop by using the AES/EBU or the S/PDIF I/O.

  • Page 25: Step Two: Re-Miking The Signal

    Connecting the TORPEDO VB-101 On the following table we are listing the various options you have with the TORPEDO VB-101. It is very hard to play while hearing a dry sound only, and we indicate on which channel you can get a wet signal (i.e., with the speaker simulation on).

  • Page 26: Stay Connected

    5 Stay connected You may have an idea to use the device in some innovating or creative way. Do not hesitate to come and share your observations on the Two Notes Audio Engineering Forum or social networks. Please go to the Two Notes Audio Engineering website and click on the "Community"...

  • Page 27: Configuring And Using Torpedo Vb-101

    Here is a representation of the screen displayed in PERFORM mode. The PERFORM screen is the default screen you will see when first using the TORPEDO VB-101. From that mode you can navigate the presets. This is the mode you will be on when you are playing without editing or changing any parameter.

  • Page 28: Input Gain Control

    The input gain consists in digital data, like all the parameters in the TORPEDO VB-101, and it can either be set up globally or saved with each preset. Please refer to section 5. 4.1 for more information about gain the input gain configuration.

  • Page 29: Main Control Panel

    POST FX menu Compare switch The TORPEDO VB-101 control panel includes the various knob and switch controllers that give access to the machine and/or sound parameters. You can access any menu by pressing the corresponding switch. The navigation encoder has various functions: •...

  • Page 30: Audio

    • Input Gain Mode: For maximum flexibility, the TORPEDO VB-101 input gain is saved with each preset. However, it is sometimes useful to retain a unique input gain, regardless of what preset is being used.

  • Page 31: Sync

    ("Output Freq.") in the SETUP menu when the TOR- PEDO VB-101 is actually locked to the external signal. • Output Freq.: Indicates the frequency of the TORPEDO VB-101 digital outputs. Analog outputs always run at 192 kHz. 4.3 Midi •...

  • Page 32: Program

    With the "COMPARE" switch, you have access to an advanced comparison functionality devel- oped by Two Notes Audio Engineering. Think about it as a temporary set of parameters that re- initialized after each startup of the unit. It can be used to quickly and easily compare two sets of parameters.

  • Page 33: Spkr/Mic

    final stage of a traditional amplifier brings — that is, the power amplifier. Plug your device into the LINE input of the TORPEDO VB-101 and enjoy the typical sound of the Two Notes electrically accurate virtual tube power amplifier. Please note that A and B share the same power amplifier.

  • Page 34: Speaker And Mic

    Configuring and using TORPEDO VB-101 7.2 Speaker and Mic You have access to more than 45 different cabinets, and each cabinet can be miked with 1 of the 8 available microphones. Please refer to Part 7 to discover the microphone and cabinet library.

  • Page 35: Center

    8.4 Variphi • The Variphi parameter is a one-of-a-kind control, exclusively found in the TORPEDO VB-101. It allows you to modify the frequency content of the signal, using the properties of the sum of two signals with different phases.

  • Page 36: Overload

    Configuring and using TORPEDO VB-101 8.5 Overload • A loudspeaker is essentially a system designed to faithfully reproduce the sound transmitted by the amplifier. Nonethe- less, a loudspeaker is determined by certain particular audio properties depending on the power that is applied to it.

  • Page 37: Exciter

    • Frequency: Controls the cutoff frequency of the filter. 10.2 EQ The TORPEDO VB-101 includes an equalizer, which is a central tool for mixing. With a few adjust- ments, it is possible to cut down an excess of low or high frequencies, to boost a frequency band for more presence, or to apply the classic V-shape tone onto a distorded guitar.

  • Page 38: Comp

    10.5 Spatial The "Spatial" parameter is a psycho-acoustic effect creating a sensation of stereo from the mono sound of the TORPEDO VB-101. This effect is particularly audible with headphones, making the sound more pleasant. The effect can be turned ON or OFF.

  • Page 39: Output Volume Control And Headphone Output

    Configuring and using TORPEDO VB-101 11 Output volume control and headphone output This encoder controls the output volume of the unit. The TOR- PEDO VB-101 being a digital product, it is absolutely critical that you avoid all saturation of the input signal, or you may considerably reduce sound quality.

  • Page 40: Torpedo Remote

    Configuring and using TORPEDO VB-101 12 TORPEDO Remote You can add new cabinets or IR files to your TORPEDO VB-101 by using the standalone applica- tion TORPEDO Remote for Windows™ and MAC OSX™. Download the software from the Two Notes website: http://www.two-notes.com.

  • Page 41: Tur Files

    12.3 Third-party IRs in .WAV or .AIF format The TORPEDO VB-101 is compatible with standard IRs in .WAV or .AIFF format. The TORPEDO Remote software will handle any kind of resolution, frequency, or length, and will follow this process to convert the file into the TORPEDO format:...

  • Page 43: Midi Implementation

    Every preset in the TORPEDO VB-101 is identified by a corresponding program number. Preset 00 of the TORPEDO VB-101 corresponds to the MIDI PC 01. You can address the 100 presets (from 00 to 99), with MIDI PC 01 to MIDI PC 100. So you can access every preset by sending a PROGRAM CHANGE message with the appropriate number.
  • Page 44 0 = 0% ; 63 = 50% ; 127 = 100% Depth 0 - 127 0 = 0% ; 63 = 50% ; 127 = 100% Character 0 - 1 0 = Triode ; 1 = Pentode Table 6.1: TORPEDO VB-101 MIDI Implementation Two Notes Audio Engineering Torpedo VB-101...

  • Page 45: Specifications

    Dynamic microphone Sennheiser™ MD421 Knightfall Condenser microphone Blue™ Dragonfly Condenser 87 Condenser microphone Neumann™ U87 Ribbon160 Ribbon microphone Beyerdynamic™ M160N Ribbon121 Ribbon microphone Royer™ R121 Bass 20 Dynamic microphonee Electrovoice™ RE20 Bass 5 Dynamic microphone Shure™ Beta52 Two Notes Audio Engineering Torpedo VB-101...

  • Page 46: List Of Cabinets

    3 List of Cabinets Designation Inspired by Default factory GUITAR cabi- nets 2Notes CSG Two Notes Custom 1x12" ElectroVoice® EVM12L Angl VintC Engl® 4x12" Celestion® V30 Blonde 63 Fender® Bassman ’63 Blonde Tolex Piggy Back 2x12" Brit 65C Marshall® 1965A 4x10" Celestion® G10L-35 close back Brit VintC Marshall®...
  • Page 47 Specifications Designation Inspired by Default factory BASS cabinets 2Notes CSB Two Notes Custom 1x15" Alu XL Hartke® XL 4x12" AZ Ben SWR® Big Ben 1x18" AZ Work SWR® WorkingMan 4x10" Calif Low Mesa/Boogie® 2x10" Fridge Ampeg® 8x10" Heaven Bot David Eden® 1x15"...

  • Page 48: Technical Data

    • (10 kOhm load, balanced): 10.5 dBu • (no load, unbalanced): 4.7 dBu • (10 kOhm load, unbalanced): 4.5 dBu Noise: less than -94 dBu from 20 Hz to 20 kHz Headphones Output MONO out, Jack 6.35mm (1/4") balanced (TRS) Two Notes Audio Engineering Torpedo VB-101...
  • Page 49 Input voltage: 110, 115 or 230 V AC (depending on the country of purchase), 50-60 Hz Power: approx. 10 W Dimensions Width: 430 mm, 483 mm including rack-mounting edges Depth: 307 mm, 355 mm including connectors and knobs Height: 90 mm Weight: 7.5 kg Two Notes Audio Engineering Torpedo VB-101...

  • Page 51: Technical Support

    Part 8 Technical support Should you encounter a problem with your TORPEDO VB-101 or if you need help on some technical aspects, please note that Two Notes Audio Engineering has developed on-line services to provide you with fast and efficient technical support.
  • Page 53 http://www.two-notes.com/...
