This potentiometer controls the SPEAKER input gain of the unit. The Torpedo Studio being a digital
product, it is absolutely critical that you avoid any saturation of the input signal, or you may
considerably reduce the sound quality. To get the best sound, try to have the same volume (or close)
on all different sounds coming to the Torpedo Studio.
This way you won't have to change the input gain when switching the channels on your amplifier. If
you don't have individual volume settings on your amplifier channels, always do the gain setting with
the loudest channel.

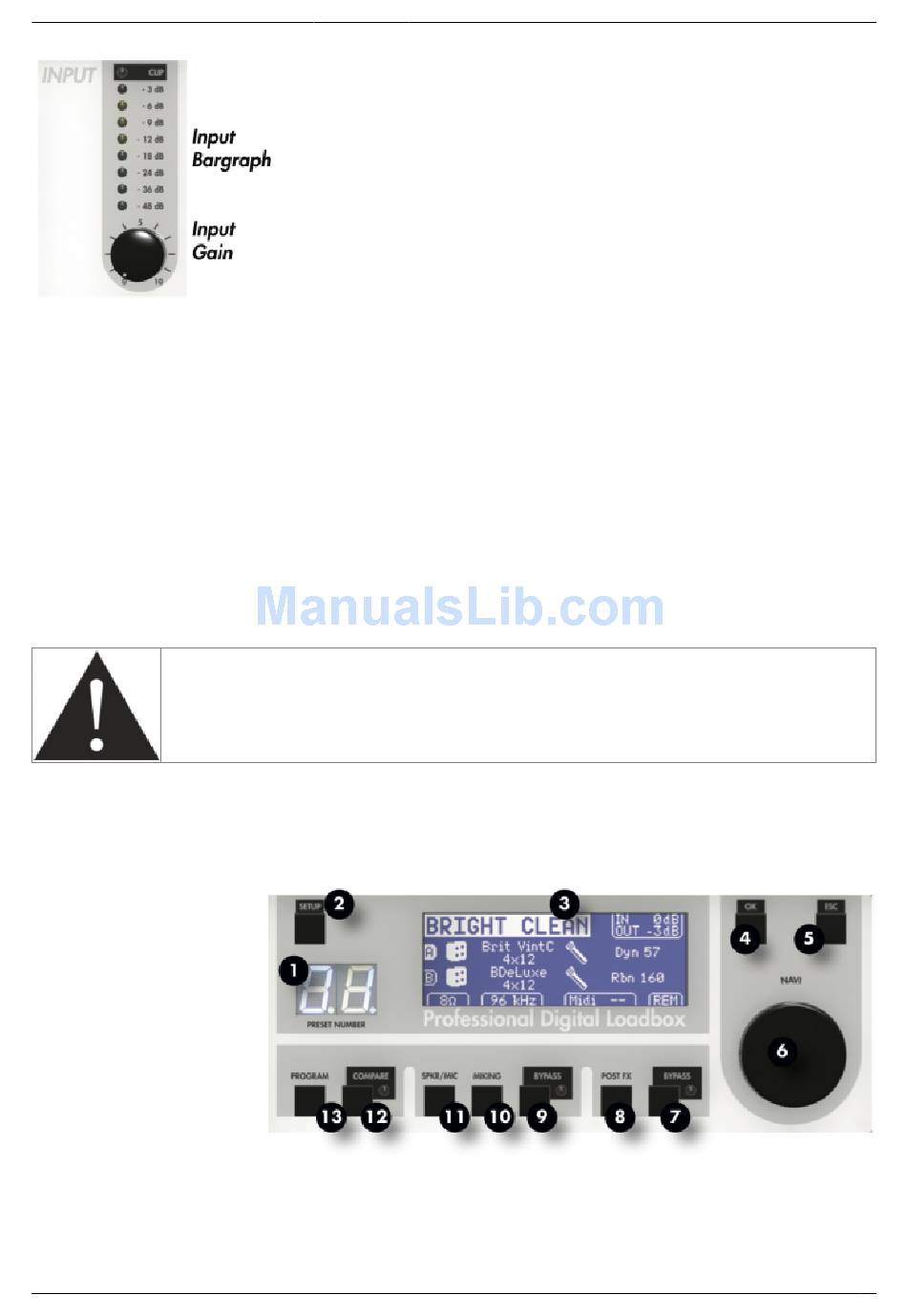

The input gain adjustment must be done with input signal present at the SPEAKER input. The input
bargraph gives you a visual indication of the input signal amplitude. The upper red led is on when
there is saturation in the input stage: lower the volume of your amplifier output and/or lower the input
gain.
For optimum sound quality, we recommend keeping the peak levels of the
input signal at a maximum of -12dB to -6dB on the bargraph.

5.3 Main control panel

1. Preset number
2. Setup menu
3. Graphic display
