In this ﬁrst simple conﬁguration, you will be creating a line-level professional "studio" quality output

for your amp, which will allow you to familiarize yourself with the machine within minutes.

First, plug a cable into the speaker output of your amp.

Remember to set the Torpedo Studio to the same impedance rating as the

one indicated above the socket you are plugged into on the back of your

ampliﬁer. If you are using a speaker cabinet connected to the THRU output,

the impedance on the ampliﬁer must match the cabinet's impedance,

regardless of the value indicated on the Torpedo Studio.

Always use a standard speaker cable (a pair of insulated conductors with no

shielding) to connect your ampliﬁer to the Torpedo Studio. Using an

instrument cable instead of a speaker cable can cause signiﬁcant damage

to your ampliﬁer, requiring service by a technician.

Then, plug this cable into the SPEAKER INPUT jack of the Torpedo Studio (number 12 in ﬁgure "3.1.2

Rear panel").

Finally, plug your headphones into the Headphones output of the Torpedo Studio (number 8 in ﬁgure

"3.1.1 Front panel").

You can now power on the Torpedo Studio, and then your ampliﬁer.

http://wiki.two-notes.com/

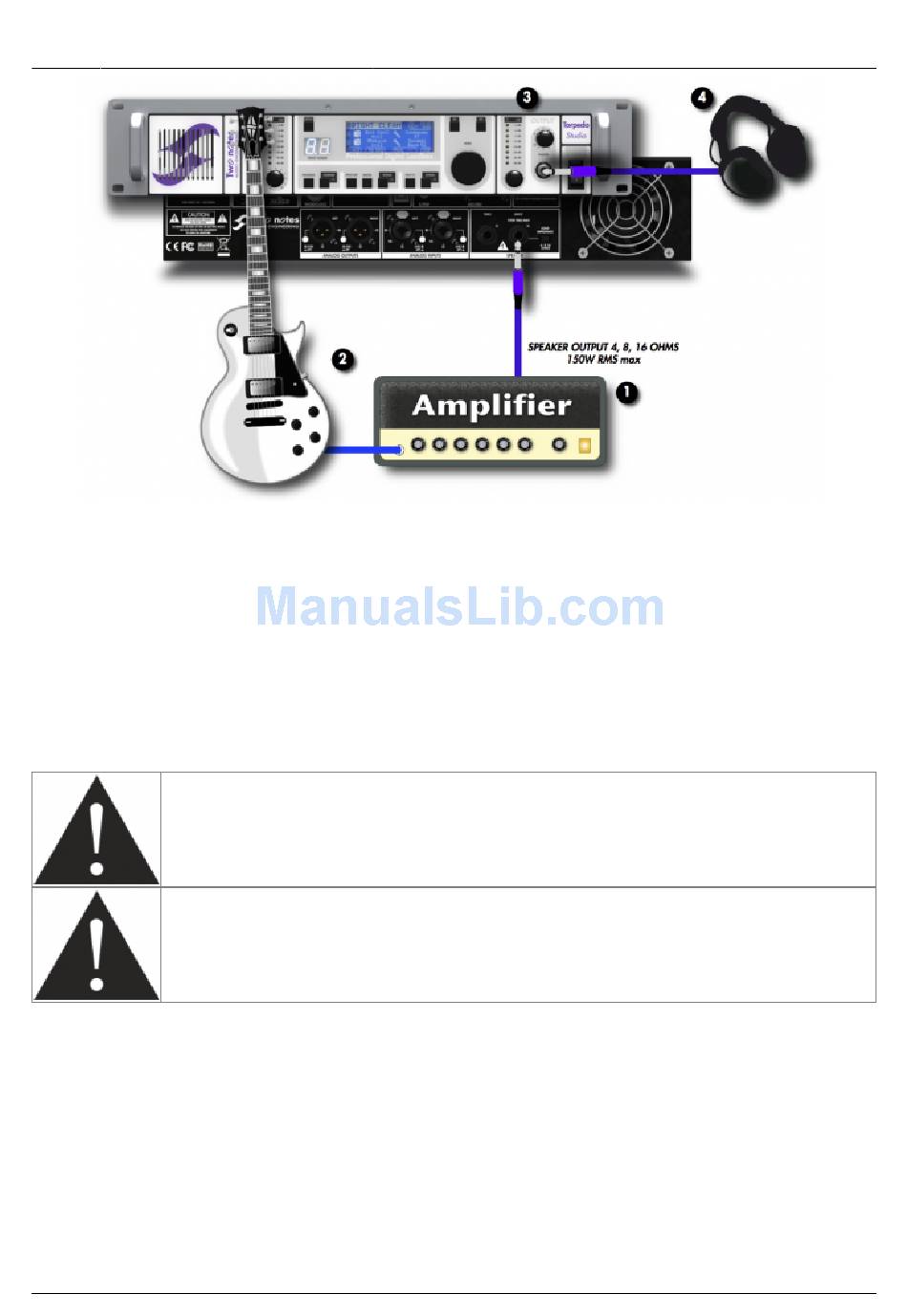

1. Guitar or bass

ampliﬁer

2. Electric guitar or

bass

3. Torpedo Studio

4. Headphones
