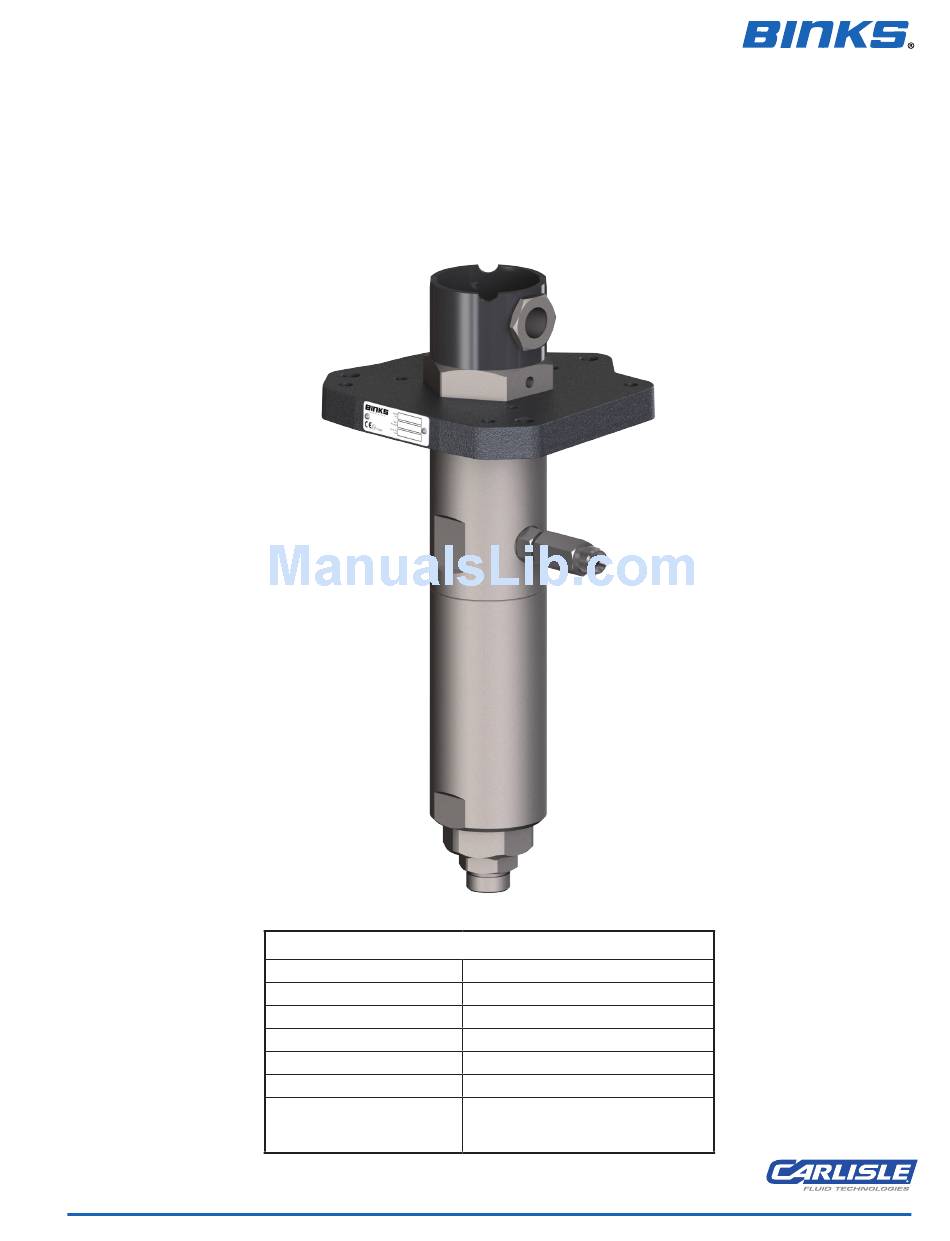

SERVICE MANUAL
EN

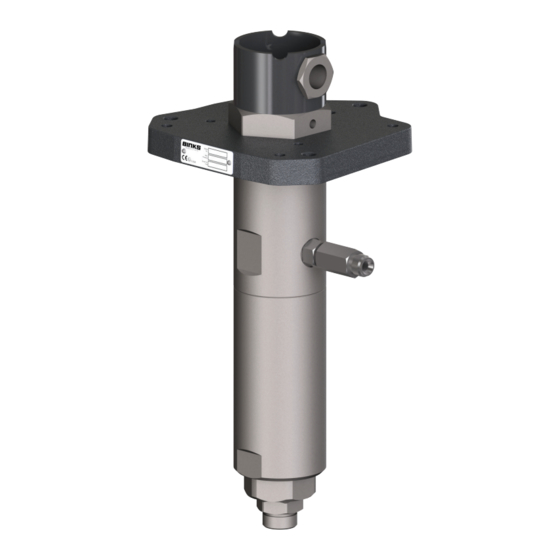

FX12 FLUID PUMP ASSEMBLIES
77-2970-R2 (1/2018)
Models: FX12PL (PTFE/Leather), FX12PP (PTFE),
FX121PU (PTFE/U-Cups), FX12UC (U-Cups)
SPECIFICATIONS
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Fluid inlet size:
Fluid outlet size:
Weight:
Wetted parts materials of
construction:
96 bar [1390 psi]
72 cc [2.4 oz]
4.3 L /m [1.1 gal/m]
3/4" NPS(m)
3/8" BSP(m) & 3/8" NPS(m)
6.4 kg [14.1 lbs]
Stainless Steel, Tungsten Carbide,
Ceramic Coated Stainless Steel, PTFE,
Polyethylene, Leather
1 / 10
www.carlisleft.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the FX12PL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Binks FX12PL

  • Page 1 SERVICE MANUAL FX12 FLUID PUMP ASSEMBLIES Models: FX12PL (PTFE/Leather), FX12PP (PTFE), FX121PU (PTFE/U-Cups), FX12UC (U-Cups) SPECIFICATIONS Maximum fluid pressure: 96 bar [1390 psi] Displacement per cycle: 72 cc [2.4 oz] Output @ 60 cycles/min: 4.3 L /m [1.1 gal/m] Fluid inlet size: 3/4"...
  • Page 2 IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). Binks reserves the right to modify equipment specification without prior notice. www.carlisleft.com...
  • Page 3 170mm 16 " 291mm 32 " 219mm 8 " FX12 FLUID PUMP ASSEMBLIES – TROUBLESHOOTING PROBLEM CAUSE SOLUTION Material in solvent cup Worn or dirty upper packings. Replace or clean upper packings as necessary. Pump does not stop on Worn or dirty lower ball check. Replace or clean the parts as necessary.
  • Page 4 FX12 FLUID PUMP ASSEMBLIES (CHEVRON PACKINGS) Models: FX12PL (PTFE/Leather), FX12PP (PTFE), FX12PU (PTFE/UHMW) • • • • • • • • • • • • 0115-010269 FX12 CHECK VALVE ASSEMBLY • • • • • www.carlisleft.com 4 / 10 77-2970-R2 (1/2018)
  • Page 5 FX12 FLUID PUMP ASSEMBLIES (CHEVRON PACKINGS) Models: FX12PL (PTFE/Leather), FX12PP (PTFE), FX12PU (PTFE/UHMW) ITEM FX12PL FX12PP FX12PU PART NUMBER DESCRIPTION QTY. QTY. QTY. 0115-010232 FX12 SOLVENT CUP 0115-010294 SIGHT GLASS 0115-010231 •+ O-RING 0115-010141 FX12 UPPER PACKING RETAINER 0115-010205 PUMP ADAPTER PLATE 0115-010143 •+...
  • Page 6 FX12 FLUID PUMP ASSEMBLIES (U-CUPS) Models: FX12UC • • • • • • • • • • • • • • • • 0115-010269 FX12 CHECK VALVE ASSEMBLY • • • • • www.carlisleft.com 6 / 10 77-2970-R2 (1/2018)
  • Page 7 FX12 FLUID PUMP ASSEMBLIES (U-CUPS) Model: FX12UC ITEM PART NUMBER DESCRIPTION QTY. 0115-010232 FX12 SOLVENT CUP 0115-010294 SIGHT GLASS 0115-010231 • + O-RING 0115-010230 • SPACER 0115-010161 • + FX12 UPPER U-CUP SEAL 0115-010229 FX12 UPPER U-CUP RETAINER 0115-010205 PUMP ADAPTER PLATE 0115-010143 •...
  • Page 8 FX12 FLUID PUMP (CHEVRON PACKINGS) – MAINTENANCE Models: FX12PL (PTFE/Leather), FX12PP (PTFE), FX12PU (PTFE/UHMW) MAINTENANCE SYMBOLS: = MAINTENANCE ORDER Reverse for assembly = ANTI SEIZE PASTE = PETROLEUM GREASE/JELLY = THREAD LOCKER LOCTITE # or equivalent = TORQUE VALUE Nm [in-lb or ft-lb] SEE DETAIL "C"...
  • Page 9 FX12 FLUID PUMP (U-CUPS) – MAINTENANCE Models: FX12UC MAINTENANCE SYMBOLS: = MAINTENANCE ORDER Reverse for assembly = ANTI SEIZE PASTE = PETROLEUM GREASE/JELLY = THREAD LOCKER LOCTITE # or equivalent = TORQUE VALUE Nm [in-lb or ft-lb] SEE DETAIL "A" SEE DETAIL "C"...
  • Page 10 ©2018 Carlisle Fluid Technologies, Inc. All rights reserved. Binks is part of Carlisle Fluid Technologies, a global leader in innovative finishing technologies. For technical assistance or to locate an authorized distributor, contact one of our international sales and customer support locations.
