Summary of Contents for Binks 7/15 PSP

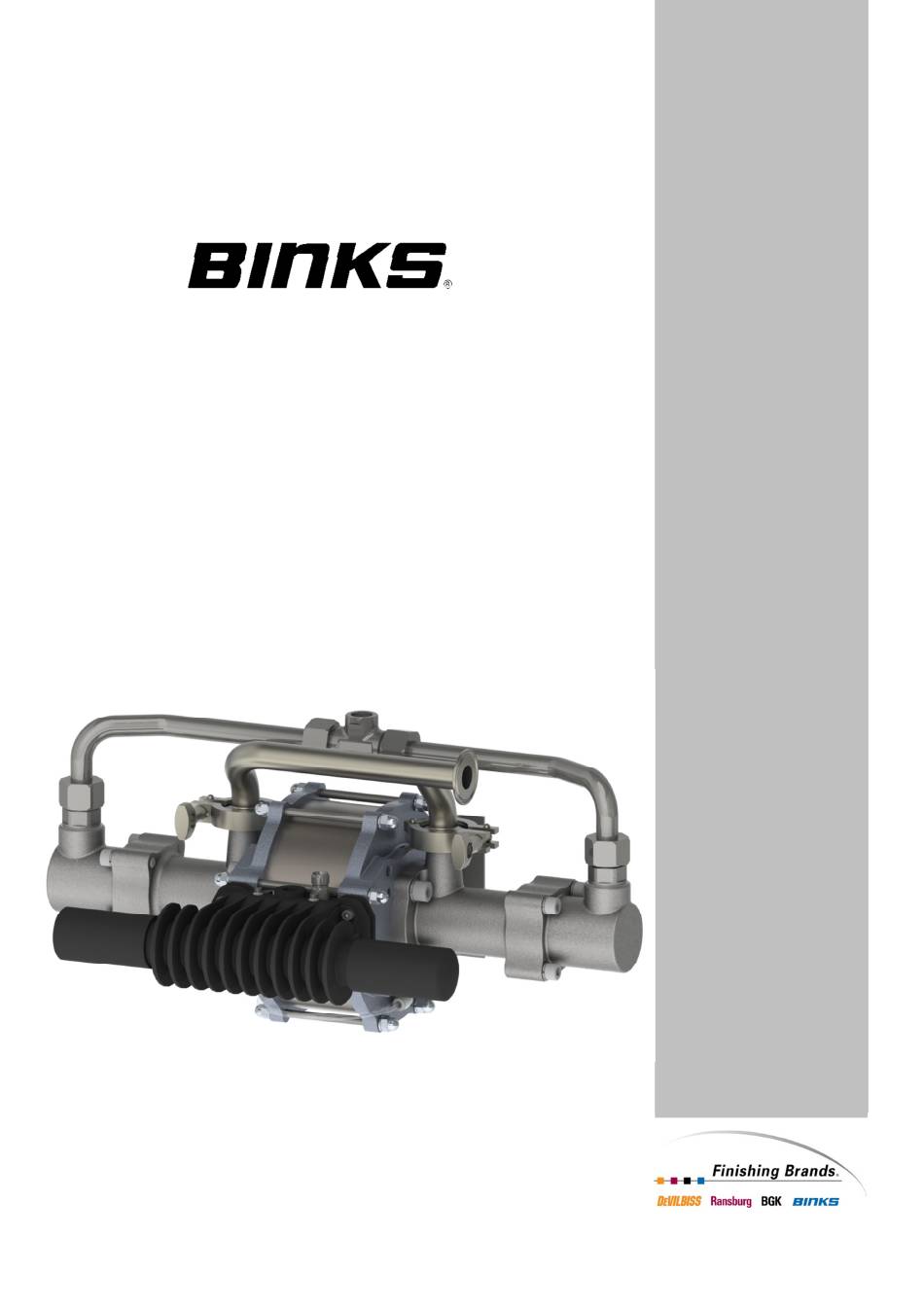

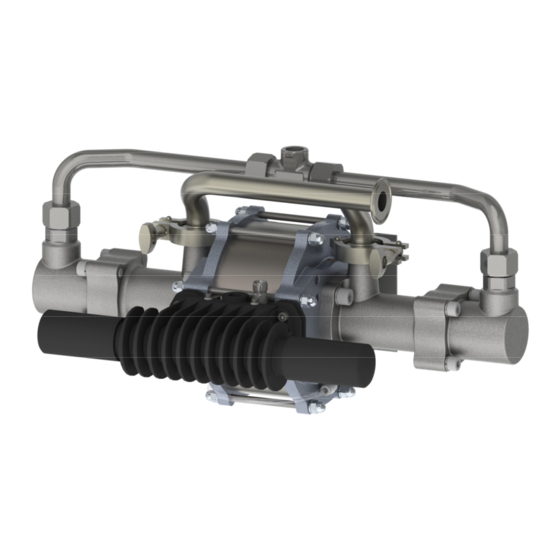

- Page 1 Instruction Manual Maple 7/15 PSP Model 10 41 47...
- Page 2 Instruction Manual Page 2 of 16 Issue: 1.1...
- Page 3 Instruction Manual Specification Pump Ratio 15:1 Max. Air Pressure Inlet 7 Bar Max. Fluid Pressure 105 Bar 0.166 Litres Nominal Flow Volume / Cycle 0.044 US Gall 10.0 Litres / min Fluid Output @ 60 cycles/min 2.6 US Gall / min Maximum Recommended Continuous Cycle Rate 20 Cycles /min Maximum Recommended Intermittent Cycle Rate...
- Page 4 Instruction Manual Page 4 of 16 Issue: 1.1...
- Page 5 Instruction Manual Page 5 of 16 Issue: 1.1...
- Page 6 Instruction Manual Page 6 of 16 Issue: 1.1...
- Page 7 Instruction Manual Parts List – 104147 ITEM PART No DESCRIPTION REMARKS 0115-010102 AIR VALVE ASSEMBLY 161992 Ø117.5 x 2.62 VITON O-RING 161993 Ø20.35 x 1.78 VITON O-RING 161994 Ø4.47 x 1.78 O'RING 161995 Ø19.5 x 3.00 O-RING 162703 SHAFT SEAL 162704 SHAFT BEARING 162746...
- Page 8 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) Item 48 – 194293 Air Piston Detail ITEM PART No DESCRIPTION REMARKS 162702 PISTON SEAL 165964 M12 x 40 GRUBSCREW (ST ST) 192759 PISTON SHAFT 192760...
- Page 9 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) Item 42 - 194292 Piston Assembly ITEM PART No DESCRIPTION REMARKS 160526 CONICAL SPRING 162743 Ø33 X 2 'O' RING PTFE 162744 Ø23.52 X 1.78 ORING PTFE 162745...
- Page 10 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) = MAGNET HAZARD Item 1 - 0115-010102 Valve Assembly ITEM PART No DESCRIPTION REMARKS 0115-010015 SPOOL AND SLEEVE ASSEMBLY 162789 SPOOL AND SLEEVE O’RING Not Shown 0115-010016 BUMPER...
- Page 11 Instruction Manual Removal of a single fluid piston 16mm 10mm Page 11 of 16 Issue: 1.1...
-
Page 12: Fault Finding
Instruction Manual Fault Finding Symptom Possible Cause Remedy Pump will not a. Air getting into the suction a. Check seals and hose connections ‘Prime’ hose/manifold b. Replace piston seals b. Worn piston seals c. Inspect, clean/replace balls/seats c. Ball checks not seating correctly Pump will not run a. -
Page 13: Maintenance Schedule
Instruction Manual Spares Kits for Maple 7/15 Pump Kit No. Part No. Description Remarks 250653 Fluid Section Service Kit Check Main Parts List 250726 Fluid Section Overhaul Kit for details of individual Kit Contents 250657 Air Motor Seal Kit 192765 Pilot Valve Assembly 2off per Pump 0115-010015 Main Spool &... - Page 14 Instruction Manual Accessories Part No. Description Remarks 192206 1” Sanitary Gasket 192009 1 & 1½” Sanitary Clamp 502608 Seal Insertion Tool For Shaft seal (9) 502769 Bellows Assembly Tool 502382 Bellows Assembly Spigot AGMD-010 Kluber Isoflex Topas NB 52 (Grease type #) 50 ml Tube 192779 Exhaust Tube Adapter (1”...
- Page 15 Instruction Manual Page 15 of 16 Issue: 1.1...
- Page 16 195 Internationale Blvd. Glendale Height,IL 60139 630-237-5000 Toll Free Customer Service and Technical Support 800-992-4657 Toll Free Facsimile 800-246-5732 Binks registered office Finishing Brands Germany GmbH Justus-von-Liebig-Straße 31, 63128 Dietzenbach. Amtsgericht Offenbach HRB 43560 Page 16 of 16 Issue: 1.1...
