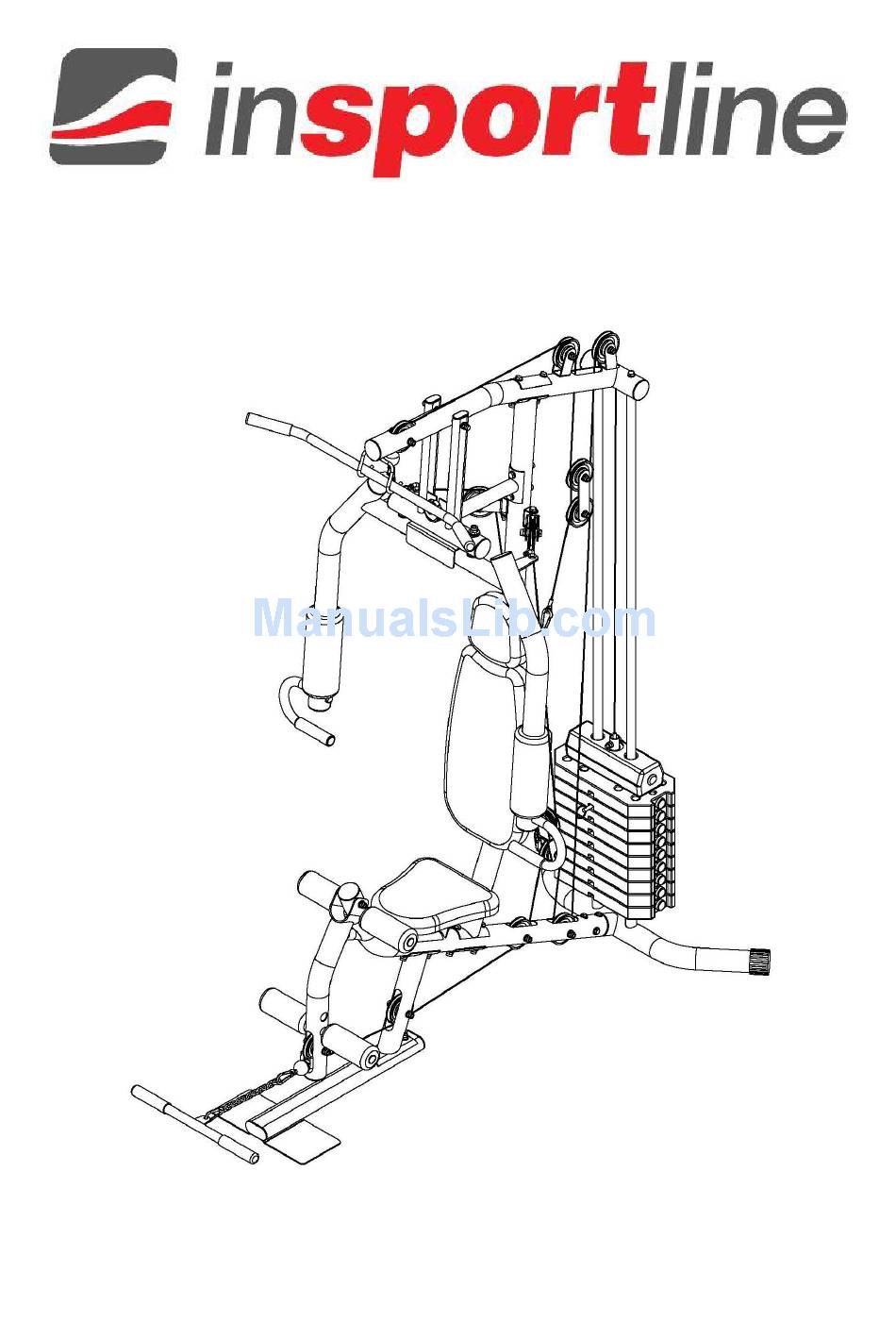

USER MANUAL - EN

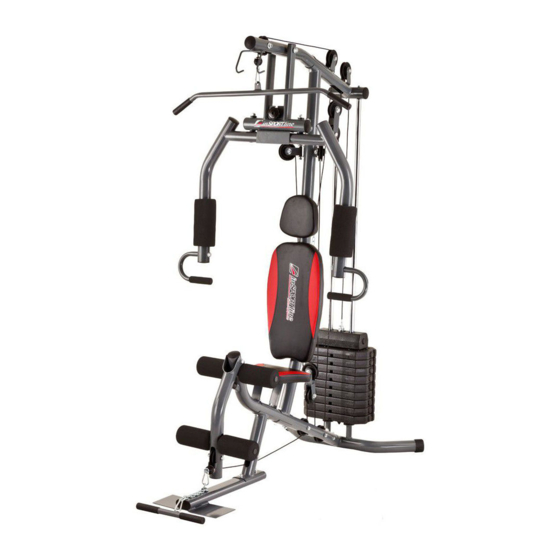

IN 7255 Home Gym inSPORTline ProfiGym C30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN 7255 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline IN 7255

Summary of Contents for Insportline IN 7255

  • Page 1 USER MANUAL - EN IN 7255 Home Gym inSPORTline ProfiGym C30...
  • Page 2 OBSAH SAFETY INSRUCTIONS ......................... 3 PACKAGE ............................... 3 DISPOSAL ............................... 3 ILLUSTRATED PARTS LIST (1) ......................4 PARTS (1) ............................... 5 ILLUSTRATED PARTS LIST (2) ......................6 Parts (2) ..............................7 ASSEMBLY ............................. 8 TRAINING INSTRUCTIONS ......................... 14 EXERCISE ............................. 15 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........

  • Page 3: Safety Insructions

    SAFETY INSRUCTIONS IMPORTANT! • This device is made for home use and the weight of the user should not exceed 120 kg. • Use this product as intended. Improper use of the device can lead to injury. The manufacturer is not responsible for any damage to health or property resulting from improper use of the device.

  • Page 4: Illustrated Parts List (1)

    ILLUSTRATED PARTS LIST (1)
  • Page 5 PARTS (1) NAME Main frame Rear base Main vertical frame Guide rod Top cross beam Seat support Press bar Right chest support Left chest support Front base Leg extension Foam tube Iron bushing Resist bar Lower handrail Pull bar Handle bar Selector shaft Upright pulley block Parallel pulley block...

  • Page 6: Illustrated Parts List (2)

    ILLUSTRATED PARTS LIST (2)

  • Page 7: Parts (2)

    Parts (2) NAME Backrest cushion Headrest cushion Seat cushion Big foam roller Foam roller Cable with no ball Long cable with one ball Short cable with one ball Rubber donut Hook Chain Bolt m12×165 + washers + lock nuts Bolt m6*16 + washer Bolt m8*16 + bend washer Bolt m8*35 + bend washer Bolt m8×40 + two washers + lock nut...

  • Page 8: Assembly

    ASSEMBLY STEP 1 1． Attach rear base (B) to main frame (A) with four bolts M8*16 + bend washers (15). 2． Attach seat support (F) to front base (J) with two bolts M10*60 + washers + lock nuts (22). 3． Attach seat support (F) and reinforcement plate (V) to main frame (A) with two bolts M10*80 + bend washers + lock nuts (27).
  • Page 9 STEP 2 1． Attach main vertical frame (C) and reinforcement plate (V) to main frame (A) with two bolts M10*80 + bend washers + lock nut (27). 2． Attach top cross beam (E) and reinforcement plate (V) to main frame (C) with two bolts M10*80 + bend washers + lock nuts (27).
  • Page 10 STEP 3 1． Attach press bar (G) to top cross beam (E) with bolt M12*165 + washers + lock nuts (13). 2． Attach right and left chest support (H&I) to press bar (G) with M12 lock nut + big washer (30). 3．...
  • Page 11 STEP 4 1. Attach seat cushion (3) to main frame (A) with four bolts M6*16 + washers (14). 2. Attach backrest cushion (1) and headrest cushion (2) to main vertical frame (C) with four bolts M8*80 + bend washers (18). 3.

  • Page 12: S Upright Pulley Block

    STEP 5 CABLE ASSEMBLY 1. Assembly the cable with no ball (6) Connect one end of the cable to one of chest support with iron bushing (M) and M8 lock nut (29). Then thread the other end of the cable over pulley U1, down and round pulley S1 on upright pulley block (S), up and over pulley U2, secure cable to chest support with iron bushing (M) and M8 lock nut (29).
  • Page 13 Run the end with no ball of the cable (8) through the pulley E1 on top cross beam (E), round the pulley E2 on top cross beam (E), down and under pulley T1 on parallel pulley block (T), up and round pulley E3 on cross beam (E).

  • Page 14: Training Instructions

    TRAINING INSTRUCTIONS IMPORTANT: Before beginning your training program, consult your doctor to ensure that are healthy enough to use this training device. Base your program on the result of this medical examination. All following training instructions are suitable for healthy people only. This training device is a versatile multi-functional home training unit for optimum fitness training with special emphasis on muscle- power.
  • Page 15 EXERCISE CHEST PRESS LEG EXTENSION Mid-point Start/End Start/End Mid-point SEATED MID ROW LEG CURL Start/End Start/End Mid-point Mid-point LOWER HANDRAIL UPRIGHT ROW Start/End Mid-point Mid-point Start/End TRICEPS PUSH DOWN ARM CURL Start/End Mid-point Start/End Mid-point OUTER THIGH INNER THIGH Mid-point Start/End Start/End Mid-point...
  • Page 16 Start/End Mid-point Mid-point Start/End SIDE BEND Start/End Mid-point TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
  • Page 17 Borivojova 35/878, 130 00 Praha 3, Czech Republic Headquarters: Delnicka 957, 749 01 Vitkov, Czech Republic Warranty & Service Centre: Cermenska 486, 749 01 Vitkov, Czech Republic CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz...
  • Page 18 INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk Date of Sale: Stamp and Signature of Seller:...
