Summary of Contents for CYP CSC-6013

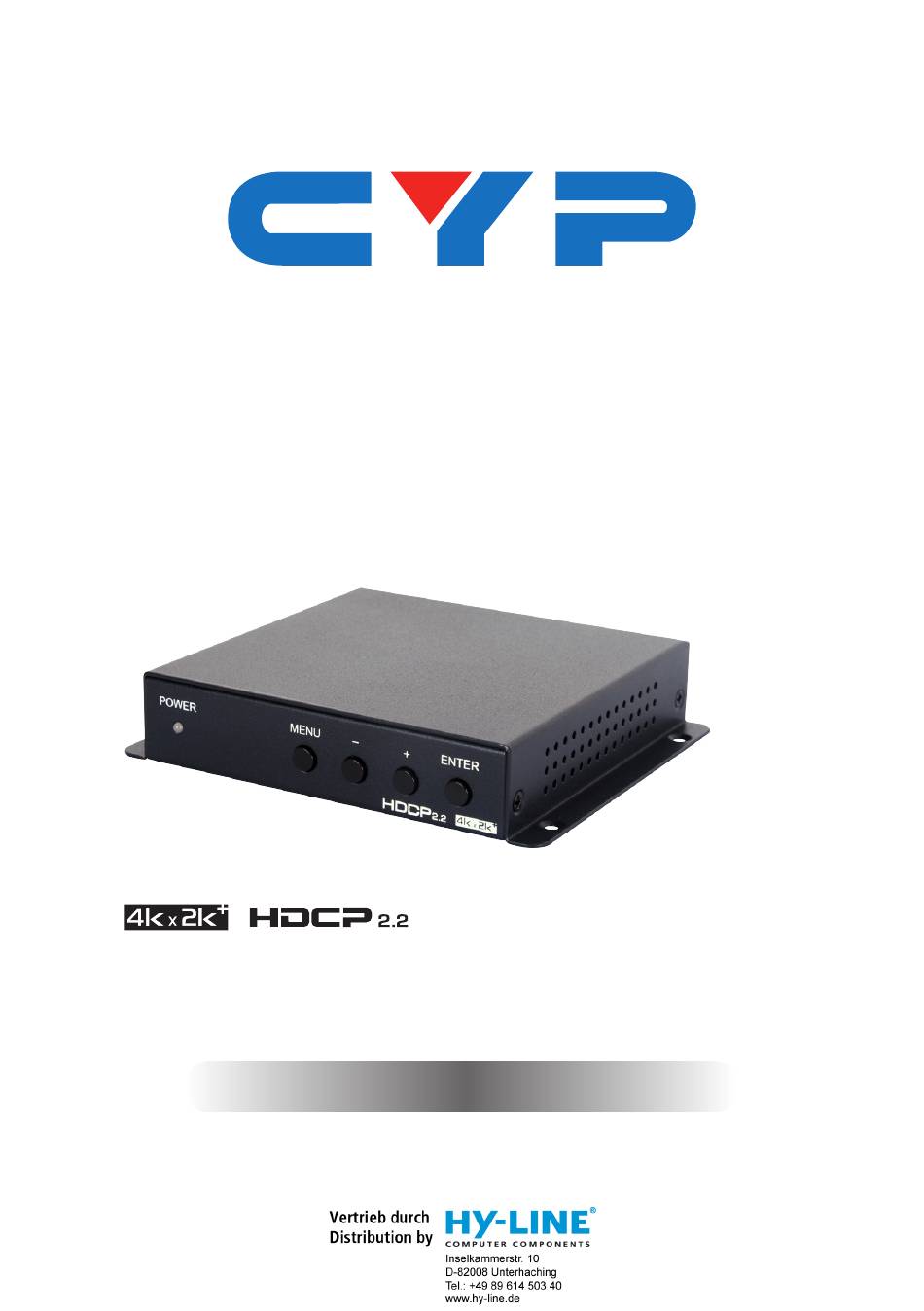

- Page 1 CSC-6013 4K UHD+ HDMI to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 6.4 EDID Management ........7 7. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI to HDMI Scaler is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HDMI resolutions. Input sources are supported at resolutions up to and including 4K@60Hz (4:4:4, 8-bit). -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. 5. -
Page 8: Operation Controls And Functions

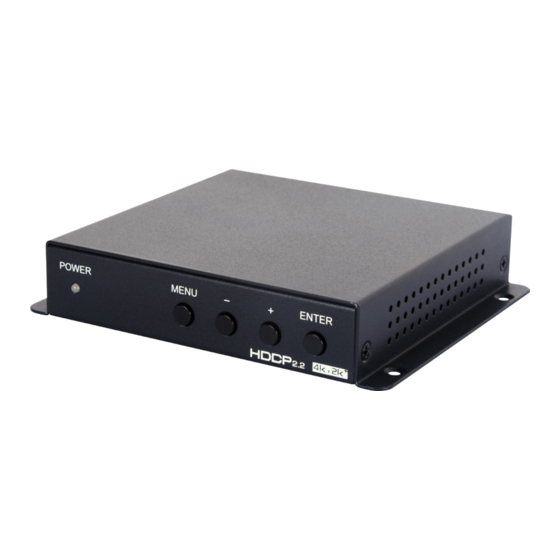

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER MENU – ENTER POWER LED: This LED will illuminate when the unit is receiving power. When a valid HDMI source is detected the LED will be green, if there is no valid HDMI source, the LED will be red. MENU: Press to enter the OSD menu, or to back out from menu items. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO DC 5V HDMI OUT HDMI IN SERVICE HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. Note: If no valid HDMI input source is detected the unit will output blank video using the selected free run color. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 10: Osd Menu
6.3 OSD Menu layer layer layer 800x600@60Hz 1024x768@60Hz 1280x768@60Hz 1360x768@60Hz 1280x800@60Hz 1440x900@60Hz 1280x1024@60Hz 1400x1050@60Hz 1680x1050@60Hz 1600x1200@60Hz 1920x1200@60Hz(RB) 720x480P@60Hz 720x576P@50Hz Output 1280x720P@50Hz Yes/No Resolution 1280x720P@60Hz 1920x1080i@50Hz 1920x1080P@50Hz 1920x1080i@60Hz 1920x1080P@60Hz 3840x2160@24Hz 3840x2160@25Hz 3840x2160@30Hz 3840x2160@50Hz(Y420) 3840x2160@60Hz(Y420) 3840x2160@50Hz 3840x2160@60Hz Bypass Auto/HDMI/DVI Format Auto/YUV444/YUV422/ Output Col- YUV420 (YUV420 is only Color Space or Format... - Page 11 0~100 (50) Brightness 0~100 (50) Contrast 0~100 (50) Saturation Output Im- age Adjust 0~100 (50) Full/16:9/16:10/4:3/Keep Aspect Ratio Default Unmute/Mute HDMI Audio Output Au- dio Control Unmute/Mute Ext Audio 5Sec/10Sec/15Sec/30Sec/ Notify Always/ Never HDMI Infor- Input Information mation Output Information ...
- Page 12 5 Sec/10 Sec/15 Sec/30 Auto Off Sec/60 Sec/ Never 0~100% (2%) Horizontal 0~100% (3%) Vertical 0~7 (3) Transparency OSD Setting Panel Size Normal/Large/Auto Panel Color Red/Green/Blue/Gray White/Yellow/Cyan/ Font Color Magenta/Blue/ Black Free Run Color Red/Green/Blue/Black Default System Setting FW Version ...
-
Page 13: Edid Management
6.4 EDID Management Within the EDID Control section of the OSD menu are 2 menu items, Mode & User, along with a details section displaying the content of the currently selected EDID. Mode: The current EDID may be changed by selecting and changing the Mode option. -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Power Supply AUDIO DC 5V HDMI OUT HDMI IN SERVICE USB Thumb Drive DVD or Blu-ray Player Amplifier UHD TV... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 18Gbps (600Mhz) Input Ports 1 x HDMI, 1 x USB (Service) Output Ports 1 x HDMI, 1 x 3.5mm mini-jack (stereo audio) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8KV (Air Discharge), ±4KV (Contact Discharge) Dimensions... -
Page 16: Video Supports Specification
8.2 Video Supports Specification Output Output Supported Timings (Hz) Input (bypass) (scaled) 640x480@60/72/75/85 720x480@60 720x576p@50 800x600@56/60/72/75/85 60Hz only 1024x768@60/75/85 60Hz only 1280x720@50/60 1280x720p@60 1280x768@60/70/75/85 60Hz only 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50/60 1920x1080p@24/25/30/50/60 50/60Hz only 1920x1200@60(RB) 3840x2160@24/25/30/50/60 (4:4:4) 3840x2160@50/60 (4:2:0) 4096x2160@24/25/30/50/60 (4:4:4) 4096x2160@50/60 (4:2:0) -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface LPCM Linear Pulse-Code Modulation SVGA Super Video Graphics Array (800x600@60Hz) Ultra-High-Definition... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
