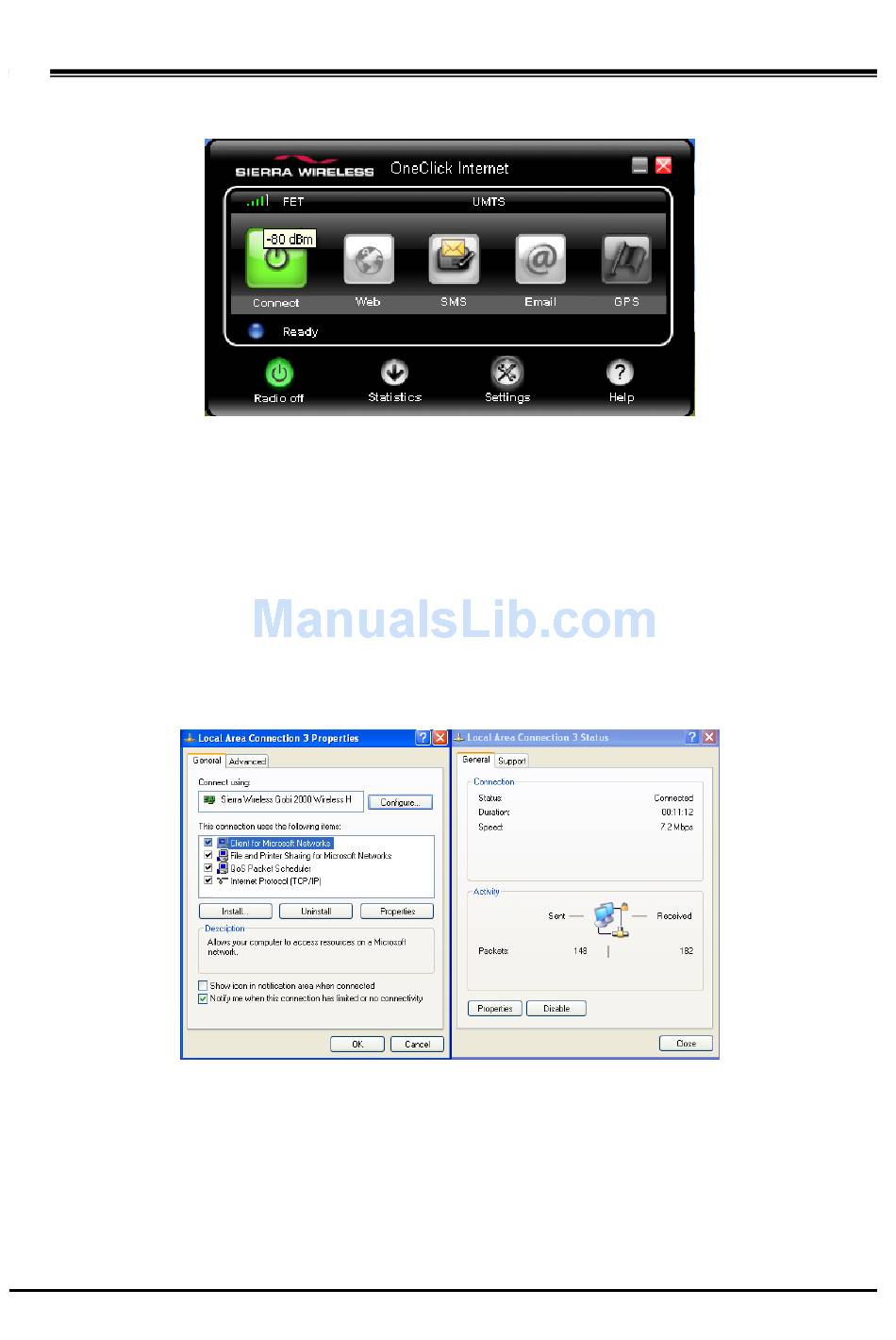

Figure 2: Signal of WWAN Module for UTMS Channels.
7. TEST
Out door power-up the EUT until it has completed its boot up process. Place the EUT in building and check the
UMTS/HSDPA and GPS signal intensity. Get GPS longitude and latitude; connect to Internet through
UMTS/HSDPA channel. Check Google Maps and GPSview satellite set and fix time.
.
Figure 3: Link Speed of WWAN Module for UMTS/HSDPA Channels.
57
