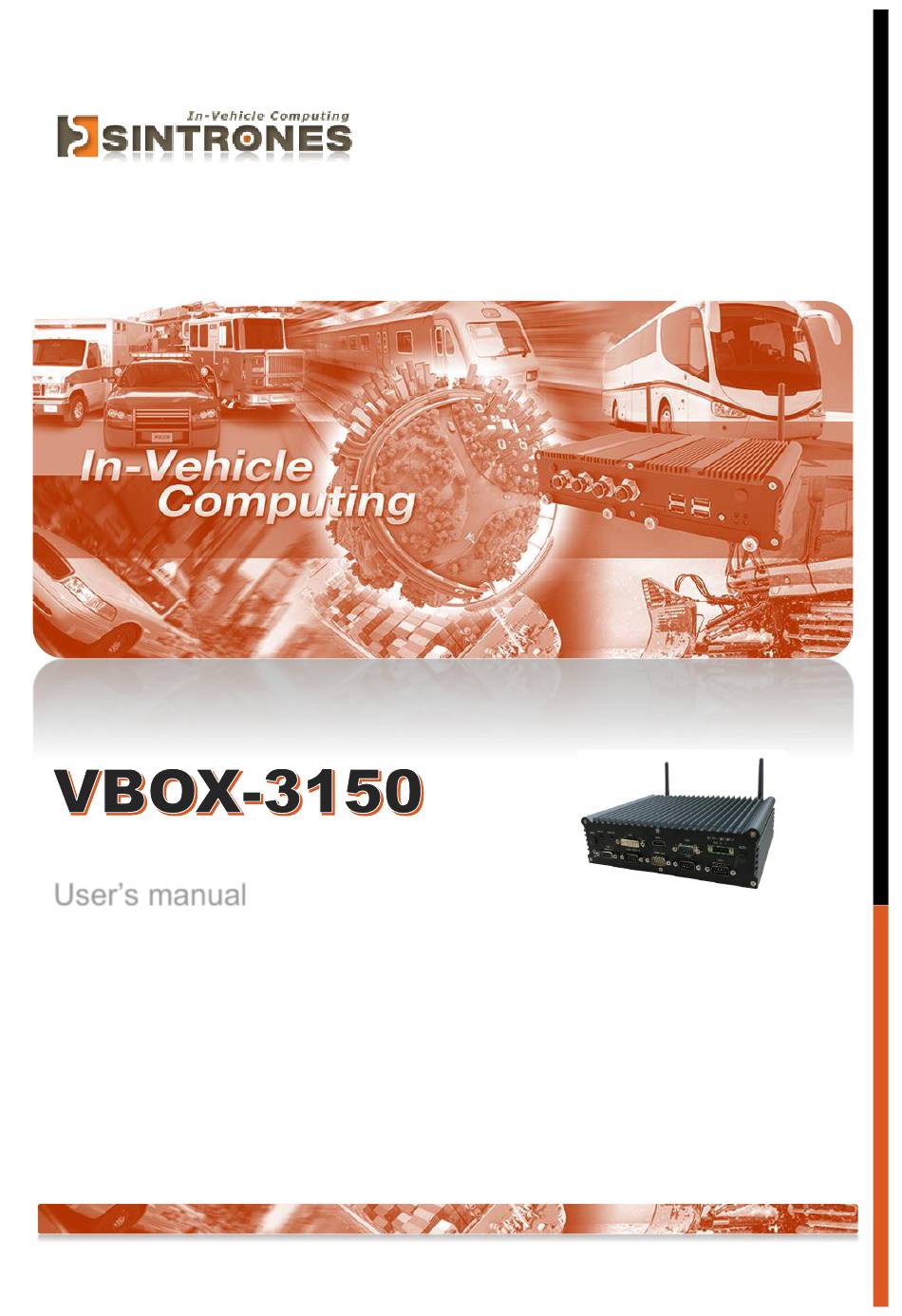

  • Page 1 IN-VEHICLE COMPUTING User’s manual...
  • Page 2 Disclaimer SINTRONES® Technology Corp. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product. SINTRONES® Technology Corp. makes no representation or warranty regarding the content of this manual.
  • Page 3 VBOX-3150 Manual Safety Information Read the following precautions before setting up a SINTRONES Product. Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 4 VBOX-3150 Manual CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or its equivalent as recommended by SINTRONES® Technology Corp. Dispose used battery according to the manufacturer's instructions. Technical Support Please do not hesitate to call or e-mail our customer service when you still cannot fix the problems.

  • Page 5: Table Of Contents

    VBOX-3150 Manual Content Introduction ..........................6  Specification..........................6 Illustration (MB/System) ......................8  Front I/O ........................... 9  Rear I/O ............................ 9  System ............................ 10 Architecture ..........................11 Principal component Specification ....................11  CPU ............................11 Internal Connector ........................12 ...
  • Page 6 VBOX-3150 Manual  Installing SSD card........................26  Installing Memory ........................28  Installing MINI PCIe Expansion Card (MINICARD1) ..............29  Installing MINI PCIe Expansion Card (MINICARD2, 3, 4) ............30  Installing Internal Antenna Cable ....................31 ...

  • Page 7: Introduction

    VBOX-3150 Manual INTRODUCTION Specification System Intel Gen4 Core i3-4010U 1.7GHz Intel Gen4 Dual Core 2980U 1.6 GHz (Optional i5, i7) Memory 1 x DDR3L-1600 SO-DIMM up to 8GB LAN Chipset 2 x Intel i210-AT Gigabit Ethernet with PoE 802.3af (15.4W per port) 1 x Intel i-218LM GbE support vPro (iAMT9.5 w/ i5, i7 only)
  • Page 8 VBOX-3150 Manual Qualification Certifications CE, FCC Class A, E-13 Serial Port 4 x RS-232 (2 with RS-232/422/485) USB Port 2 x USB 3.0 and 1 x USB 2.0 Ports 3 x RJ45 Ports for GbE (2 x PoE 802.3af 15.4W per port, 1 x support...

  • Page 9: Illustration (Mb/System)

    VBOX-3150 Manual ILLUSTRATION (MB/SYSTEM) Main board...

  • Page 10: Front I/O

    VBOX-3150 Manual Front I/O Rear I/O...

  • Page 11: System

    VBOX-3150 Manual System...

  • Page 12: Architecture

    VBOX-3150 Manual ARCHITECTURE PRINCIPAL COMPONENT SPECIFICATION Chip Description Intel 1. Power consumption: Core Processor Thermal Symbol Frequency/ Unit Cache Tj max( C Number Design Power Celeron- 1.6GHz 2980U i3-4010U 1.7GHz i5-4300U 1.9GHz i7- 4650U 1.7GHz...

  • Page 13: Internal Connector

    VBOX-3150 Manual INTERNAL CONNECTOR VGA Connector Connector location: VGA1 Connector size: 2 X 8 = 16 Pin Connector type: JST-2.0mm-M-180 LINE Connector Connector location: LINE1 Connector size: 1 X 5 = 5 Pin Connector type: JST-2.0mm-M-180...

  • Page 14: Lout2 Connector

    VBOX-3150 Manual LOUT2 connector Connector location: LOUT2 Connector size: 1 X 5 = 5 Pin Connector type: JST-2.0mm-M-180 GPIO Connector Connector location: GPIO1 Connector size: 2 X 5 = 10 Pin Connector type: JST-2.0mm-M-180...

  • Page 15: Com Port Connector

    VBOX-3150 Manual COM Port Connector Connector location: COM2 Connector size: 2 X 5 = 10 Pin Connector type: JST-2.0mm-M-180 Connector location: COM3 Connector size: 2 X 5 = 10 Pin Connector type: JST-2.0mm-M-180...

  • Page 16: Usb Connector

    VBOX-3150 Manual Connector location: COM4 Connector size: 2 X 5 = 10 Pin Connector type: JST-2.0mm-M-180 USB Connector Connector location: USB1 Connector size: 2 X 4= 8Pin Connector type: JST-2.0mm-M-180...

  • Page 17: Sata Connector

    VBOX-3150 Manual SATA Connector Connector location: SATA1 Connector size: 1 X 7 7Pin Connector type: SATA 1.27mm-M-180D Connector location: SATA2 Connector size: 1 X 7 7Pin Connector type: SATA 1.27mm-M-180D...

  • Page 18: Ups Connector

    VBOX-3150 Manual UPS Connector Connector location: UPS1 Connector size: 1 X 5 7Pin Connector type: WAFER 2.54mm-M-180...

  • Page 19: Mini Pci-E Connector

    VBOX-3150 Manual Mini PCI-E connector Connector location: MINICARD1 Connector size: 2 X 26 = 52 Pin Connector type: MINI PCI-E CON 9.2mmH Connector location: MINICARD2 Connector size: 2 X 26 = 52 Pin Connector type: MINI PCI-E CON 9.2mmH...
  • Page 20 VBOX-3150 Manual Connector location: MINICARD3 Connector size: 2 X 26 = 52 Pin Connector type: MINI PCI-E CON 9.2mmH Connector location: MINICARD4 Connector size: 2 X 26 = 52 Pin Connector type: MINI PCI-E CON 9.2mmH...

  • Page 21: Sata Power Connector

    VBOX-3150 Manual SATA Power Connector Connector location: SPWR1/ SPWR2 Connector size: 1 X 4 = 4 Pin Connector type: WAFER 2.54mm-M-180...

  • Page 22: External Connector Specification

    VBOX-3150 Manual EXTERNAL CONNECTOR SPECIFICATION Power Input connector Connector location: PWRIN1 Connector size: 1 X 3 = 3 Pin Connector type: Terminal block 3PIN pitch :5.08mm COM connector Connector location: COM1 Connector size: 9 Pin Connector type: DSUB...

  • Page 23: Dvi-I Connector

    VBOX-3150 Manual DVI-I connector Connector location: DVI-I1 Connector size: 29 Pin Connector type: DVI-I...

  • Page 24: System Installation

    VBOX-3150 Manual SYSTEM INSTALLATION System Introduction...

  • Page 25: Opening Chassis

    VBOX-3150 Manual Opening Chassis Remove the six screws on the Back Cover as figure 1.
  • Page 26 VBOX-3150 Manual Front Panel/Rear Panel figure Remove the screws on the Front Panel (six screws) and Rear Panel (six screws) and open the Top Cover as figure 2.

  • Page 27: Installing Ssd Card

    VBOX-3150 Manual Installing SSD card Please have screws (x4), bottom plate, SSD card and connect cable ready. Connect SSD card and cable.
  • Page 28 VBOX-3150 Manual Secure SSD card onto bottom plate with screws (x4) at the side of standoff.

  • Page 29: Installing Memory

    VBOX-3150 Manual Installing Memory Hold the Memory with its notch aligned with the Memory socket of the board and insert it at a 30-degree angle into the socket as figure 1. Press down on the Memory so that the tabs of the socket lock on both sides of the...

  • Page 30: Installing Mini Pcie Expansion Card (Minicard1)

    VBOX-3150 Manual Installing MINI PCIe Expansion Card (MINICARD1) Hold the Module with its notch aligned with the socket of the board and insert it at a 30-degree angle into the socket as shown in the picture. Secure the card with screw(s) as figure 2 and finish as figure 3.

  • Page 31: Installing Mini Pcie Expansion Card (Minicard2, 3, 4)

    VBOX-3150 Manual Installing MINI PCIe Expansion Card (MINICARD2, 3, 4) Hold the Module with its notch aligned with the socket of the board and insert it at a 30-degree angle into the socket as shown in the picture. Secure the card with screw(s) as figure 2 and finish as figure 3.

  • Page 32: Installing Internal Antenna Cable

    VBOX-3150 Manual Installing Internal Antenna Cable Take the SMA Connector (A) and plug into IO Panel (D). Put the Washer(B) into the SMA Connector (A), then put the O-ring (C) to SMA Connector (A) and tighten as shown in the picture.

  • Page 33: Installing Sim Card

    VBOX-3150 Manual Installing SIM Card Use thin stick to push the button, then take the holder and put your SIM Card into the it. Take the SIM card holder and Insert it into the socket Attention: Please cut the main power when you insert the SIM, otherwise the...

  • Page 34: System Resource

    VBOX-3150 Manual SYSTEM RESOURCE Ignition Power Management Quick Guide Startup/shutdown conditions from the IGNITION signal:  IGNITION startup signal must be valid during 3 sec. (anti noise protection).  IGNITION shutdown – IGNITION signal must be inactive during 3 Sec, then PIC...
  • Page 35  Ignition On/Off status detectable by SW  If the ignition is off and the system is still on after 3 Sec, VBOX-3150 will shut down automatically.  If the ignition is turned on again and the power-off delay is in progress, VBOX- 3150 will cancel the delay function and will continue to operate normally.
  • Page 36 VBOX-3150 Manual GPIO & Delay Time Setting GPIO and Ignition Control Register The General Purpose I/O is an interface available on some devices. These can read digital signals from other parts of a circuit, or output to control other devices. At GPIO control register, the GPI is use to receive data, the GPO is set data to send.
  • Page 37 VBOX-3150 Manual GPIO5 Output Enable Register – Index A0h Name R/W Defaul Description GPIO57_OE 0 : GPIO57 is input 1 : GPIO57 is output GPIO56_OE 0 : GPIO56 is input 1 : GPIO56 is output GPIO55_OE 0 : GPIO55 is input...
  • Page 38 VBOX-3150 Manual GPIO5 Pin Status Register – Index A2h Name R/W Defaul Description GPIO57_ST GPIO57 pin status. GPIO56_ST GPIO56 pin status. GPIO55_ST GPIO55 pin status. GPIO54_ST GPIO54 pin status. GPIO53_ST GPIO53 pin status. GPIO52_ST GPIO52 pin status. GPIO51_ST GPIO51 pin status.
  • Page 39 VBOX-3150 Manual I/O port: I/O port: 0xA35 (base address) for Control Register (Read 0xF2h bit 3) 0xA36 (base address) for Control Data Value Ignition Status 0 = Ignition off 1 = Ignition on Debug Command Line - O A35 F2...
