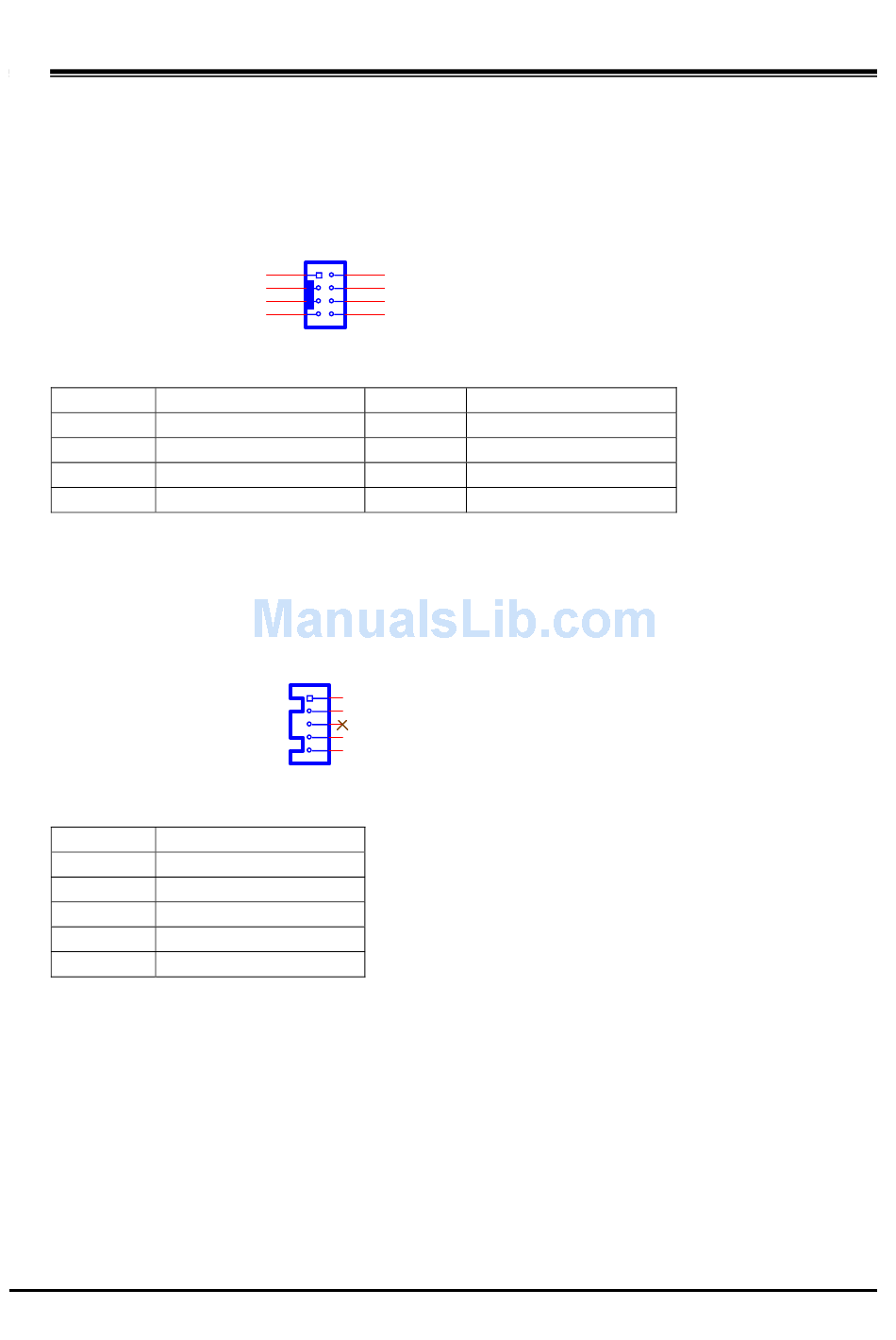

3.11 USB JST connector:
A. Connector size: 2 X 5 = 10 Pin
B. Connector location: USB6
C. Connector pin definition
Pin
1 5VSB_USB
3 USB6_N
5 USB6_P
7 GND

3.12 UPS JST connector:

A. Connector size: 1 X 5 = 5 Pin
B. Connector location: UPS1
C. Connector pin definition
Pin
1 +12VSB_UPS
2 +12VSB_UPS
3 NC
4 GND
5 GND
USB6
1 2
3 4
5 6
7 8
JST-2.0mm-M-180
Signal Pin
UPS1
1
2
3
4
5
JST-2.0mm-M-180
Signal
Signal
2 5VSB_USB
4 USB7_N
6 USB7_P
8 GND
25
