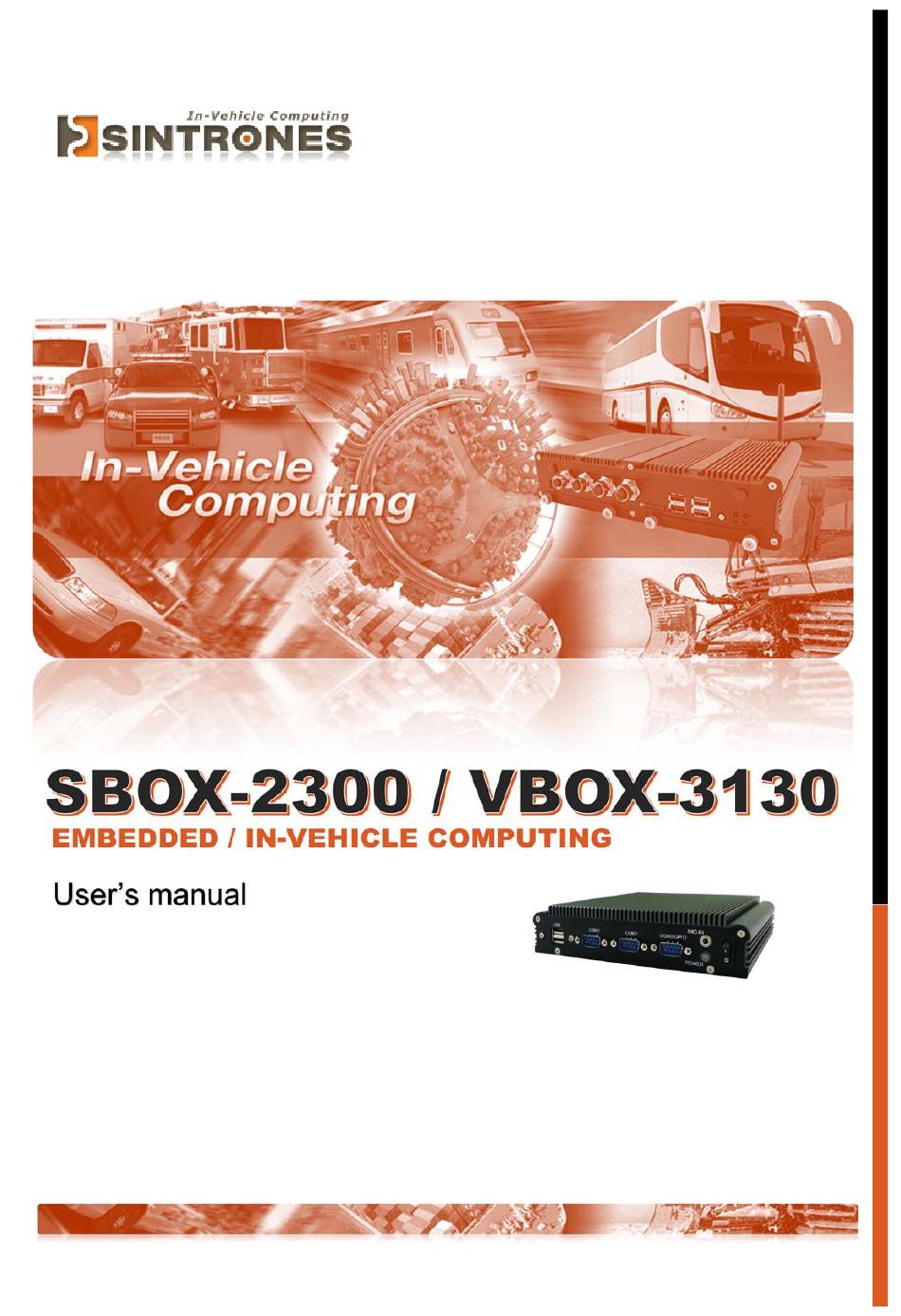

  • Page 1     EMBEDDED / IN-VEHICLE COMPUTING User’s manual...
  • Page 2 Disclaimer  SINTRONES® Technology Corp. shall not be liable for any incidental or consequential  damages resulting from the performance or use of this product.  SINTRONES®  Technology  Corp.  makes  no  representation  or  warranty  regarding  the  content  of  this  manual.  Information  in  this  manual  had  been  carefully  checked  for  accuracy;  however,  no  guarantee  is  given  as  to  the  correctness  of  the  contents.  For ...
  • Page 3 SBOX-2300 / VBOX-3130 Manual Safety Information   Read the following precautions before setting up a SINTRONES Product.  Electrical safety   To prevent electrical shock hazard, disconnect the power cable from the electrical  outlet before relocating the system.   When adding or removing devices to or from the system, ensure that the power  cables for the devices are unplugged before the signal cables are connected. If  possible, disconnect all power cables from the existing system before you add a  device.   Before connecting or removing signal cables from the motherboard, ensure that  all power cables are unplugged.   Seek  professional  assistance  before  using  an  adapter  or  extension  cord.  These  devices could interrupt the grounding circuit.   Make sure that your power supply is set to the correct voltage in your area. If you  are not sure about the voltage of the electrical outlet you are using, contact your  local power company.   If the power supply is broken, do not try to fix it by yourself. Contact a qualified  service technician or your retailer.  Operation safety ...
  • Page 4 SBOX-2300 / VBOX-3130 Manual CAUTION  Incorrectly  replacing  the  battery  may  damage  this  computer.  Replace  only  with  the  same  or  its  equivalent  as  recommended  by  SINTRONES®  Technology  Corp.  Dispose  used battery according to the manufacturer's instructions.    Technical Support  Please do not hesitate to call or e‐mail our customer service when you still cannot fix  the problems.  Tel : +886‐2‐82280101  Fax : +886‐2‐82280100  E‐mail : sales@sintrones.com  Website : www.sintrones.com     ...

  • Page 5: Table Of Contents

    SBOX-2300 / VBOX-3130 Manual Content  Introduction..........................6  Specification ..........................6 Illustration (MB/System) ......................8  Mainboard ........................... 8  Power Board (VBOX-3130 only) ....................9  System ............................10 Architecture ..........................11 Principal component Specification ....................11  CPU ............................11 Internal Connector ........................
  • Page 6 SBOX-2300 / VBOX-3130 Manual  AUDIO connector ........................23 System Introduction ........................24  I/O Panel for SBOX-2300 ......................24  I/O Panel for VBOX-3130 ......................25  Opening Chassis ........................26  Installing Memory ........................28  Installing MINI PCIe Expansion Card (MINICARD1) ..............29 ...

  • Page 7: Introduction

    SBOX-2300 / VBOX-3130 Manual INTRODUCTION Specification System  CPU  Intel N3710 Quad Core CPU up to 2.56HGz Intel N3160 Quad Core CPU up to 2.24HGz  Intel N3060 Dual Core CPU up to 2.48HGz  Memory  1 x DDR3L‐1600 SO‐DIMM up to 8GB Graphics  Intel HD Graphics ATA  2 x Serial ATA ports with 6GB/s HDD Transfer Rate  LAN Chipset  2 x Intel i210‐AT Gigabit Ethernet Watchdog  1 ~ 255 Level Reset I/O  Serial Port  2 x RS‐232 Ports (2 x RS‐232/422/485), Optional Max. 4 x RS‐232 USB Port  2 x USB 2.0 and 2 x USB 3.0 Ports LAN  2 x RJ45 ports for GbE Video Port  HDMI/ DVI/ VGA (Though DVI‐I), Max. 3 Display Outputs  DIO Port  4 In and 4 Out GPIO Ports (5V Level) Audio  Line‐out / Mic‐in Expansion Bus  2 x Mini‐card Slots Storage  Type  1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD  1 x SATA DOM ...
  • Page 8 SBOX-2300 / VBOX-3130 Manual Environment  Operating Temp.  ‐30 ~ 60ºC (SSD), ambient w/ air Storage Temp.  ‐40 ~ 85ºC  Relative Humidity  10 ~ 95% @ 40ºC (non‐condensing) Vibration (random)  DC 12V Input Mechanical  Construction  Aluminum Alloy Mounting  Wall‐mount, VESA‐mount, Din Rail Mounting Kit  Weight  1200g (Barebone) Dimensions  182 x 167.6 x 40 mm      ...

  • Page 9: Illustration (Mb/System)

    SBOX-2300 / VBOX-3130 Manual ILLUSTRATION (MB/SYSTEM) Mainboard...

  • Page 10: Power Board (Vbox-3130 Only)

    SBOX-2300 / VBOX-3130 Manual Power Board (VBOX-3130 only)

  • Page 11: System

    SBOX-2300 / VBOX-3130 Manual System  ...

  • Page 12: Architecture

    SBOX-2300 / VBOX-3130 Manual ARCHITECTURE PRINCIPAL COMPONENT SPECIFICATION Chip  Description  Intel  1. Power consumption:   Core  Processor  Thermal  Symbol  Frequency/  Unit  CPU Core  Cache  Number  Design Power  GHz  SOC  N3710  Up to  6  W  4 Core  2M  2.56GHz  N3160  Up to  6  W  4 Core  2M  2.24GHz  N3060 ...

  • Page 13: Internal Connector

    SBOX-2300 / VBOX-3130 Manual INTERNAL CONNECTOR VGA Connector Connector location: VGA1  Connector size: 2 X 8 = 16 Pin  Connector type: JST‐2.0mm‐M‐180  USB Connector Connector location: USB2  Connector size: 2 X 4= 8Pin  Connector type: JST‐2.0mm‐M‐180   ...

  • Page 14: Gpio Connector

    SBOX-2300 / VBOX-3130 Manual Connector location: USB3  Connector size: 2 X 4= 8Pin  Connector type: JST‐2.0mm‐M‐180      GPIO Connector Connector location: GPIO1  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180 ...

  • Page 15: Uart And Gpio Connector

    SBOX-2300 / VBOX-3130 Manual UART and GPIO Connector Connector location: UART1  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180  LED Connector Connector location: LED1  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180 ...

  • Page 16: Com Port Connector

    SBOX-2300 / VBOX-3130 Manual COM Port Connector Connector location: COM1  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180    Connector location: COM2  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180   ...
  • Page 17 SBOX-2300 / VBOX-3130 Manual Connector location: COM3  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180  Connector location: COM4  Connector size: 2 X 5 = 10 Pin  Connector type: JST‐2.0mm‐M‐180 ...

  • Page 18: Audio Connector

    SBOX-2300 / VBOX-3130 Manual AUDIO Connector Connector location: AUDIO1  Connector size: 1 X 10 = 10Pin  Connector type: JST‐2.0mm‐M‐180  SATA Connector Connector location: SATA1  Connector size: 1 X 7 = 7Pin  Connector type: SATA 1.27mm‐M‐180D ...

  • Page 19: Mini Pci-E Connector

    SBOX-2300 / VBOX-3130 Manual Connector location: SATA2  Connector size: 1 X 7 = 7Pin  Connector type: SATA 1.27mm‐M‐180D    Mini PCI-E connector Connector location: MINICARD1  Connector size: 2 X 26 = 52 Pin  Connector type: MINI PCI‐E CON 9.2mmH     ...

  • Page 20: Power Input Connector

    SBOX-2300 / VBOX-3130 Manual Connector location: MINICARD2  Connector size: 2 X 26 = 52 Pin  Connector type: MINI PCI‐E CON 9.2mmH Power Input Connector Connector location: SPWR1  Connector size: 1 X 4 = 4 Pin  Connector type: WAFER 2.54mm‐M‐180   ...

  • Page 21: Sata Power Connector

    SBOX-2300 / VBOX-3130 Manual SATA Power Connector Connector location: SPWR1  Connector size: 1 X 4 = 4 Pin  Connector type: WAFER 2.54mm‐M‐180      Connector location: SPWR2  Connector size: 1 X 3 = 3 Pin  Connector type: WAFER 2.54mm‐M‐180   ...

  • Page 22: External Connector Specification

    SBOX-2300 / VBOX-3130 Manual EXTERNAL CONNECTOR SPECIFICATION USB Connector Connector location: USB1  Connector size: 18Pin  Connector type: Type A  LAN connector Connector location: LAN1 Connector size: 16 Pin  Connector type: RJ45 + LED   ...

  • Page 23: Dvi-I Connector

    SBOX-2300 / VBOX-3130 Manual Connector location: LAN2 Connector size: 16 Pin  Connector type: RJ45 + LED      DVI-I connector Connector location: DVI-I1 Connector size: 30 Pin  Connector type: DVI‐I       ...

  • Page 24: Hdmi Connector

    SBOX-2300 / VBOX-3130 Manual HDMI connector Connector location: HDMI1 Connector size: 19 Pin  Connector type: HDMI    AUDIO connector Connector location: LOUT1 Connector size: 6Pin  Connector type: PHONE JACK       ...

  • Page 25: System Introduction

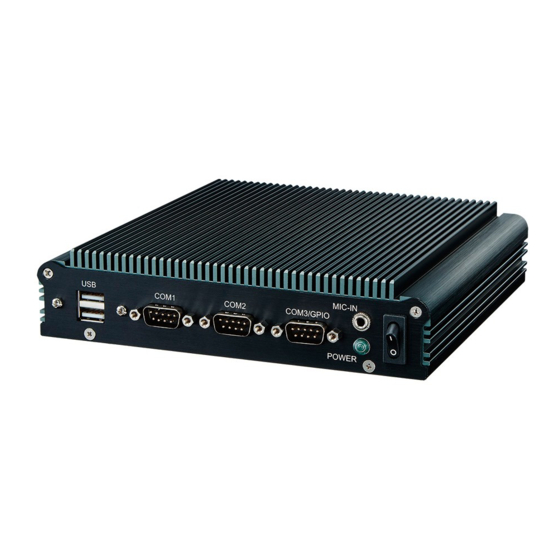

    SBOX-2300 / VBOX-3130 Manual SYSTEM INTRODUCTION I/O Panel for SBOX-2300...

  • Page 26: I/O Panel For Vbox-3130

    SBOX-2300 / VBOX-3130 Manual I/O Panel for VBOX-3130...

  • Page 27: Opening Chassis

    SBOX-2300 / VBOX-3130 Manual Opening Chassis Remove the four screws on the Back Cover as figure 1.
  • Page 28 SBOX-2300 / VBOX-3130 Manual Front Panel/Rear Panel figure Remove the screws on the Front Panel (four screws) and Rear Panel (four screws) and open the Top Cover as figure 2.

  • Page 29: Installing Memory

    SBOX-2300 / VBOX-3130 Manual Installing Memory Hold the Memory with its notch aligned with the Memory socket of the board and  insert it at a 30‐degree angle into the socket as figure 1.  Press down on the Memory so that the tabs of the socket lock on both sides of the  module as figure 2.           ...

  • Page 30: Installing Mini Pcie Expansion Card (Minicard1)

    SBOX-2300 / VBOX-3130 Manual   Installing MINI PCIe Expansion Card (MINICARD1) Hold the Module with its notch aligned with the socket of the board and insert it at a  30‐degree angle into the socket as shown in the picture.        Secure the card with screw(s) as figure 2 and finish as figure 3. ...

  • Page 31: Installing Mini Pcie Expansion Card (Minicard2)

    SBOX-2300 / VBOX-3130 Manual      Installing MINI PCIe Expansion Card (MINICARD2) Hold the Module with its notch aligned with the socket of the board and insert it at a  30‐degree angle into the socket as shown in the picture.      Secure the card with screw(s) as figure 2 and finish as figure 3.   ...

  • Page 32: Installing Internal Antenna Cable

    SBOX-2300 / VBOX-3130 Manual Installing Internal Antenna Cable   Take the SMA Connector (A) and plug into IO Panel (D). Put the Washer(B) into the  SMA Connector (A), then put the O‐ring (C) to SMA Connector (A) and tighten as  shown in the picture.        Take the Ipex Connector (A) and press on the Wi‐Fi module/3G module/ GPS module  (GPS, only support passive Antenna) ...

  • Page 33: System Resource

    SBOX-2300 / VBOX-3130 Manual SYSTEM RESOURCE GPIO & Delay Time Setting (Delay Time only for VBOX-3130) GPIO and Ignition Control Register The General Purpose I/O is an interface available on some devices. These can read  digital signals from other parts of a circuit, or output to control other devices. At GPIO  control register, the GPI is use to receive data, the GPO is set data to send.  I/O port: 0xA30 (base address) for Control Register (Read 0xA2h / Write 0xA1h)               0xA31 (base address) for Control Data Value  Debug Command Line  - O A30 A1  - O A31 0F  // Set Bit 4‐7 to Low  0 = DO is low 0 = DI is low *...
  • Page 34 SBOX-2300 / VBOX-3130 Manual GPIO5 Output Enable Register – Index A0h Name R/W Defaul Description GPIO57_OE 0 : GPIO57 is input 1 : GPIO57 is output GPIO56_OE 0 : GPIO56 is input 1 : GPIO56 is output GPIO55_OE 0 : GPIO55 is input...
  • Page 35 SBOX-2300 / VBOX-3130 Manual GPIO5 Pin Status Register – Index A2h Name R/W Defaul Description GPIO57_ST GPIO57 pin status. GPIO56_ST GPIO56 pin status. GPIO55_ST GPIO55 pin status. GPIO54_ST GPIO54 pin status. GPIO53_ST GPIO53 pin status. GPIO52_ST GPIO52 pin status. GPIO51_ST GPIO51 pin status.
  • Page 36 SBOX-2300 / VBOX-3130 Manual for Control Register (Read 0xF2h I/O port: I/O port: 0xA30 (base address) bit 3) for Control Data Value 0xA31 (base address) Ignition Status 0 = Ignition off 1 = Ignition on Debug Command Line - O A30 F2...

  • Page 37: Bios

    SBOX-2300 / VBOX-3130 Manual BIOS Enter The BIOS Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press (DEL) key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.
  • Page 38 SBOX-2300 / VBOX-3130 Manual Control Keys Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press (DEL) key to enter Setup. Move to the previous item <↑>...

  • Page 39: Main

    SBOX-2300 / VBOX-3130 Manual can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. General Help <F1> The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>.

  • Page 40: Advanced

    SBOX-2300 / VBOX-3130 Manual Advanced CPU Configuration...
  • Page 41 SBOX-2300 / VBOX-3130 Manual » Limit CPUID Maximum The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur.
  • Page 42 SBOX-2300 / VBOX-3130 Manual » COM1 RS232/422/485 Select...
  • Page 43 SBOX-2300 / VBOX-3130 Manual RS422 need to choice Termination and slect Enabled » COM2 RS232/422/485 Select...
  • Page 44 SBOX-2300 / VBOX-3130 Manual RS422 nee to choice Termination and select Enabled...
  • Page 45 SBOX-2300 / VBOX-3130 Manual » Watch Dog Function » GPIO Configuration » GPO 0/ 1/ 2/ 3/ Data These settings configure special GPIO data.
  • Page 46 SBOX-2300 / VBOX-3130 Manual Hardware Health Configuration These items display the current status of all monitored hardware devices/components such as voltages, temperatures and all fans' speeds.

  • Page 47: Chipset

    SBOX-2300 / VBOX-3130 Manual Chipset PCH‐IO Configuration System Agent (SA) Configuration...
  • Page 48 SBOX-2300 / VBOX-3130 Manual » Graphics Configuration...
  • Page 49 SBOX-2300 / VBOX-3130 Manual...

  • Page 50: Boot

    SBOX-2300 / VBOX-3130 Manual Boot » 1st/2nd/3rd Boot Device The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. » Try Other Boot Devices Setting the option to [Enabled] allows the system to try to boot from other...
  • Page 51 SBOX-2300 / VBOX-3130 Manual » Hard Disk Drives, CD/DVD Drives, USB Drives These settings allow you to set the boot sequence of the specified devices.

  • Page 52: Security

    SBOX-2300 / VBOX-3130 Manual Security » Administrator Password Administrator Password controls access to the BIOS Setup utility. These settings allow you to set or change the administrator password. » User Password User Password controls access to the system at boot. These settings allow you to set or change the user password.

  • Page 53: Exit

    SBOX-2300 / VBOX-3130 Manual Exit » Save Changes and Exit Save changes to CMOS and exit the Setup Utility. » Discard Changes and Exit Abandon all changes and exit the Setup Utility. » Discard Changes Abandon all changes and continue with the Setup Utility.

  • Page 54: Packing List

    SBOX-2300 / VBOX-3130 Manual PACKING LIST System Item Part Number Module Name 762300011000 SBOX-2300-N0 System 762300011001 SBOX-2300-N1 System 762300011002 SBOX-2300-N2 System 762300011003 SBOX-2300-4S System Accessory Picture Part Number Module Name Q’ty 548201206001 Power Adapter 12V/5A 60W Jack 1 370821201003 SBOX-2120 Mount Bracket...
