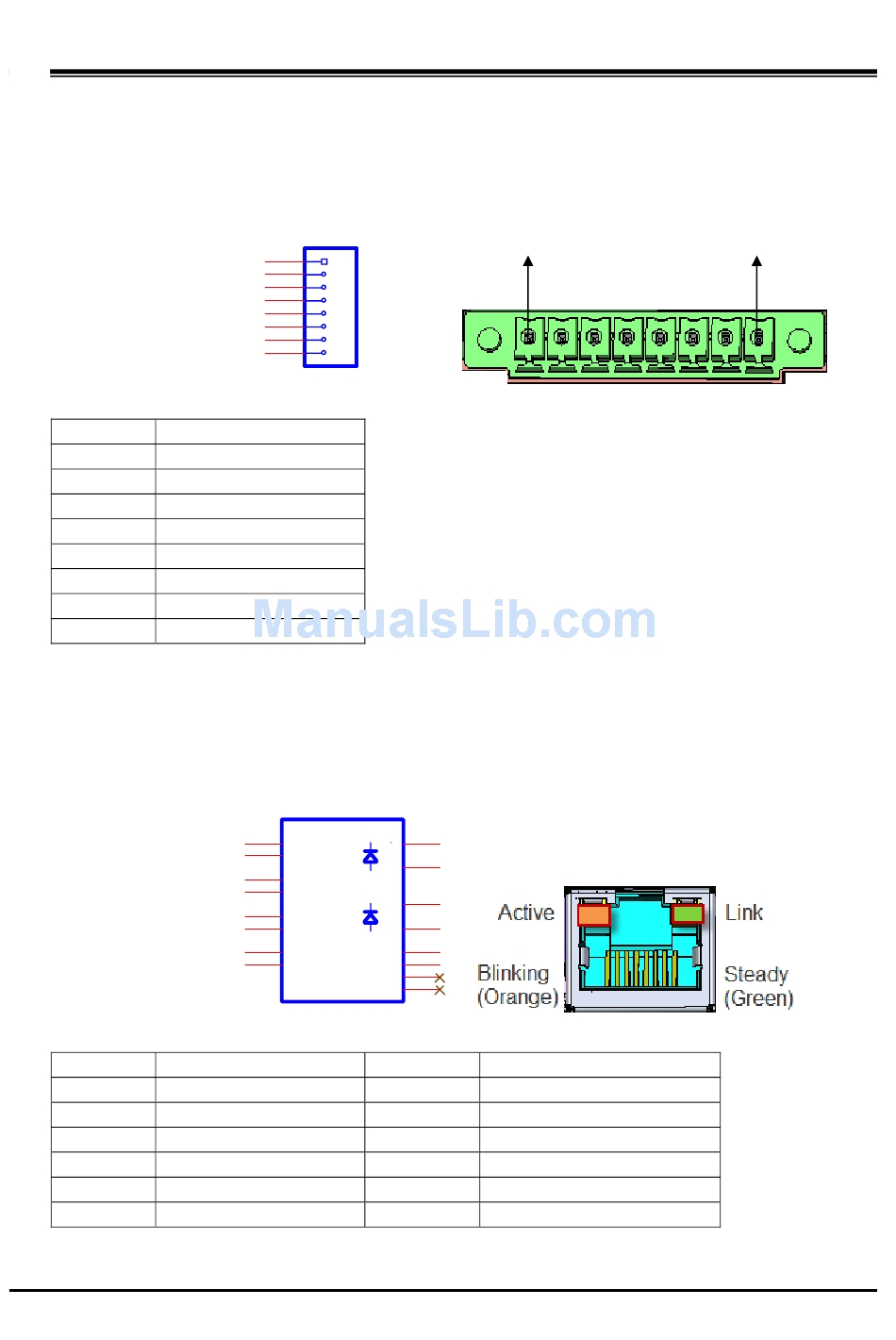

2.3 DIO connector:

A. Connector size: 1 X 8 = 8 Pin
B. Connector location: GPIO2
C. Connector pin definition
Pin
1 +12V
2 GND
3 GPO1
4 GPO2
5 GPI1
6 GPI2
7 GPI3
8 GPI4
2.4 RJ45 connector:
A. Connector size: RJ45+LED
B. Connector location: LAN2
C. Connector pin definition
Pin
1 LAN0_MDI0P
3 LAN0_MDI1P
5 LAN0_MDI2N
7 LAN0_MDI3P
9 LAN0_ACT#
11 LAN0_LINK#
GPIO2
1
2
3
4
5
6
7
8
PHOENIX 3.5mm-F-90D
Signal
LAN2
Gre e n(R)
1
TD1+ L1
2
TD1-
L2
3
TD2+
6
Orange (L)
TD2-
L3
4
TD3+
5
TD3- L4
7
TD4+ MG1
8
TD4- MG2
NH1
NH2
RJ45+LED-90
Signal
1
12
11
10
9
H1
H2
H3
H4
Pin Signal
2 LAN0_MDI0N
4 LAN0_MDI2P
6 LAN0_MDI1N
8 LAN0_MDI3N
10 LAN0_ACTPW
12 LAN0_LINKPW
12
8
