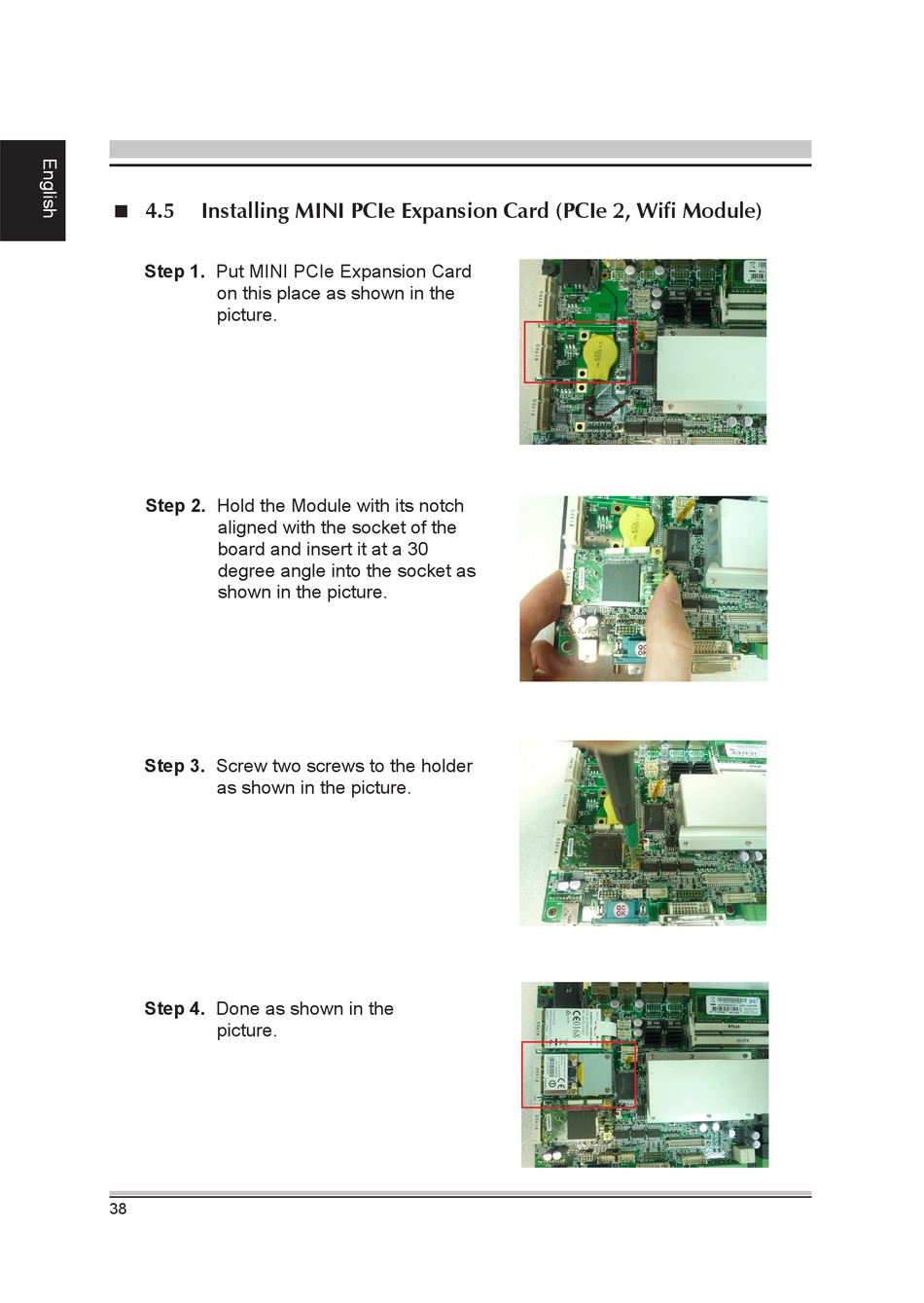

Installing MINI PCIe Expansion Card (PCIe 2, Wifi Module)

Step 1. Put MINI PCIe Expansion Card
on this place as shown in the
picture.
Step 2. Hold the Module with its notch
aligned with the socket of the
board and insert it at a 30
degree angle into the socket as
shown in the picture.
Step 3. Screw two screws to the holder
as shown in the picture.
Step 4. Done as shown in the
picture.
