Installing the mounts
Step 3
Select the area where the plasma will be installed and make sure it can support the weight standards (see warning on page 3). Locate the 16" wood stud centers behind the wall using
a (commercially available) stud finder and mark the center of the studs when found. Set the mounting bracket to the wall and mark the desired height by marking the center of the

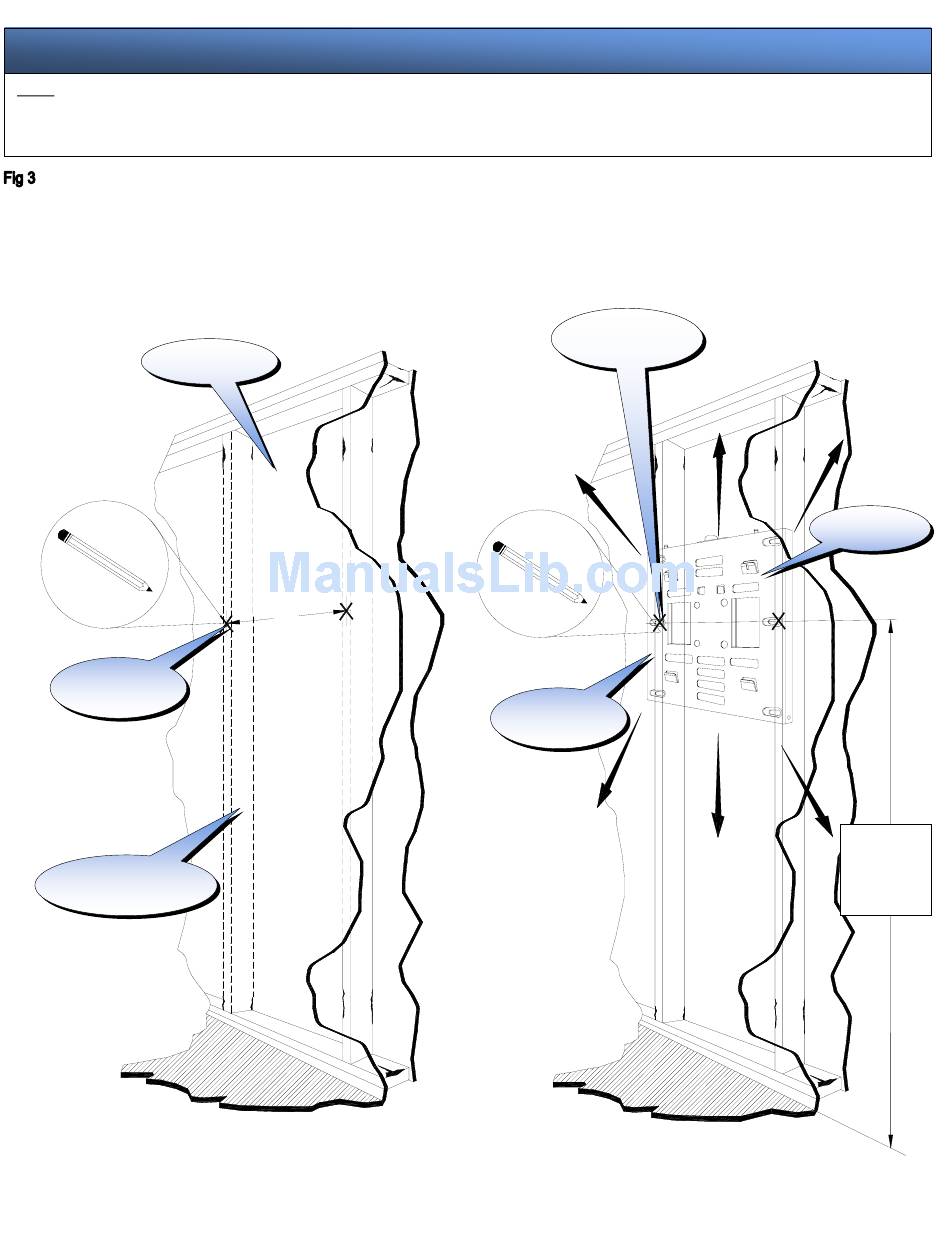

See fig 3
tilt back plate.
Wall structure
Stud centers
marking
Wood studs behind
the wall structure
floor
16"
Desired height
marking
Adjusting the
mount
floor
Tilt back plate
CENTER
OF
VIEWING
HEIGHT
- 7 -
