Page 1: Installation Manual

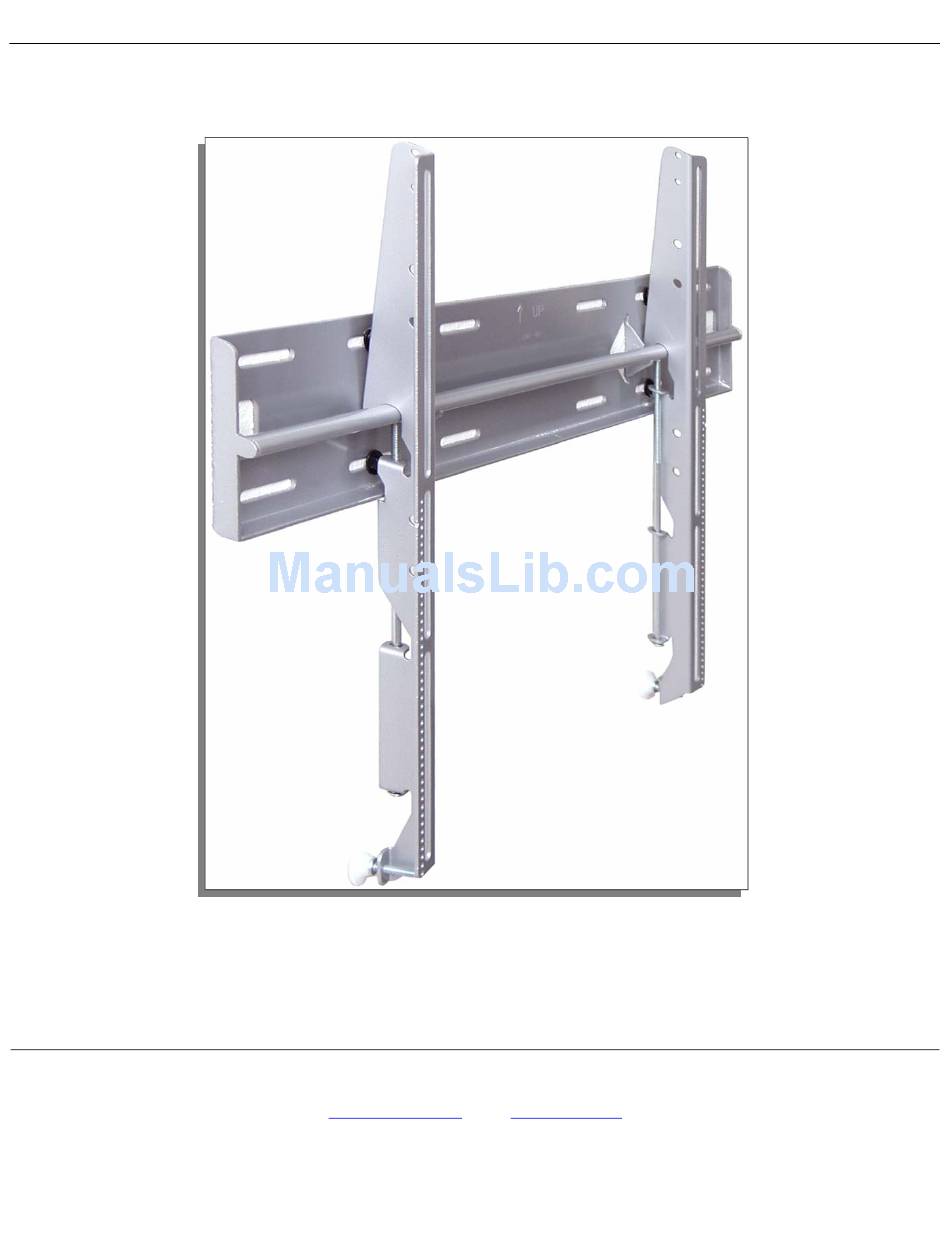

INSTALLATION MANUAL PWM-F110 Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com... - Page 2 PBL-110 Projector Mount Page - 2 - Installation Manual...
-
Page 3: Table Of Contents
Mounting Bracket Installation ...........................- 7 - Wall Stud Location ............................- 10 - Installing the Flat Panel Display ........................- 14 - Technical Specifications ..........................- 16 - Warranty ................................- 17 - Contact Premier Mounts ..........................- 17 - Notes ................................- 18 - Installation Manual Page - 3 -... -
Page 4: Warning Statements

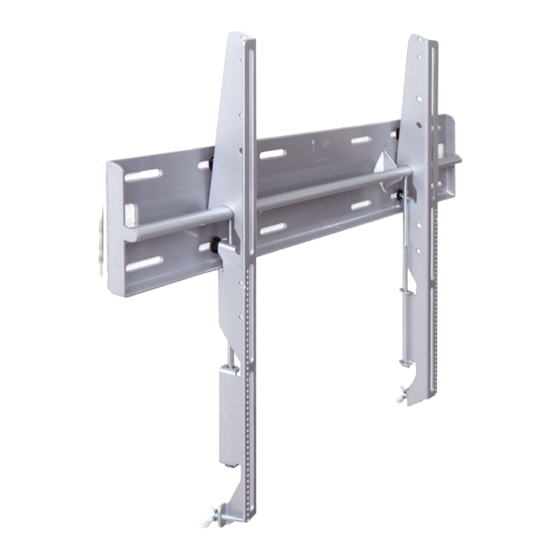

Premier Mounts does not assume liability for injury or damage caused by improper installation, mounting or setup of the plasma television, misuse, modification or natural disasters. - Page 5 Plasma Television. The PWM-F110 plasma wall mount is to be used to attach a plasma television vertically to an appropriate wall. In order to mount the plasma television, it is necessary to attach the enclosed mount using the enclosed hardware to the wall and to use enclosed hardware to attach to the back of the plasma television, and then to attach them together.
-
Page 6: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700 Ext.224. -
Page 7: Mounting Bracket Installation
PWM-F110 Mounting Bracket Installation NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. WARNING: INVERT THE FLAT PANEL AND PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. - Page 8 PWM-F110 If needed, install the nylon spacers to the mounting points on the flat panel (Figure 3). Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 4). Nylon Spacers, If Applicable Mounting Brackets Center Mark Inverted Flat Panel...
- Page 9 PWM-F110 Mounting Bracket Bottom of Flat Panel Center of Viewing Guide Center of Flat Bottom of the Align the Mounting Flat Panel Panel Brackets Figure 5 Figure 6 The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that your flat panel requires.
-
Page 10: Wall Stud Location
PWM-F110 Wall Stud Location Using a (commercially available) wood stud finder, locate four 16" or 24" stud centers behind the wall. Once found, make a pencil marking on the center of the wood studs (Figure 9). NOTE: The wall plates have (3) 16" and (1) 24" mounting slot positions (see Technical Specifications on Page 17) Measure from the floor to the desired viewing height and mark the wall. - Page 11 PWM-F110 To connect the two wall plates, lay them on a flat surface, end to end. Make sure that the holes line up (Figure 11). Insert two (2) M8 x 16mm Hex Head bolts through the two holes and secure with two (2) M8 Hex nuts (Figure 11).
- Page 12 PWM-F110 Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Secure the plate using the eight (8) 5/16" lag bolts and flat washers (supplied) – (Figure 13). CAUTION: Do not over tighten the lag bolts.
- Page 13 PWM-F110 Level and secure the plate to the wall with the reference arrow facing up to the ceiling. 10. Use a minimum diameter of 5/16” x 2 ¼” large concrete wedge anchors (commercially available) – (Figure 14). CAUTION: Do not over tighten the wedge anchors bolts.
-
Page 14: Installing The Flat Panel Display
PWM-F110 Installing the Flat Panel Display WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top hooks from each bracket to the rod from the wall plates (Figure 15). - Page 15 PWM-F110 Make any lateral shift adjustment and lock it by tightening the two (2) ¼”-20 Phillips screws found on the bottom of the mounting brackets. Use the wall bumper to adjust your flat panel. CAUTION: Do not over tighten the ¼”-20 screws to the rods (Figure 16).
-
Page 16: Technical Specifications
PWM-F110 Technical Specifications 28.000 (171.2) 16.000 1.245 (406.4) (31.75) 5.000 3.500 (127) (88.9) 21.790 (553.4) 16.000 (406.4) 16.000 (406.4) 16.000 (406.4) 24.290 (616.97) 1.943 (49.3) 5.000 (127) 21.790 (553.4) Figure 17 Installation Manual Page 19... -
Page 17: Warranty
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. -
Page 18: Notes
PWM-F110 Notes Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com Installation Manual Page - 18 -...
