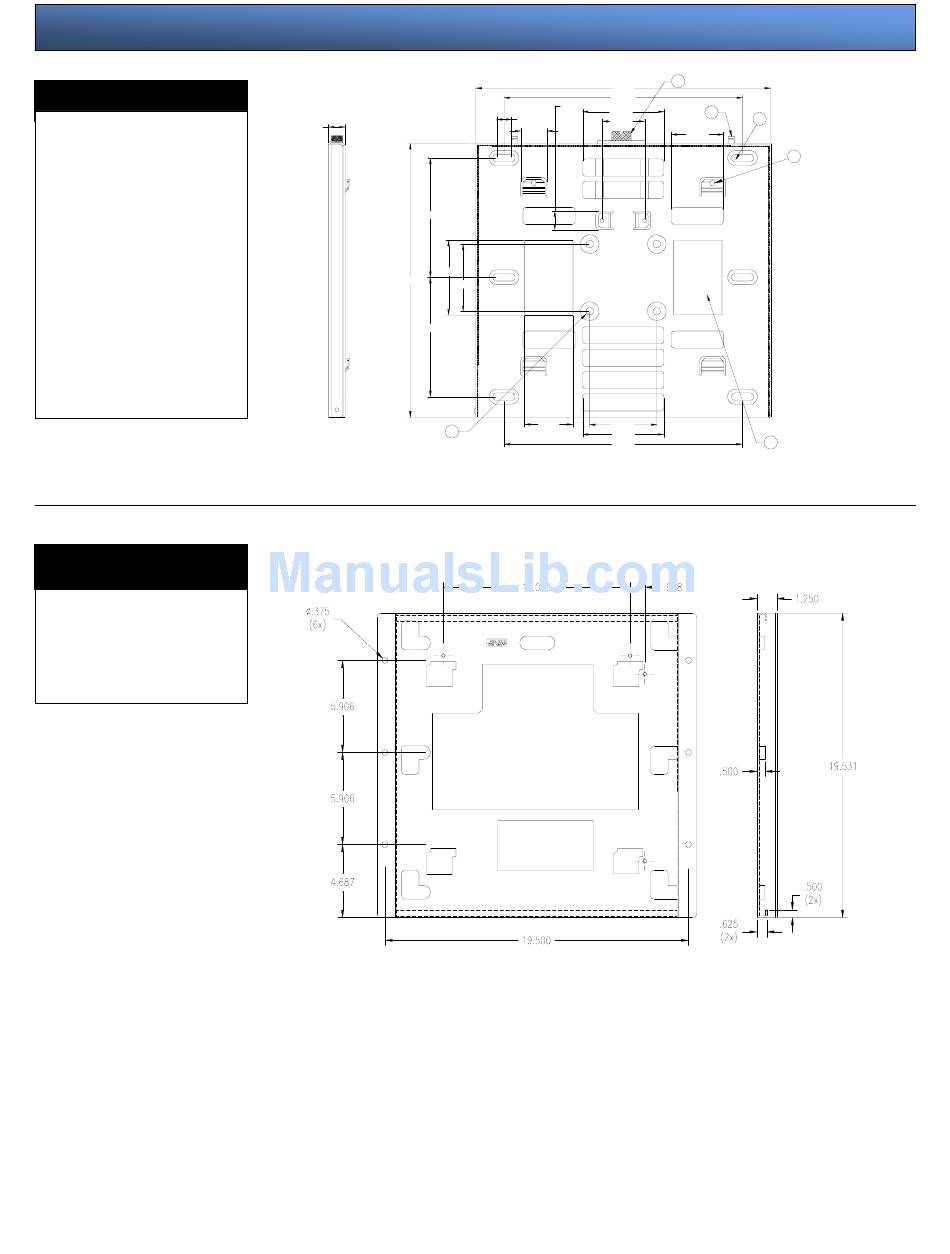

Mount Diagrams

TILT BACK PLATE
PART#:
PSB-TBP
MATERIAL:
12 (GA) CRS
COLOR:
Black powder coat
A.
Lag bolt access slot.
B.
Mounting points (4.5") used on
installations other than wall mounting.
C.
Access hole for power or cables.
D.
Mounting points for additional security
screws.

MOUNTING BRACKET

PART#:
Mounting bracket
MATERIAL:
12 (GA) P & O
COLOR:
Black Powder coat
- 4 -
1.125
8.000
5.000
18.500
4.500
8.000
b
e
19.771
16.000
1.250
5.460
1.000
2.865
1.750
3.500
3.250 4.500
5.460
16.000
F
A
d
c
