Summary of Contents for Premier Mounts PSM-402T
- Page 1 INSTALLATION MANUAL PLASMA DISPLAY MOUNT MODEL 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 VISIT US AT WWW.MOUNTS.COM...
- Page 2 Introduction Plasma display manufacturers are constantly improving their products and introducing new ones. We are committed to keeping up with them. That’s why we maintain close relationships with all major OEMs – to ensure that we have the latest information on new display products coming to market.
- Page 3 The installation instructions should be read, understood and followed to prevent personal injury or property damage. Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected from Contact Premier Mounts for any questions the power outlet. Safety precautions must be taken at all times.

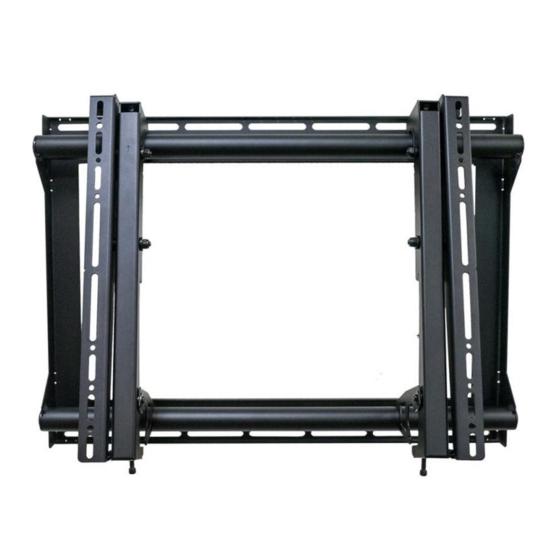

- Page 4 Mount Diagrams Our PSM flat / tilt mounts are designed for wall or ceiling mounting, or it can mate with any of our popular carts, floor stands or wall arms. The ultra slim plasma mount stands off the wall just enough for proper, OEM-specified ventilation, yet keeps the plasma close enough for a clean, seamless look.
- Page 5 Parts List Standard hardware SIZE DESCRIPTION 6 (Tilt) – 4 (Flat) 5/16” Dia Lag bolts PSM series mount Flat / Tilt mount M6 x 12 (mm) Phillip security Used on Tilts, Carts, floor screws stands and ceiling mounts only Installations instructions Bubble level PSM-Series Mounting hardware SIZE...
- Page 6 (Optional) ceiling adapters AST-2446: 1½" (Adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46" (12" - 24", if you cut down), this suspension adapter mates with the single display swivel adapter and 1½" (NTP) pipe. AST-2446/2: 2"...
- Page 7 Installing the PSM-Series mount WARNING Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the plasma display. Step 1 CAUTION : The plasma displays are fragile and heavy.
- Page 8 Securing the universal flat or tilt mounts Step 3 Securing the flat mount CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product. All plasma models vary depending on the manufacturer and some are centered and others are not. Please verify that your plasma mounting points from the back of the chassis are centered before installing the universal back plate.
- Page 9 Step 3 Securing the flat mount To determine the desired viewing height, use the center slot opening in the wall mount as a center reference for the plasma television when mounted. Once the height is determined, use the bubble level to insure that the bracket is level. Next, using a pencil, mark the four (4) lag bolt slot openings on the mounting bracket. Before continuing, confirm the marks are located on the center of the studs.
- Page 10 Tab openings Plasma display Wall structure Wall structure Thank you for choosing PREMIER MOUNTS INC. for your installation needs. If you have any questions please contact PREMIER MOUNTS INC. Information is shown on the front of this page.
