Summary of Contents for Premier Mounts PFDM2

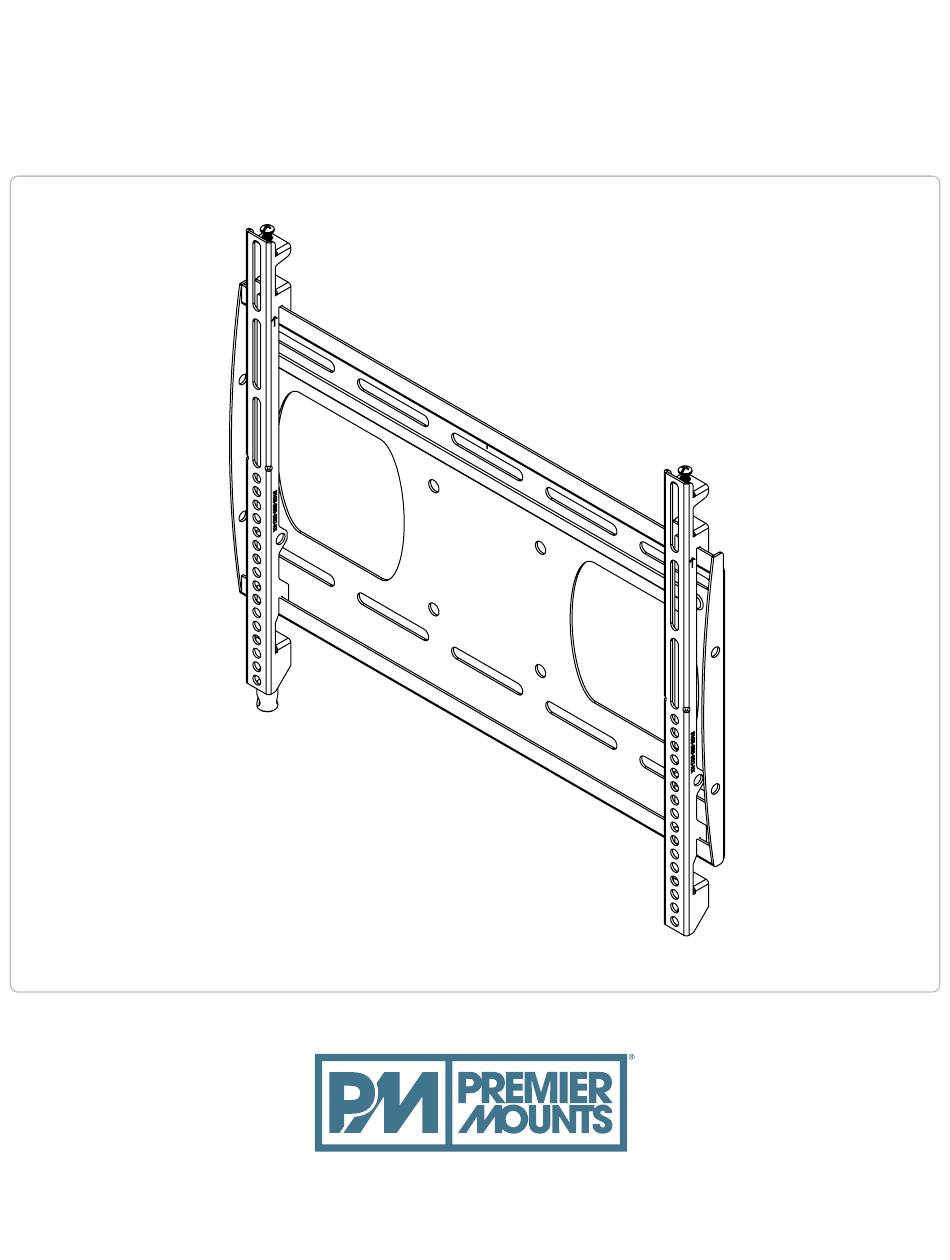

- Page 1 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com 500 W Central Ave, Suite A, Brea, CA 92821 USA...
-
Page 2: Included Components
PFDM2 Maximum Flat Panel Weight: 100 lb. / 45.35 kg. Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included components M8 x 16mm M8 x 25mm M4 x 12mm M4 x 16mm M4 x 25mm... -
Page 3: Wood Stud Installation
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Introduction Directional Mounting Arrow The Directional Mounting Arrow stamped into the top of the PFDM2 wall mount indicates which edge is the top. Mounting Safety Two people are recommended for the installation of this mount. - Page 4 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Two people are recommended for this step; one person to level the wall plate and another person to mark the wall stud location. Place the wall plate against the wall in the desired viewing location.
- Page 5 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Place the wall plate against the wall and align it with the pilot hole. Insert one (1) 5/16” x 3″ lag bolt and one (1) 5/16”...
- Page 6 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Two people are recommended for this step; one person to level the wall plate and another person to drill the pilot holes. Drill a “pilot hole” in the center of each of the marks with a power drill and a 1/4”...
-
Page 7: Steel Stud Installation
PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Steel Stud Installation The supplied M6 steel stud anchors must be used to install your mount to steel studs. Do not use lag bolts or wood screws. - Page 8 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Use a power drill and 7/16” drill bit to drill a hole at each of the marks. Insert a steel stud anchor into each hole. If necessary, lightly tap each steel stud anchor into place with a hammer.
-
Page 9: Concrete Wall Installation
PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Align the wall plate over the steel stud anchor sleeves. Insert a steel stud anchor screw and a washer into each steel stud anchor sleeve. Use a Phillips screwdriver and tighten each steel stud anchor screw until it is just snug. - Page 10 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Drill 4 pilot holes of each mark using a power drill and 3/8˝ drill bit. Drill 3 inches deep. Insert a concrete wedge anchor into each hole.
-
Page 11: Installing The Mounting Bracket
PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Do not overtighten the mounting screws. 5/16” Washer 5/16” X 3” LAG BOLT Installing the Mounting Bracket Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. -
Page 12: Universal Washer Installation
Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Universal Washer Installation Premier Mounts’ Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole Do not place excessive pressure on the back of... - Page 13 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Lock and Leveling Screw Installation Leveling Screw Installation You must install the leveling screws before you panel. The leveling screws consists of two (2) M6 x 75mm screws.
- Page 14 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Ultilizing the Security Barrel - PCB-CSL1 (sold separately) - Padlock (Combination or Keyed; commercially Mounting Tab available) Please read the following directions to install the security barrel: Remove the locking screw from the mounting bracket.
- Page 15 PFDM2 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Attaching the Flat Panel to the Wall Plate This section requires two people. certain that top and bottom hooks of both mounting brackets are securely seated on the upper and lower mounting rails of the wall panel.
- Page 16 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Ultilizing the Security Barrel Your PFDM2 Mount includes one (1) Security Barrel which can provide additional theft deterrence for your PCB-CSL1 Security Cable - Thread the cable through the hole on the security barrel.
- Page 17 What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any related labor costs.
