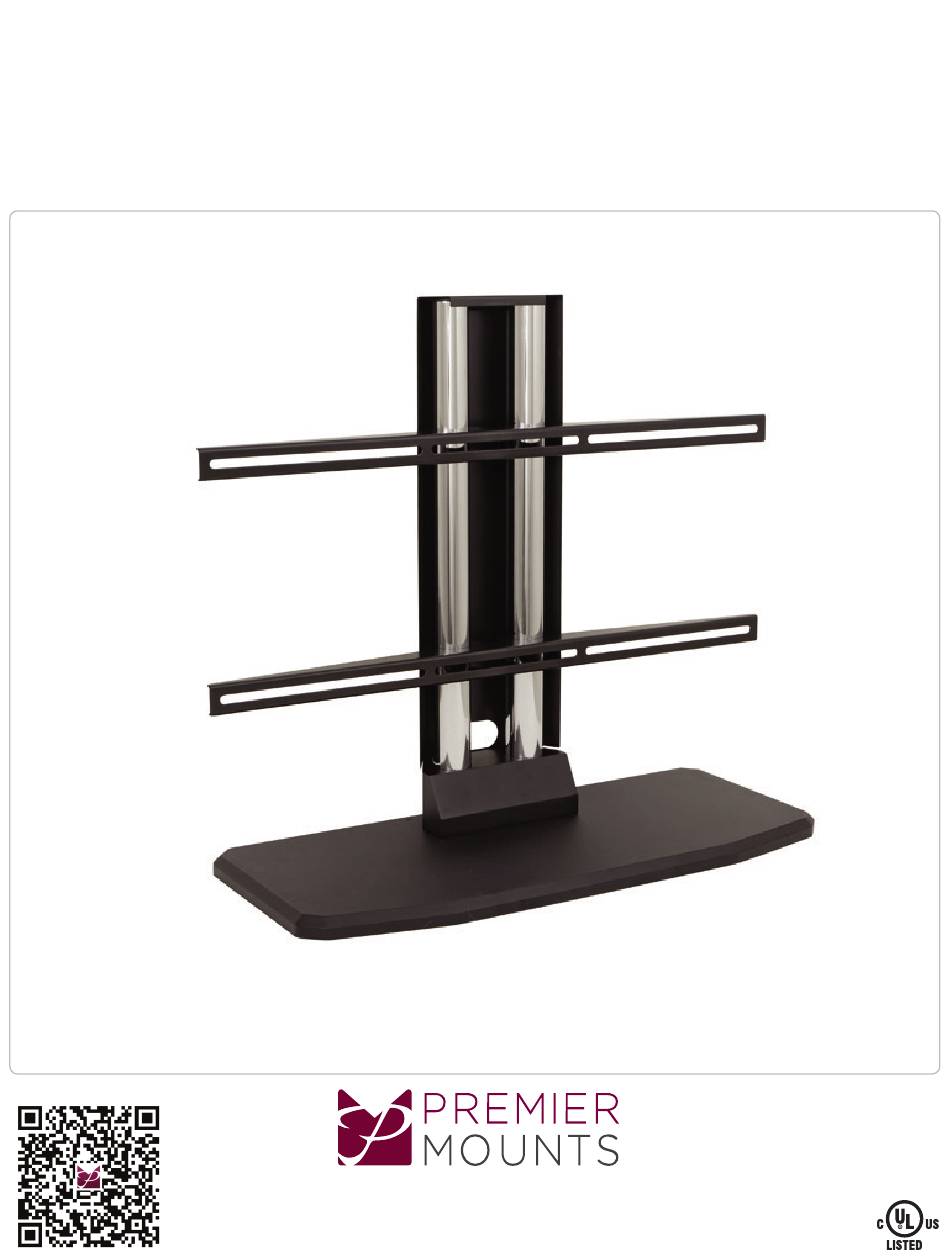

  • Page 1 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...

  • Page 2: Weight Limit

    Weight Limit 160 lbs. Maximum Weight: Warning Statements Safety and Precautions Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and tools for the installations procedure to prevent personal injury or damage to the flat panel display mount.
  • Page 3 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Stand Diagrams Dimensions are in Inches and (mm) 32.000 (812) 30.590 (776.9) 8.271 (210.0) 27.746 (704.7) Ø1.500 1.500 (38.1) (38.1) 1.000 (25.4) PART#: 30.00 PSD-TTS-B (762)

  • Page 4: Included Components

    Tube caps (2) Back cover (1) Back cover (1) PSD-TTS-B Aluminum block (1) Installation Guide Griplates™ (4) Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included components: Tubes (2) Allen key (1) Socket head Tube caps (2)
  • Page 5 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Building The Stand Unpack the components from the box and set them on the floor. Invert and secure the rubber vinyl or rubber feet depending on model to bottom of the base. Secure the aluminum block to the base as shown (Figure 1) to the base by using the five (5) M5 x 30 (mm) Phillip flat head screws (supplied).
  • Page 6 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Insert the tubes into the secured aluminum block. See diagram to set the cable access openings before tightening the set screws. See figure A. Once the poles are fully inserted into the block and set to their proper positions lock the tubes by tightening the two (2) M8 x 10mm set screws.
  • Page 7 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Invert the flat panel display and lay it on a soft and flat surface. Apply the verticle brackets and center the mounting brackets from left to right on the display. Secure the mounting brackets with the hardware and griplates™...
  • Page 8 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Securing The Flat Panel To The Stand Raise the display (see warning on this page) and slide the mounting brackets over the tubes, set the height required and using the Allen wrench secure the height by tightening the four (4) M8 socket head screws.
  • Page 9 PSD-TTS-B Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Fixed Installation (Optional) If securing to a wood table, secure the stand with the two (2) #10 x 1 3/4" wood screws (supplied). NOTE: Longer or shorter wood screws and or mounting hardware depending on your installation environment are (commerically available).
  • Page 10 Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
