GO-5000M-PMCL / GO-5000C-PMCL
12.2.

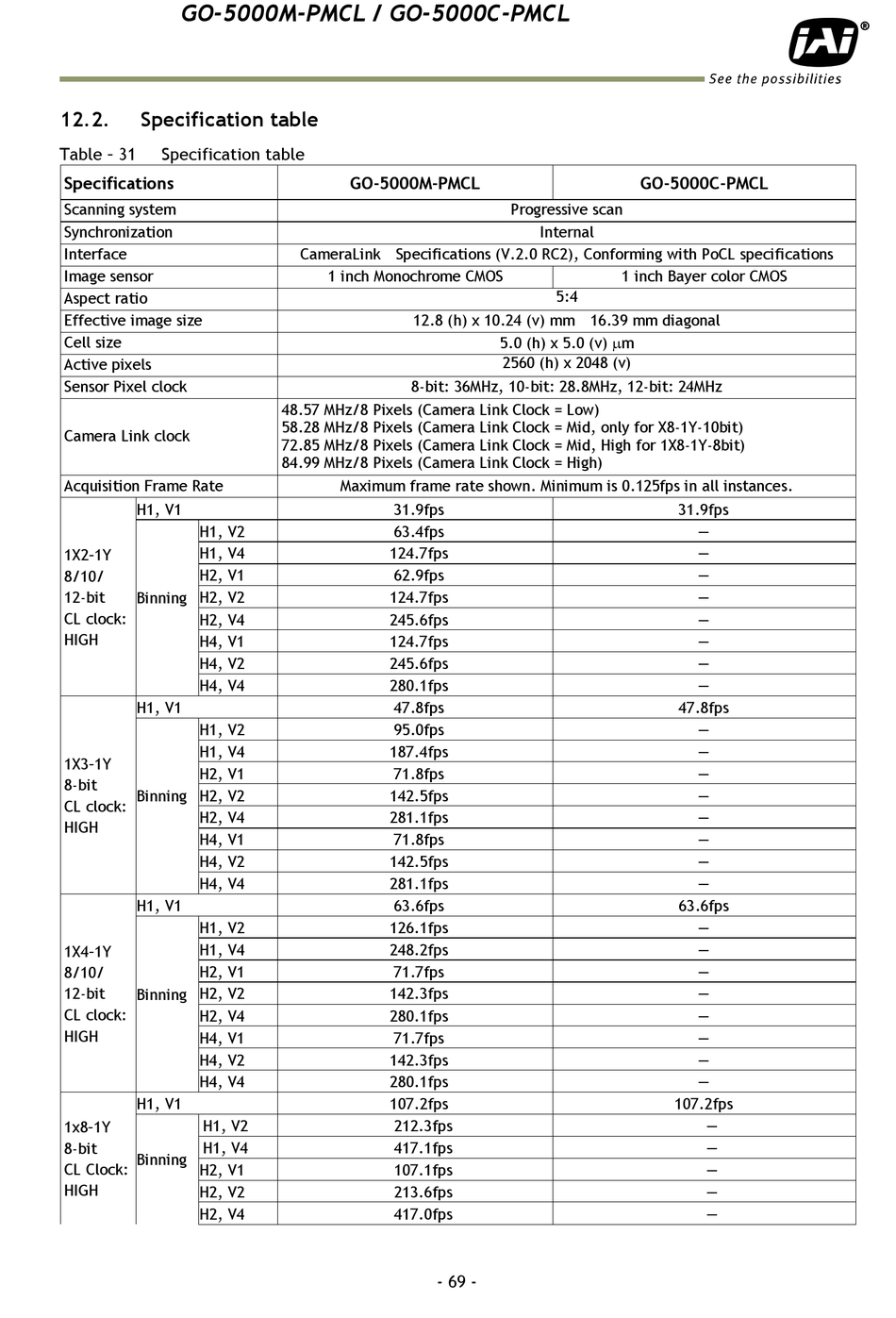

Specification table

Table – 31 Specification table
Specifications
Scanning system
Synchronization
Interface
Image sensor
Aspect ratio
Effective image size
Cell size
Active pixels
Sensor Pixel clock
Camera Link clock
Acquisition Frame Rate
H1, V1
H1, V2
H1, V4
1X2–1Y
H2, V1
8/10/
12-bit Binning H2, V2
CL clock:
H2, V4
HIGH
H4, V1
H4, V2
H4, V4
H1, V1
H1, V2
H1, V4
1X3–1Y
H2, V1
8-bit
Binning H2, V2
CL clock:
H2, V4
HIGH
H4, V1
H4, V2
H4, V4
H1, V1
H1, V2
H1, V4
1X4–1Y
H2, V1
8/10/
12-bit Binning H2, V2
CL clock: H2, V4
HIGH
H4, V1
H4, V2
H4, V4
H1, V1
H1, V2
1x8–1Y
H1, V4
8-bit
Binning
CL Clock:
H2, V1
HIGH
H2, V2
H2, V4
GO-5000M-PMCL
CameraLink Specifications (V.2.0 RC2), Conforming with PoCL specifications
1 inch Monochrome CMOS
12.8 (h) x 10.24 (v) mm 16.39 mm diagonal
8-bit: 36MHz, 10-bit: 28.8MHz, 12-bit: 24MHz
48.57 MHz/8 Pixels (Camera Link Clock = Low)
58.28 MHz/8 Pixels (Camera Link Clock = Mid, only for X8-1Y-10bit)
72.85 MHz/8 Pixels (Camera Link Clock = Mid, High for 1X8-1Y-8bit)
84.99 MHz/8 Pixels (Camera Link Clock = High)
Maximum frame rate shown. Minimum is 0.125fps in all instances.
31.9fps
63.4fps
124.7fps
62.9fps
124.7fps
245.6fps
124.7fps
245.6fps
280.1fps
47.8fps
95.0fps
187.4fps
71.8fps
142.5fps
281.1fps
71.8fps
142.5fps
281.1fps
63.6fps
126.1fps
248.2fps
71.7fps
142.3fps
280.1fps
71.7fps
142.3fps
280.1fps
107.2fps
212.3fps
417.1fps
107.1fps
213.6fps
417.0fps
- 69 -
GO-5000C-PMCL
Progressive scan
Internal
1 inch Bayer color CMOS
5:4
5.0 (h) x 5.0 (v) m
2560 (h) x 2048 (v)
31.9fps
—
—
—
—
—
—
—
—
47.8fps
—
—
—
—
—
—
—
—
63.6fps
—
—
—
—
—
—
—
—
107.2fps
—
—
—
—
—
