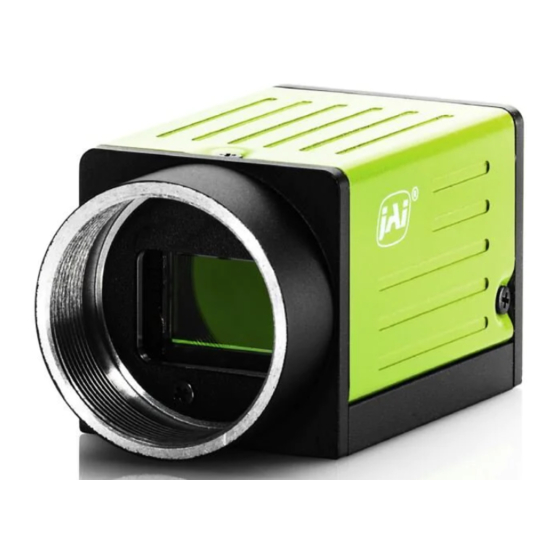

JAI GO-5101M-PGE User Manual

5.1m digital progressive scan monochrome and color camera
Hide thumbs Also See for GO-5101M-PGE:
Table of Contents

Advertisement

Quick Links

Thank you for purchasing this product.
Be sure to read this manual before use.
This manual includes important safety precautions and instructions on
how to operate the unit. Be sure to read this manual to ensure proper
operation.
© 2016 JAI
User Manual
GO-5101M-PGE
GO-5101C-PGE
5.1M Digital Progressive Scan
Monochrome and Color Camera
Document Version: 1.6C
GO-5101-PGE_Ver.1.6C_Feb.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO-5101M-PGE and is the answer not in the manual?

Questions and answers

Related Manuals for JAI GO-5101M-PGE

Summary of Contents for JAI GO-5101M-PGE

  • Page 1 Thank you for purchasing this product. Be sure to read this manual before use. This manual includes important safety precautions and instructions on how to operate the unit. Be sure to read this manual to ensure proper operation. © 2016 JAI...

  • Page 2: Table Of Contents

    GO-5101M-PGE / GO-5101C-PGE Notice ................3 Gamma Function ............34 To use the gamma function ........34 Warranty ...............3 Certifications ..............3 Line Status ..............35 Warning ................3 Defective Pixel Correction Function ......35 Automatic detection ..........35 Usage Precautions ............6 Manual configuration ..........35 Features ................7 Parts Identification ............8 Shading Correction .............36...

  • Page 3: Notice

    The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
  • Page 4 GO-5101M-PGE / GO-5101C-PGE Supplement The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.
  • Page 5 GO-5101M-PGE / GO-5101C-PGE Supplement The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.

  • Page 6: Usage Precautions

    GO-5101M-PGE / GO-5101C-PGE The presence of lighting equipment and television receivers nearby may result in video and audio noise. In such cases, change the cable configurations or placement. Secure the locking screws on the connector manually, and do not use a driver.

  • Page 7: Features

    * As the color camera cannot perform white balance when using 12-bit output, perform white balance on the application. The GO-5101M-PGE and GO-5101C-PGE are both capable of frame rates of up to 22.7 fps (8-bit format) for full 5.1-megapixel output. Even faster frame rates can be achieved when binning is utilized (GO-5101M-PGE only) or when a smaller ROI (region of interest) is specified.

  • Page 8: Parts Identification

    GO-5101M-PGE / GO-5101C-PGE Camera PoE-compatible switching hub AC adapter External trigger Computer ② ⑤ ④ ③ ① ⑥ ⑦ 1 Lens mount (C-mount) Mount a C-mount lens, microscope adapter, etc. here. Before mounting a lens, be sure to refer to “Step 2: Connecting Devices” (page 13) and confirm the ™...
  • Page 9 GO-5101M-PGE / GO-5101C-PGE 2 RJ-45 connector Connect a Gigabit Ethernet compatible LAN cable (Category 5e or higher, Category 6 recommended) here. Input/ Pin No. Description output In/Out MX1+ (DA+) In/Out MX1– (DA–) In/Out MX2+ (DB+) In/Out MX3+ (DC+) In/Out MX3– (DC–) In/Out MX2–...
  • Page 10 GO-5101M-PGE / GO-5101C-PGE 6 DC IN / trigger IN connector (6-pin round) Connect the cable for a power supply (optional) or for DC IN / trigger IN here. HR-10A-7R-6PB (73) (Hirose Electric or equivalent) Input/ Pin No. Signal Description output...
  • Page 11 GO-5101M-PGE / GO-5101C-PGE Recommended external output circuit diagram (reference example) Standard circuit diagram example JAI camera User side Userload User GO Series CAMERA (resistor/lamp/relay/etc) side side OUT f rom camera 330~ TLP109(TPR,E) HIROSE_6Pin_NO.3 or 4 2SC6033 180BS USER POWER2 220BS...

  • Page 12: Preparation Process

    When using the camera for the first time, install the software for configuring and controlling the camera (eBUS SDK for JAI) on the computer. ❖ When you install eBUS SDK for JAI, eBUS SDK for JAI player will also be installed. Download the eBUS SDK for JAI from the JAI website.
  • Page 13 GO-5101M-PGE / GO-5101C-PGE Connect the lens, LAN cable, AC adapter, and other devices. Attach the lens in a clean environment to prevent dust from adhering to the unit. (or direct connection) Camera body 4 Network card 3 LAN cable 1 Lens...
  • Page 14 GO-5101M-PGE / GO-5101C-PGE 2 Direct connection (or MP-43 tripod adapter plate) When mounting the camera directly to a wall or other device, use screws that match the locking screw holes on the camera. (Large: M3, small: M2, depth: 3 mm) Use the supplied screws to attach the tripod adapter plate.

  • Page 15: Step 4: Verifying The Connection Between The Camera And Pc

    GO-5101M-PGE / GO-5101C-PGE Step 4: Verifying the Connection between the Camera and PC Verify whether the camera is properly recognized via eBUS Player for JAI. Connecting the Camera to eBUS Player for JAI. Startup eBUS Player for JAI eBUS Player for JAI startup screen appears.
  • Page 16 GO-5101M-PGE / GO-5101C-PGE Check that the settings of the selected camera are displayed. Push the Device control button. The screen shown below will be displayed. In this window you can adjust various settings of the camera. × Device Control Visibility...

  • Page 17: Step 5: Changing The Camera Settings

    GO-5101M-PGE / GO-5101C-PGE Step 5: Changing the Camera Settings This section explains how to change settings by describing the procedure for changing the output format as an example. Configuring the Output Format Configure the size, position, and pixel format of the images to be acquired.
  • Page 18 GigE NIC or switch. To correct the problem, you can either reduce the [Packet Size] setting to a value less than 1500 in the JAI Control Tool (under [Transport Layer Control] / [Stream Channel Selector], or set your NIC or switch to support “Jumbo...
  • Page 19 GO-5101M-PGE / GO-5101C-PGE Set [Exposure Mode] to [Timed]. ([Timed] is the default setting.) Specify the exposure time in [Exposure Time]. The setting value for the exposure time can only be changed when [Exposure Auto] is set to [Off]. If [Exposure Auto] is set to [Continuous], temporarily set it to [Off] before changing the exposure time.
  • Page 20 GO-5101M-PGE / GO-5101C-PGE ■ Control Without External Triggers When Controlling the Exposure Time Using Specified Exposure Times Configure the settings as follows. Item Setting value / selectable range Trigger Selector (trigger operation) Frame Start Trigger Mode Exposure Mode Timed (control via exposure time) Exposure Time 8 bit: 1 to 7999810 (µs)*...

  • Page 21: Step 6: Adjusting The Image Quality

    Expand [Analog Control], and select the gain you want to configure in [Gain Selector]. • For the GO-5101M-PGE, only [Analog All] (master gain) can be configured. • For the GO-5101C-PGE, [Analog All] (master gain), [Digital Red] (digital R gain), and [Digital Blue] (digital B gain) can be configured individually.

  • Page 22: Step 7: Saving The Settings

    Expand [Analog Control], and select the black level you want to configure in [Black Level Selector]. For the GO-5101M-PGE, only [Digital All] (master black) can be configured. For the GO-5101C-PGE, [Digital All] (master black), [Digital Red] (digital R), and [Digital Blue] (digital B) can be configured individually.
  • Page 23 GO-5101M-PGE / GO-5101C-PGE Note Changes to settings are not saved to the computer (Control Tool). ■ To save user settings Stop image acquisition. Expand [User Set Control], and select the save destination ([User Set1] to [User Set3]) in [User Set Selector].

  • Page 24: Basic Function Matrix

    × × ×   － 2 × 1 × × × ×   － 2 × 2 × × × ×   *1 Operates only on the GO-5101M-PGE *2 Operates only on the GO-5101C-PGE — 24 —...

  • Page 25: Gpio (Digital Input/Output Settings)

    GO-5101M-PGE / GO-5101C-PGE Main Functions GPIO (Digital Input/Output Settings) The camera is equipped with GPIO (general-purpose input/output) functions for generating and using combinations of triggers and other necessary signals within the camera and of signals output from the camera to the system such as those used for lighting equipment control.

  • Page 26: Acquisition Control (Image Acquisition Controls)

    GO-5101M-PGE / GO-5101C-PGE Acquisition Control (Image Acquisition Controls) Perform operations and configure settings related to image acquisition in [Acquisition Control]. The following acquisition modes are available on the camera. Acquisition Mode Description Single Frame Acquire a single frame when the [Acquisition Start] command is executed.

  • Page 27: Maximum Frame Rate Period Formula

    GO-5101M-PGE / GO-5101C-PGE ■ Maximum frame rate period formula During continuous operation ([Frame Start] trigger is [Off] or [Exposure Mode] is [Off]) • Maximum frame rate of sensor Sensor FR = 1 / {H Period × (Height + 34)} • Maximum frame rate by interface Interface FR = 920 ×...

  • Page 28: Exposure Mode

    GO-5101M-PGE / GO-5101C-PGE Pixel Format Binning settings Output area H period Pack value Frame rate (fps) Height Width 8-bit B.V&B.H 1 2056 2464 22.7 BV 2/BH 1 (Mono) 1028 2464 45.4 13.414 µs BV 1/BH 2 (Mono) 2056 1232 35.6 B.V &...

  • Page 29: Shortest Repetition Period For Triggers

    GO-5101M-PGE / GO-5101C-PGE Shortest Repetition Period for Triggers The reciprocal of the maximum frame rate is the time required to output one frame. The shortest repetition periods for triggers cannot be lower than that value. Shortest period Scanning range 8-bit (at 14 μs) 10-bit packed (at 27 μs)

  • Page 30: When [Exposure Mode] Is [Trigger Width]

    GO-5101M-PGE / GO-5101C-PGE • Trigger overlap: Readout Next trigger Next trigger disabled input enabled(*) Trigger Sensor Exposure Exposure Active Readout (Minimum) μ μ 8 bit μ 10 bit packed （Minimum) μ μ 10 bit * If the exposure time is longer than (input trigger cycle - t3), the next trigger input can not be accepted.

  • Page 31: Event Control

    GO-5101M-PGE / GO-5101C-PGE (Minimum) μ μ μ 8 bit μ 10 bit packed （Minimum) μ μ μ 10 bit * If the exposure time is longer than (input trigger cycle - t3), the next trigger input can not be accepted.

  • Page 32: To Use The Event Control Function

    GO-5101M-PGE / GO-5101C-PGE ■ To use the event control function Configure the settings as follows. Item Setting value / selectable range Description Event Selector AcquisitionTrigger, Select the event for which to send notifications. FrameStart, FrameEnd, FVAL Start, FVAL End, ExposureStart,...

  • Page 33: Lut (Lookup Table)

    Red, Gree, Blue LUT Index GO-5101M-PGE: 0 to 256 Select the LUT index to configure. Indexes represent the GO-5101C-PGE: 0 to 256 possible pixel values captured on the sensor, from the lowest value (Index 0) to the highest (Index 256). For example, Index 0 represents a full black pixel and Index 255 represents a full white pixel.

  • Page 34: Lut Values

    GO-5101M-PGE / GO-5101C-PGE ■ LUT values LUT values range from 0 at the lowest to 4095 at the highest. Linear interpolation is used to calculate LUT values between the index points. 4095 Linear interpolation using points to the left and right is used to LUT Value [1] determine values between points.

  • Page 35: Line Status

    If a lens is attached, use the lens cap as a shield, for example. Configure the threshold level for defective pixel detection. Specify the threshold value for the blemishes to be detected using the [JAI Custom Control Blemish] - [Blemish Detect Threshold] setting.

  • Page 36: Shading Correction

    GO-5101M-PGE / GO-5101C-PGE Shading Correction The shading correction is a function that corrects non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment. Using this function allows correction even if top, bottom, left, and right shading is not symmetrical in relation to the center of the screen (H, V).

  • Page 37: Color Shading (Go-5101C-Pge Only)

    GO-5101M-PGE / GO-5101C-PGE ■ Color Shading (GO-5101C-PGE only) R-channel and B-channel properties are adjusted by using the G-channel shading properties as a reference. Pre-correction Post-correction Caution Proper correction is not possible under the following conditions. • If an area with a brightness level that is more than 30% less than the reference level exists within the screen •...

  • Page 38: Roi (Regional Scanning Function)

    GO-5101M-PGE / GO-5101C-PGE ROI (Regional Scanning Function) The ROI (region of interest) function allows you to output images by specifying the areas to scan. ROI Settings Specify the area to scan by specifying width, height, and horizontal/vertical offset values under [Image Format Control].
  • Page 39 GO-5101M-PGE / GO-5101C-PGE Trigger Sequencer mode With this mode, the Sequencer Trigger “pattern” is predetermined by the user. The user defines up to 128 different “indexes.” Each index represents a combination of the following parameters: • ROI (width, height, offset X, and offset Y) •...
  • Page 40 GO-5101M-PGE / GO-5101C-PGE Index structure for Trigger Sequencer Index Selector Exposure Black Frame Next Gain1 Binning1 Index1 ROI1 Level1 Enable1 Count1 Index1 (M/Red/Blue) (H/V) (MUX) Exposure Black Frame Next Gain2 Binning2 Index2 ROI2 Level2 Enable2 Count2 Index2 (M/Red/Blue) (H/V) Current...

  • Page 41: Delayed Readout [Acquisition Transfer Start]

    GO-5101M-PGE / GO-5101C-PGE Command Sequencer Example User-defined Indexes (up to 128) Index1 Index2 Index3 Exposure Exposure Exposure Gain Gain Gain Binning Binning Binning Set to Set to Set to Set to Set to Set to Index1 Index1 Index3 Index1 Index2...

  • Page 42: Alc (Automatic Level Control) Function

    Set [Gain Auto] or [Exposure Auto] or both to [Continuous] mode. Configure the minimum value, maximum value, etc. for AGC and ASC under [JAI Custom Control ALC]. The target video levels for AGC and ASC are configured in [ALC Reference]. For example, when [ALC Reference] is set to 100%, video levels will be maintained at 100% for AGC and ASC.
  • Page 43 GO-5101M-PGE / GO-5101C-PGE Auto gain metering areas (16 areas) High High High High Mid-left Mid-right Right Left Mid-High Mid-High Mid-High Mid-High Left Mid-left Mid-right Right Mid-Low Mid-Low Mid-Low Mid-Low Mid-left Mid-right Right Left Mid-left Mid-right Right Left PTP (Precision Time Protocol) Function The camera can work as the slave for Precision Time Protocol defined in IEEE 1588.

  • Page 44: Counter And Timer Control Function (Counter Support Only)

    GO-5101M-PGE / GO-5101C-PGE Counter and Timer Control Function (counter support only) The counter function counts up change points in the camera’s internal signals using the camera’s internal counter, and reads that information from the host side. This function is useful for verifying error conditions via the count value using internal camera operations.

  • Page 45: Video Process Bypass Mode

    GO-5101M-PGE / GO-5101C-PGE Video Process Bypass Mode The video process bypass mode is a function that bypasses internal video processing on the camera. When bypass is enabled, the sensor output and camera output data can be set to the same bit width.

  • Page 46: Feature Properties

    GO-5101M-PGE / GO-5101C-PGE Settings List Feature Properties : Settings that can only be configured when image acquisition on the camera is stopped. Item Setting range Default value Description Display/configure information related to a) Device Control the device. Device Vendor Name —...
  • Page 47 GO-5101M-PGE / GO-5101C-PGE Item Setting range Default value Description Pixel Format GO-5101M-PGE: GO-5101M-PGE: Set the pixel format. Mono8, Mono8 [Mono12] and [BayerRG12] are enabled GO-5101C-PGE ： Mono10, when [Video Process Bypass] is set to Mono10 Packed, BayerRG8 [On]. Mono12, Mono12 Packed...
  • Page 48 Event Selector AcquisitionTrigger Select the event for which to send Acquisition Trigger, Frame Start, Frame End, notifications. Jai FVAL Start, Jai FVAL End, Exposure Start, Exposure End, OptOut1 Rising Edge, Line2 Rising Edge, OptOut2 Rising Edge, Line3 Rising Edge, OptIn1 Rising Edge,...
  • Page 49 GO-5101M-PGE / GO-5101C-PGE Item Setting range Default value Description Sequencer Offset Y 0 to 2052 Set the vertical offset value for the selected Sequencer Index. Sequencer Gain 100 to 1600 Set the gain for the selected Sequencer Index. Sequencer Gain Red...
  • Page 50 GO-5101M-PGE / GO-5101C-PGE Item Setting range Default value Description Pulse Generator Clock (MHz) 0.018127 to 74.25 0.45 Set the clock used for the pulse generator. This value is calculated using the [Clock Pre-scaler] value as a base. Pulse Generator Selector...
  • Page 51 GO-5101M-PGE / GO-5101C-PGE Item Setting range Default value Description GigE Vision Major Version — Display the GigE version. GigE Vision Minor Version — Is Big Endian — True Display the endianness. Character Set — UTF8 Display the character set. Interface Selector —...
  • Page 52 DeviceSerialNumber, DeviceUserID Chunk Enable True, False False Select whether to output Chunk Data. Configure JAI ALC settings. These n) JAI Custom Control ALC settings are also used for AGC (auto gain control). ALC Reference 10 to 95 Set the target level for ALC. (unit: %)
  • Page 53 Executing AWB, Executing ASC and AWB, Executing AGC and AWB, Executing ASC and AGC and AWB Convergent, Idle o) JAI Custom Control Blemish Configure settings for JAI white blemish correction. Blemish Enable True, False True Enable/disable blemish correction. Blemish Detect —...
  • Page 54 AWB Status Display the AWB status. Too Dark, Timeout, Executing, Trigger Error, Convergent, Idle s) JAI Custom control Configure settings for other JAI functions. feature Misc. Video Process Bypass Mode On, Off Enable/disable VideoProcessBypss mode. False Enhancer Enable True, False Enable/disable Enhancer function.

  • Page 55: Settings

    GO-5101M-PGE / GO-5101C-PGE Settings ™ For details on the setting items, refer to the JAI Control Tool User’s Guide Item Setting range Default value 32-bit Factory Transport Layers Available 32-bit Transport Layers — JAI_GigE_Vision — Transport name — JAI_GigE_Vision Full path to cti file —...
  • Page 56 GO-5101M-PGE / GO-5101C-PGE Item Setting range Default value Support EMail Address — camerasupport@jai.com Logging Properties Enable logging True, False False Use custom properties file True, False False Custom logging properties file path Output log file path Enable GenApi logging True, False...

  • Page 57: Troubleshooting

    GO-5101M-PGE / GO-5101C-PGE Miscellaneous Troubleshooting Check the following before requesting help. If the problem persists, contact your local JAI distributor. ■ Power supply and connections Problem Cause and solution The power / trigger LED remains lit amber and Camera initialization may not be complete due to lack of a does not turn green, even after power is network connection.

  • Page 58: Specifications

    GO-5101M-PGE / GO-5101C-PGE Specifications Item GO-5101M-PGE GO-5101C-PGE Scanning system Progressive scan, 1 tap Synchronization Internal 1000BASE-T Ethernet (GigE Vision 2.0), IEEE 802.3af Interface Image sensor Monochrome CMOS Bayer color CMOS Image size (effective image) 8.5 (H) × 7.09 (V), 11.1 mm diagonal Pixel size 3.45 (H) ×...
  • Page 59 GO-5101M-PGE / GO-5101C-PGE Item GO-5101M-PGE GO-5101C-PGE Black level Default level 33LSB (during 10-bit output) adjustment Video level adjustment range 0 to 100 (during 10-bit output) Adjustment range –33LSB to +64LSB against reference level (during 10-bit output) Resolution adjustment 1 STEP = 0.25LSB...

  • Page 60: Frame Rate Reference

    GO-5101M-PGE / GO-5101C-PGE Frame Rate Reference (Theoretical value: decimal values are dropped, during Unpacked) Resolution Frame rate Pixel count ROI/Binning Pixel size(μm) Image size (screen size) 8 / 10 / 12 bit 5.1 MP 2464 × 2056 Full pixel 3.45 × 3.45 2/3"...

  • Page 61: Dimensions

    GO-5101M-PGE / GO-5101C-PGE GO-5100C Sensitivity GO-5101C-PGE 1000 wave length (nm) Dimensions 41.5 C Mount 12.5 23.7 4-M2 Depth3 3-M3 Depth3 Dimensional tolerance: ±0.3 mm Unit: mm — 61 —...

  • Page 62: User's Record

    Serial No. …………….. Firmware version. …………….. For camera revision history, please contact your local JAI distributor. Trademarks • GigE Vision is a registered trademark of AIA (Automated Imaging Association). • Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
  • Page 63 GO-5101M-PGE / GO-5101C-PGE Index 6-pin round 10 JAI Camera Control Tool 12 JAI SDK 12 AC adapter 14 Acquisition Control 26 acquisition modes 26 LAN cable 14 ACT LED 9 LED 9 Adjusting the Black Level 22 Lens 13 Adjusting the Gain 21...
  • Page 64 LUT index revised, China RoHs certificate updated Sep. 2016 Maximum frame rate period formula changed Mar. 2019 Add KC, actual exposure time eBUS SDK for JAI and others. Jul. 2019 Add Note, binning mode cannot be used in video process bypass mode. Feb. 2020...
